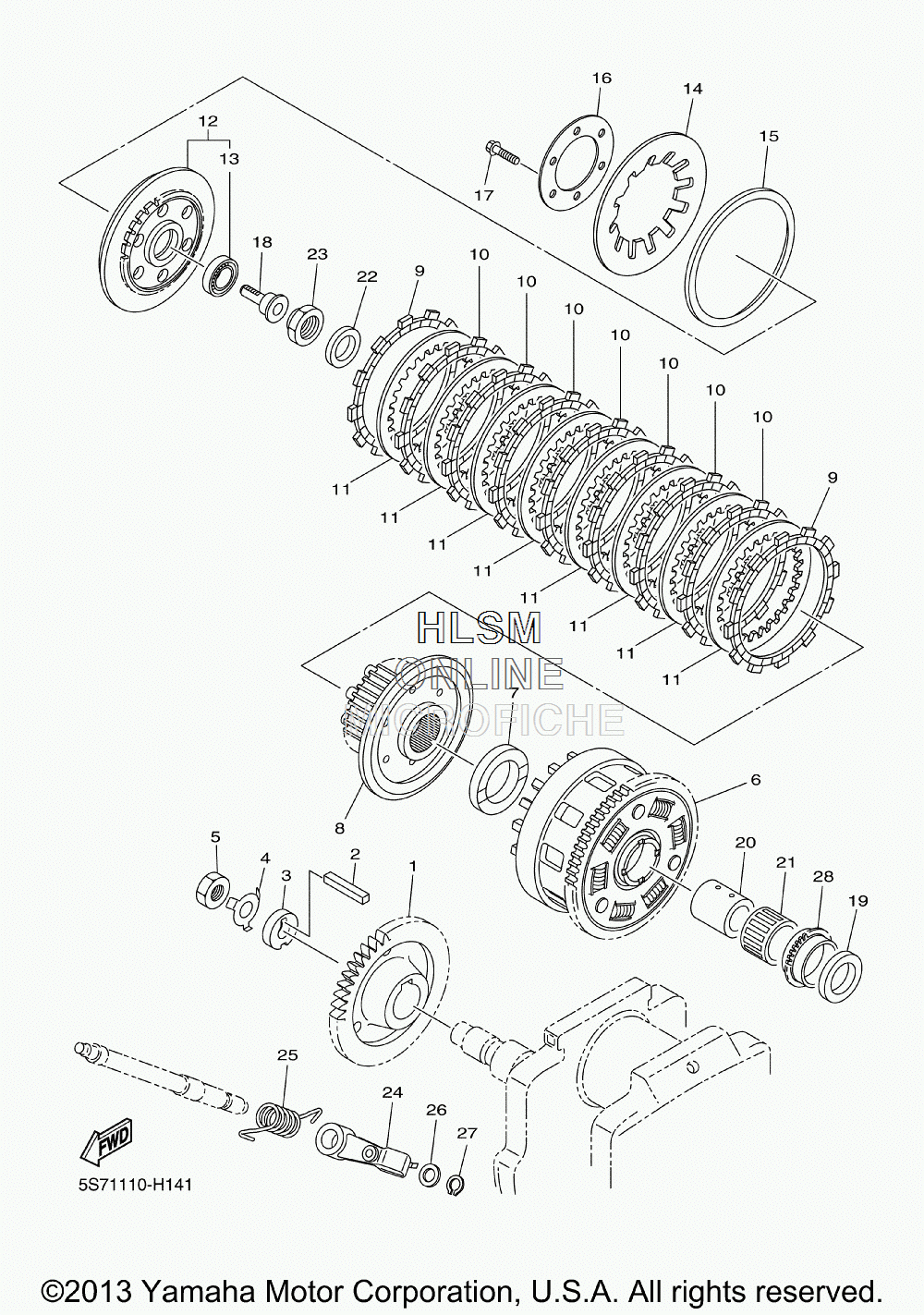

CLUTCH для Yamaha V STAR 950 TOURER - 2014 года выпуска
-
№АртикулНазвание
-
15S7-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
24WM-16193-00-00 KEY, FEATHERKEY, FEATHER
-
33D8-16181-10-00 SPACER 1SPACER 1
-
490215-18003-00 WASHER, LOCKWASHER, LOCK
-
590170-18008-00 NUTNUT
-
65S7-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
75YU-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
83D8-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
9341-16321-20-00 PLATE, FRICTIONPLATE, FRICTION
-
105JW-16321-10-00 PLATE, FRICTIONPLATE, FRICTION
-
112H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
123D8-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
1393306-00304-00 ...BEARING...BEARING
-
145S7-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
1536Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
161TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
1797002-06025-00 BOLTBOLT
-
184XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
193D8-16164-10-00 PLATE, THRUST 2PLATE, THRUST 2
-
2090387-26006-00 COLLARCOLLAR
-
2193310-33560-00 BEARINGBEARING
-
2290208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2390179-20007-00 NUTNUT
-
245S7-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
2590508-18040-00 SPRING, TORSIONSPRING, TORSION
-
2690201-10029-00 WASHER, PLATEWASHER, PLATE
-
2799009-10400-00 CIRCLIPCIRCLIP
-
283D8-13354-10-00 SPROCKET, DRIVESPROCKET, DRIVE
