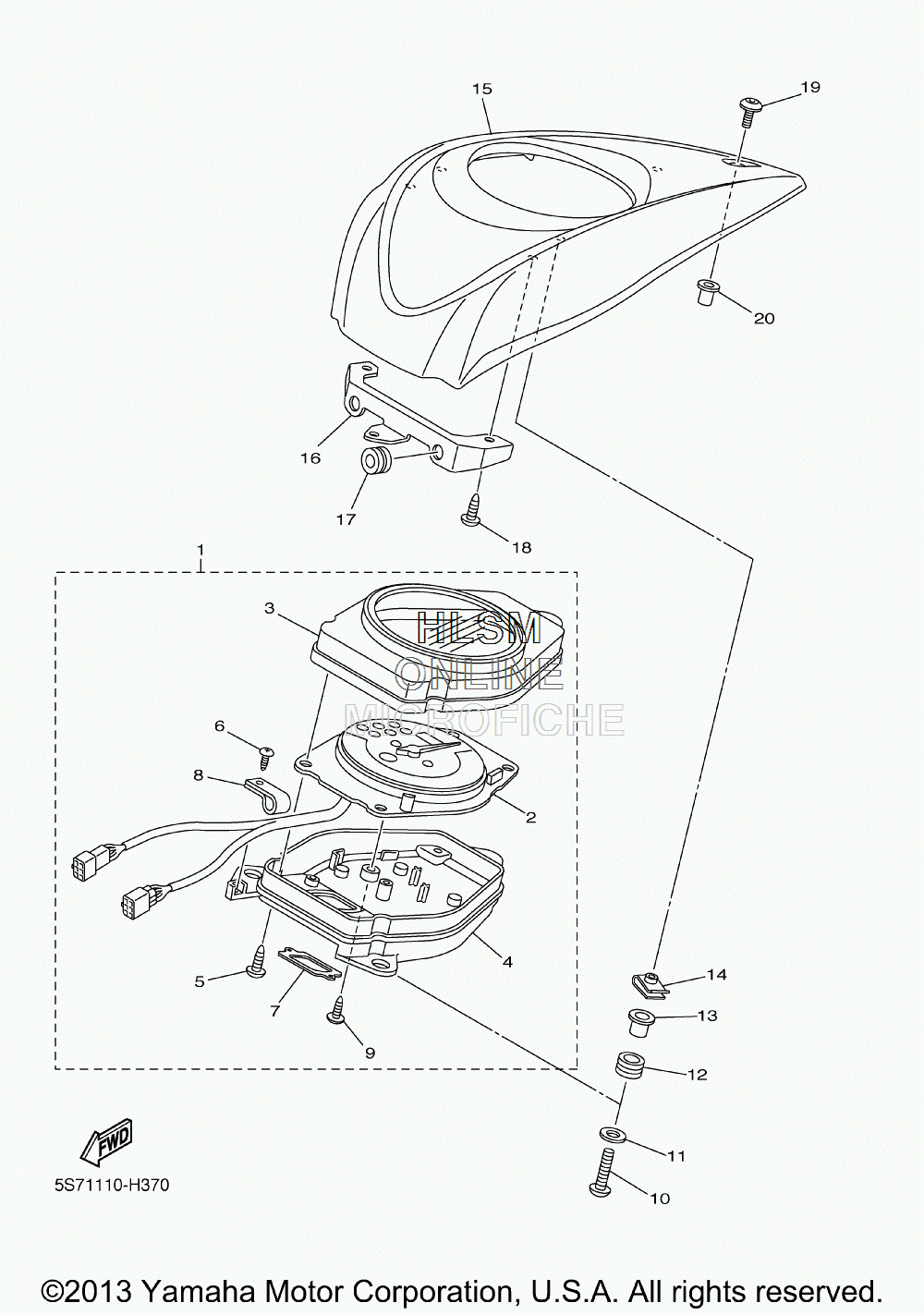

INSTRUMENT PANEL для Yamaha V STAR 950 TOURER - 2014 года выпуска
-
№АртикулНазвание
-
15S7-83500-40-00 METER ASSY (MPH)METER ASSY (MPH)
-
25S7-83510-00-00 ...SPEEDOMETER ASSY...SPEEDOMETER ASSY
-
35VN-8353E-20-00 ...CASE, METER UPPER...CASE, METER UPPER
-
45S7-8353F-40-00 ...CASE, METER LOWER...CASE, METER LOWER
-
597707-40016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
690164-04023-00 ...SCREW, TAPPING...SCREW, TAPPING
-
74WM-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
85EL-8357E-00-00 ...CLAMP...CLAMP
-
997707-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1098502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1190201-05036-00 WASHER, PLATEWASHER, PLATE
-
124WM-83513-00-00 DAMPERDAMPER
-
1390387-050T5-00 COLLARCOLLAR
-
1490183-050A6-00 NUT, SPRINGNUT, SPRING
-
155S7-83559-01-00 COVER, METERCOVER, METER
-
165S7-24216-00-00 STAYSTAY
-
1790480-15235-00 GROMMETGROMMET
-
1897702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
1990111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2090179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
