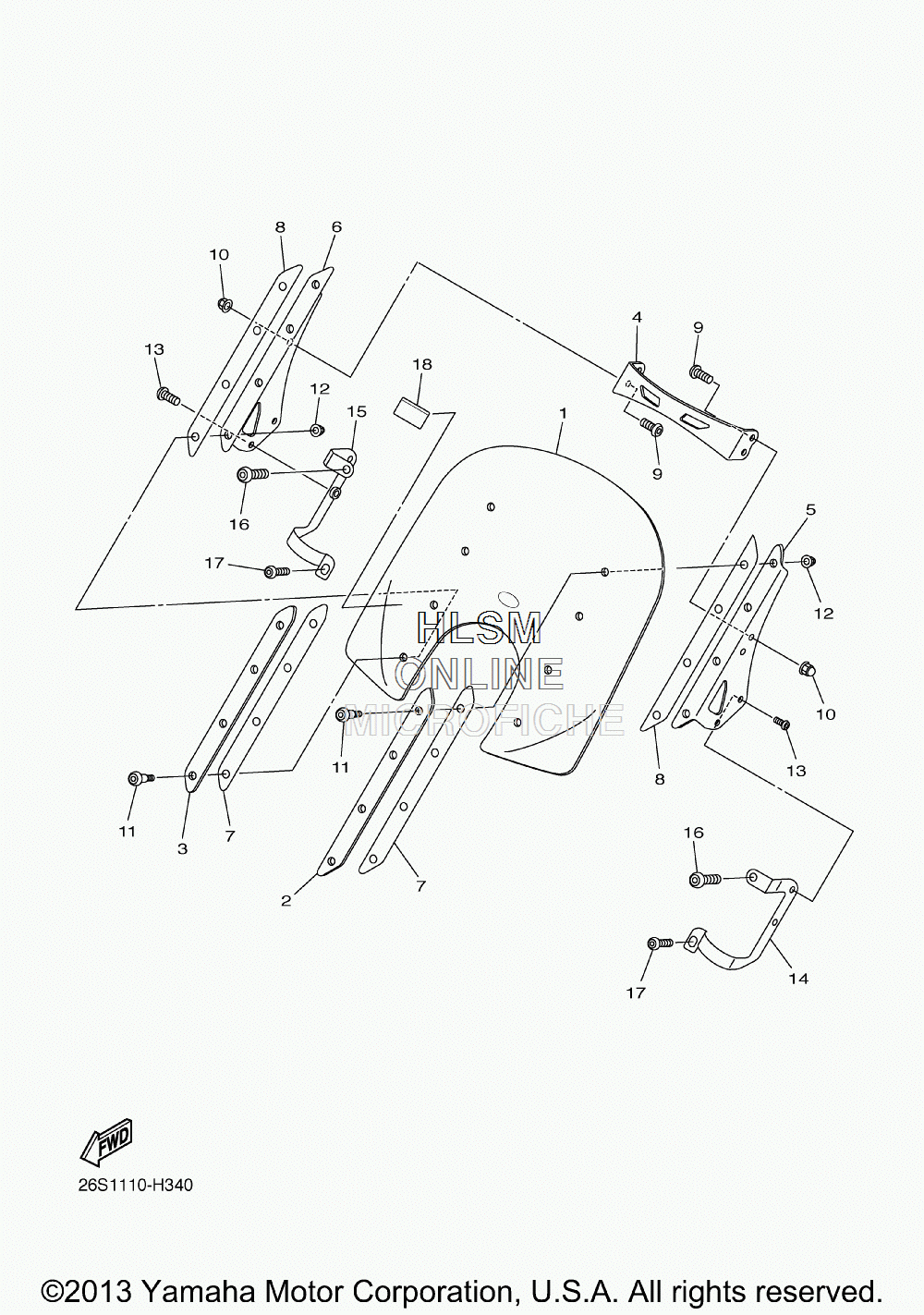

COWLING для Yamaha V STAR 950 TOURER - 2014 года выпуска
-
№АртикулНазвание
-
15S6-2837U-20-00 SCREENSCREEN
-
25S6-28396-00-00 PLATE 1PLATE 1
-
35S6-28397-00-00 PLATE 2PLATE 2
-
45S6-28361-00-00 PLATE, FRONTPLATE, FRONT
-
55S6-2836A-00-00 BRACKET 1BRACKET 1
-
65S6-2836E-00-00 BRACKET 2BRACKET 2
-
75S6-2837J-00-00 DAMPER 5DAMPER 5
-
85S6-2837K-00-00 DAMPER 6DAMPER 6
-
990111-06054-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090176-06041-00 NUT, CROWNNUT, CROWN
-
111D6-28333-00-00 BOLTBOLT
-
1290176-05051-00 NUT, CROWNNUT, CROWN
-
1392014-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1426S-28356-00-00 STAY 1STAY 1
-
1526S-28357-00-00 STAY 2STAY 2
-
1690111-10006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1792012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
184B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
