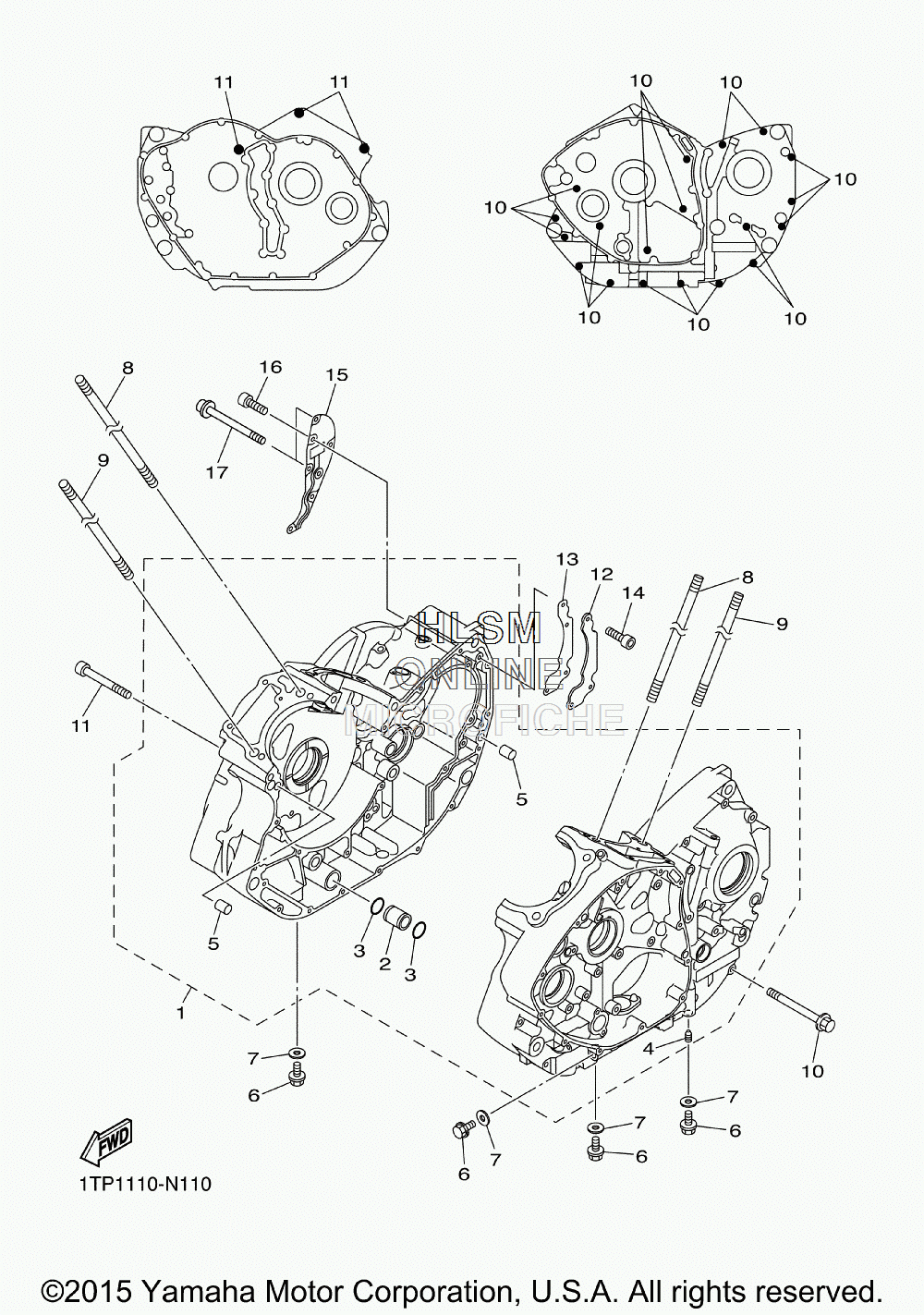

CRANKCASE для Yamaha BOLT C SPEC - 2015 года выпуска
-
№АртикулНазвание
-
15S7-15100-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
23D8-15154-00-00 ...NOZZLE ASSY., 2...NOZZLE ASSY., 2
-
393210-18319-00 ...O-RING...O-RING
-
42H7-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
599530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
695022-10016-00 BOLT, FLANGEBOLT, FLANGE
-
790430-10171-00 GASKETGASKET
-
890116-12012-00 BOLT, STUDBOLT, STUD
-
990116-12011-00 BOLT, STUDBOLT, STUD
-
1090105-06144-00 BOLT, FLANGEBOLT, FLANGE
-
1190110-10030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
123D8-15358-00-00 SEPARATOR, OILSEPARATOR, OIL
-
133D8-15353-00-00 GASKET, DRAINGASKET, DRAIN
-
1490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
153D8-15368-00-00 SEPARATOR, OILSEPARATOR, OIL
-
1690110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790110-06270-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
