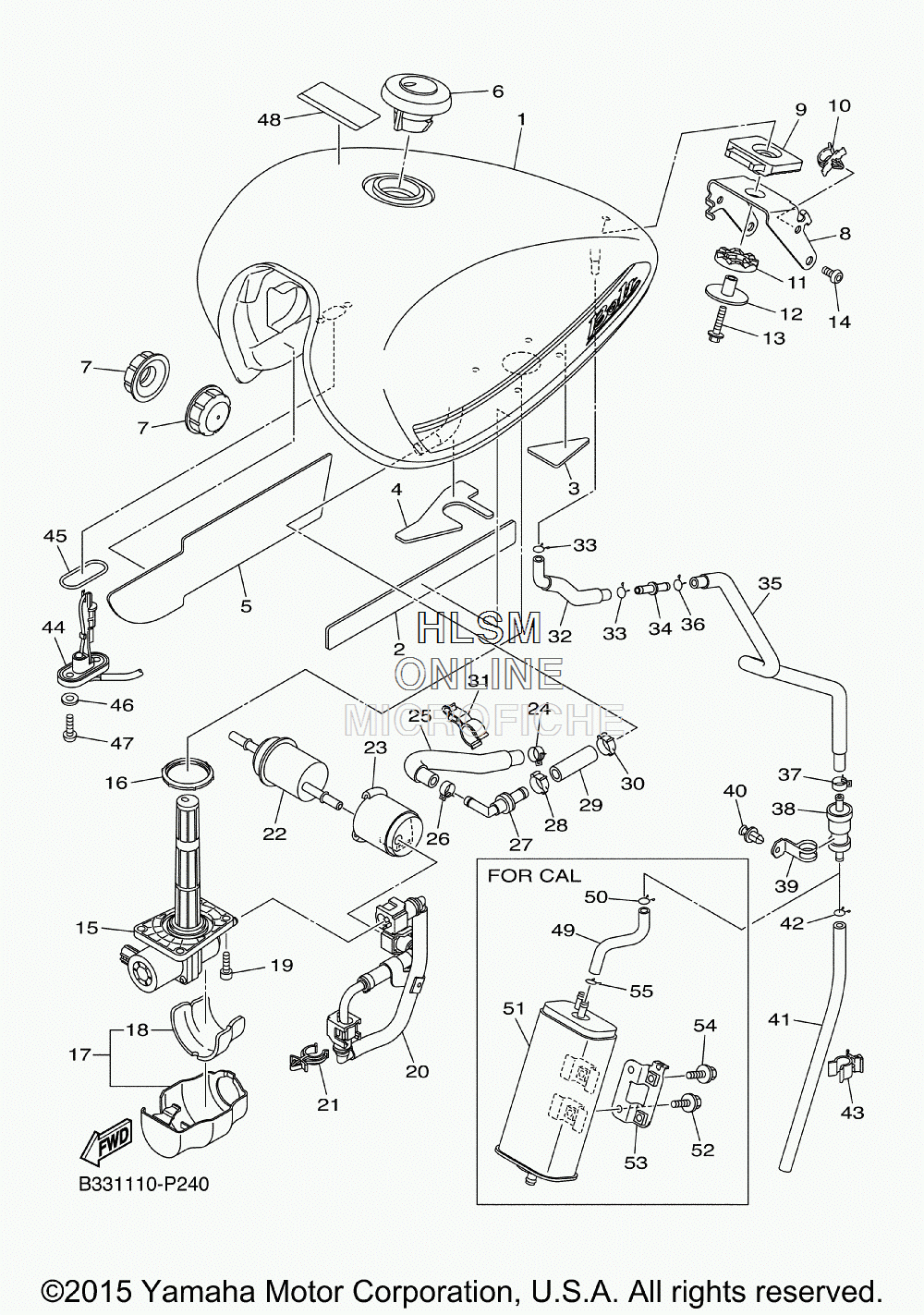

FUEL TANK для Yamaha BOLT C SPEC - 2015 года выпуска
-
№АртикулНазвание
-
11TP-Y2410-00-X4 FUEL TANK COMP. (FOR DNGM3)FUEL TANK COMP. (FOR DNGM3)
-
11TP-Y2410-00-X5 FUEL TANK COMP. (FOR S3)FUEL TANK COMP. (FOR S3)
-
21TP-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
31TP-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
41TP-2414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
-
51TP-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
64NK-24602-20-00 CAP ASSYCAP ASSY
-
71TP-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
81TP-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
91TP-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
1090464-14001-00 CLAMPCLAMP
-
111TP-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1290387-06177-00 COLLARCOLLAR
-
1395812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1492012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
151TP-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
161TP-24486-00-00 O-RINGO-RING
-
171TP-24474-00-00 COVERCOVER
-
181TP-2414N-00-00 ...DAMPER, PLATE 4...DAMPER, PLATE 4
-
1991312-05016-00 BOLTBOLT
-
201TP-24330-00-00 FUEL PIPE ASSY. 2FUEL PIPE ASSY. 2
-
2190464-16240-00 CLAMPCLAMP
-
221TP-13915-00-00 FILTERFILTER
-
231TP-24398-00-00 BAND 1BAND 1
-
2490467-12003-00 CLIPCLIP
-
251TP-24315-00-00 PIPE 5PIPE 5
-
2690467-12003-00 CLIPCLIP
-
271TP-14860-00-00 CHECK VALVE ASSYCHECK VALVE ASSY
-
2890467-150A6-00 CLIPCLIP
-
291TP-24314-00-00 PIPE 4PIPE 4
-
3090467-150A6-00 CLIPCLIP
-
3190464-17009-00 CLAMPCLAMP
-
321TP-24313-00-00 PIPE 3PIPE 3
-
3390467-09103-00 CLIPCLIP
-
344XY-14568-00-00 JOINTJOINT
-
351TP-24316-00-00 PIPE 6PIPE 6
-
3690467-09103-00 CLIPCLIP
-
3790467-09001-00 CLIPCLIP
-
385PX-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
391TP-24136-00-00 CLAMP 2CLAMP 2
-
4090269-05005-00 RIVETRIVET
-
4190445-11730-00 HOSE (L280)HOSE (L280)
-
4290467-09103-00 CLIPCLIP
-
4390464-12015-00 CLAMPCLAMP
-
441TP-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
4542X-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
4690202-05193-00 WASHER, PLATEWASHER, PLATE
-
4790149-06108-00 SCREWSCREW
-
481TP-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
491TP-2486A-00-00 PIPE 1 (CALIF ONLY)PIPE 1 (CALIF ONLY)
-
5090467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
515PX-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
5295802-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
531TP-2413X-00-00 PLATE (CALIF ONLY)PLATE (CALIF ONLY)
-
5495827-06014-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
5590467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
