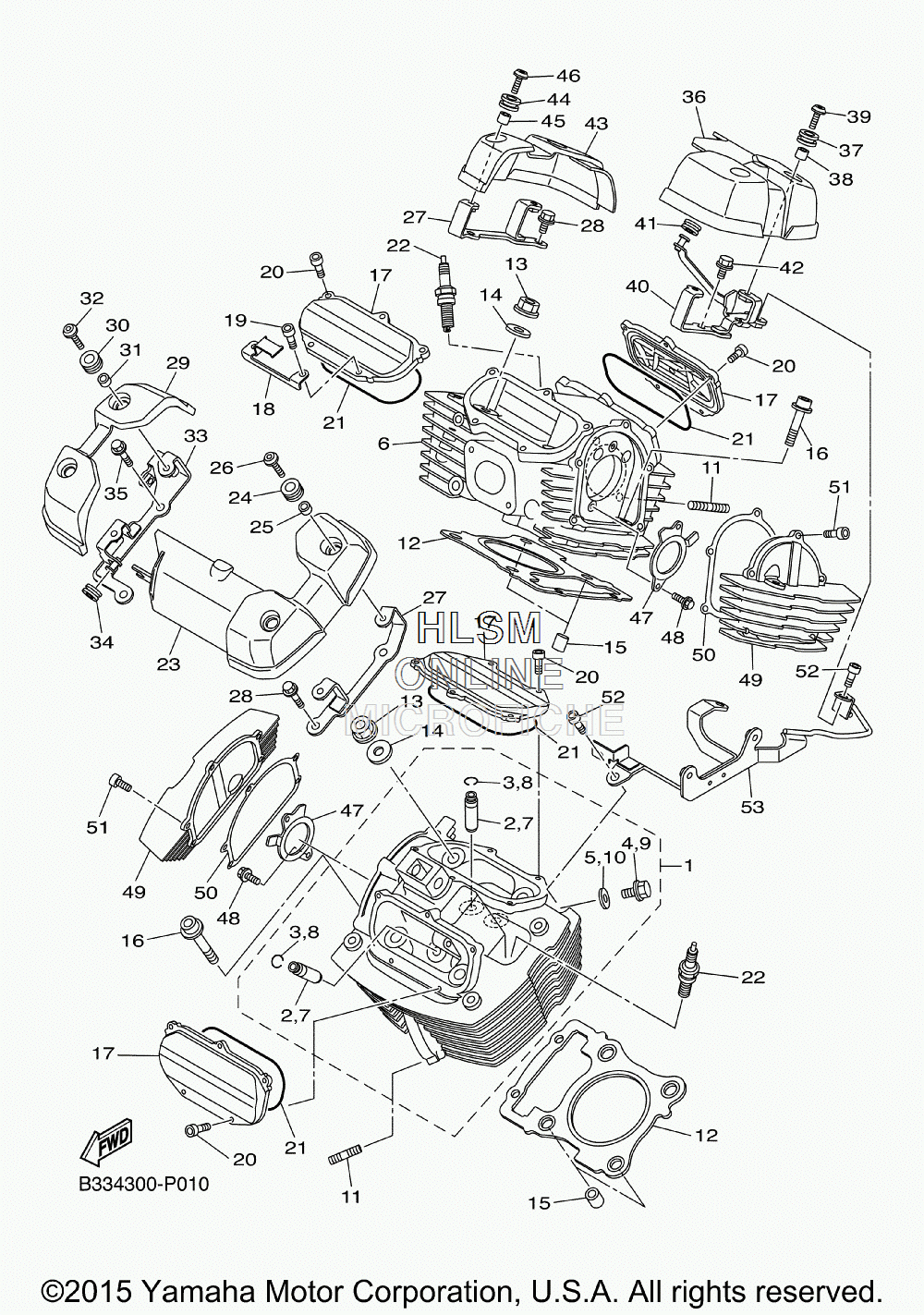

CYLINDER HEAD для Yamaha BOLT C SPEC - 2015 года выпуска
-
№АртикулНазвание
-
15S7-11101-18-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24G0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
393440-10085-00 ...CIRCLIP...CIRCLIP
-
495022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-08119-00 ...GASKET...GASKET
-
65S7-11101-38-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
74G0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
893440-10085-00 ...CIRCLIP...CIRCLIP
-
995022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1090430-08119-00 ...GASKET...GASKET
-
1195612-08625-00 BOLT, STUDBOLT, STUD
-
125S7-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1390179-12004-00 NUTNUT
-
1490201-12025-00 WASHER, PLATEWASHER, PLATE
-
1591815-16017-00 PIN, DOWELPIN, DOWEL
-
1690110-08065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175S7-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
181TP-1114F-00-00 PLATE 4PLATE 4
-
1990110-06064-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2091312-06016-00 BOLTBOLT
-
215S7-11196-00-00 GASKET, CYLINDER HEAD SIDEGASKET, CYLINDER HEAD SIDE
-
2294701-00420-00 PLUG, SPARK (NGK CPR7EA)PLUG, SPARK (NGK CPR7EA)
-
231TP-1111M-00-00 COVER 1COVER 1
-
2490480-13022-00 GROMMETGROMMET
-
2590387-06207-00 COLLARCOLLAR
-
2690111-06130-00 BOLT, HEX.SOCKET BUTTONBOLT, HEX.SOCKET BUTTON
-
271TP-1111F-00-00 PLATEPLATE
-
2895822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
291TP-1111N-00-00 COVER 2COVER 2
-
3090480-13022-00 GROMMETGROMMET
-
3190387-06207-00 COLLARCOLLAR
-
3290111-06130-00 BOLT, HEX.SOCKET BUTTONBOLT, HEX.SOCKET BUTTON
-
331TP-1112F-00-00 PLATE 2PLATE 2
-
3490480-10627-00 GROMMETGROMMET
-
3595822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
361TP-1111P-00-00 COVER 3COVER 3
-
3790480-13022-00 GROMMETGROMMET
-
3890387-06207-00 COLLARCOLLAR
-
3990111-06130-00 BOLT, HEX.SOCKET BUTTONBOLT, HEX.SOCKET BUTTON
-
401TP-1113F-00-00 PLATE 3PLATE 3
-
4190480-10627-00 GROMMETGROMMET
-
4295822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
431TP-1111R-00-00 COVER 4COVER 4
-
4490480-13022-00 GROMMETGROMMET
-
4590387-06207-00 COLLARCOLLAR
-
4690111-06130-00 BOLT, HEX.SOCKET BUTTONBOLT, HEX.SOCKET BUTTON
-
475S7-1111F-00-00 PLATEPLATE
-
4895022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
495S7-11185-00-00 COVER, CYLINDER HEAD SIDE 3COVER, CYLINDER HEAD SIDE 3
-
505S7-11195-00-00 GASKETGASKET
-
5190110-06274-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5291312-08016-00 BOLTBOLT
-
53B33-11152-00-00 BRACKET, CYLINDER HEAD COVERBRACKET, CYLINDER HEAD COVER
