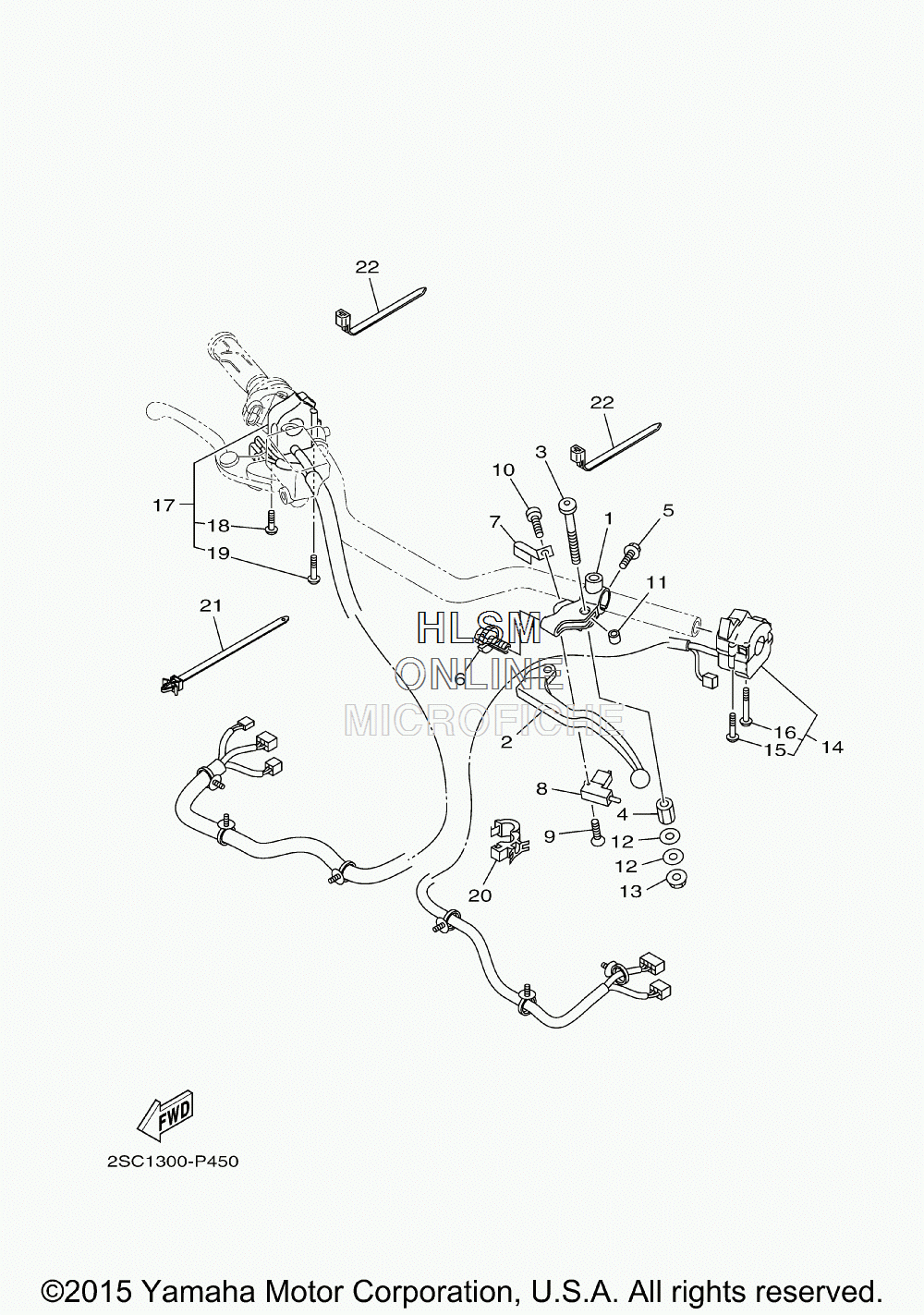

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FJ-09 - 2015 года выпуска
-
№АртикулНазвание
-
11B3-82911-00-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
25EB-83912-03-00 LEVER 1LEVER 1
-
32PP-83945-00-00 BOLT, LEVERBOLT, LEVER
-
490170-06424-00 NUTNUT
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65LV-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
74XV-83929-00-00 PLATE, SPRINGPLATE, SPRING
-
83YX-82917-01-00 SWITCHSWITCH
-
998704-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1098507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
115JJ-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1290201-06079-00 WASHER, PLATEWASHER, PLATE
-
1395607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
142PP-83969-00-00 SWITCH, HANDLE 5SWITCH, HANDLE 5
-
1598507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1698507-05055-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
172PP-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1898507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1998507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2090464-25217-00 CLAMPCLAMP
-
2190464-12036-00 CLAMPCLAMP
-
2290464-13073-00 CLAMPCLAMP
