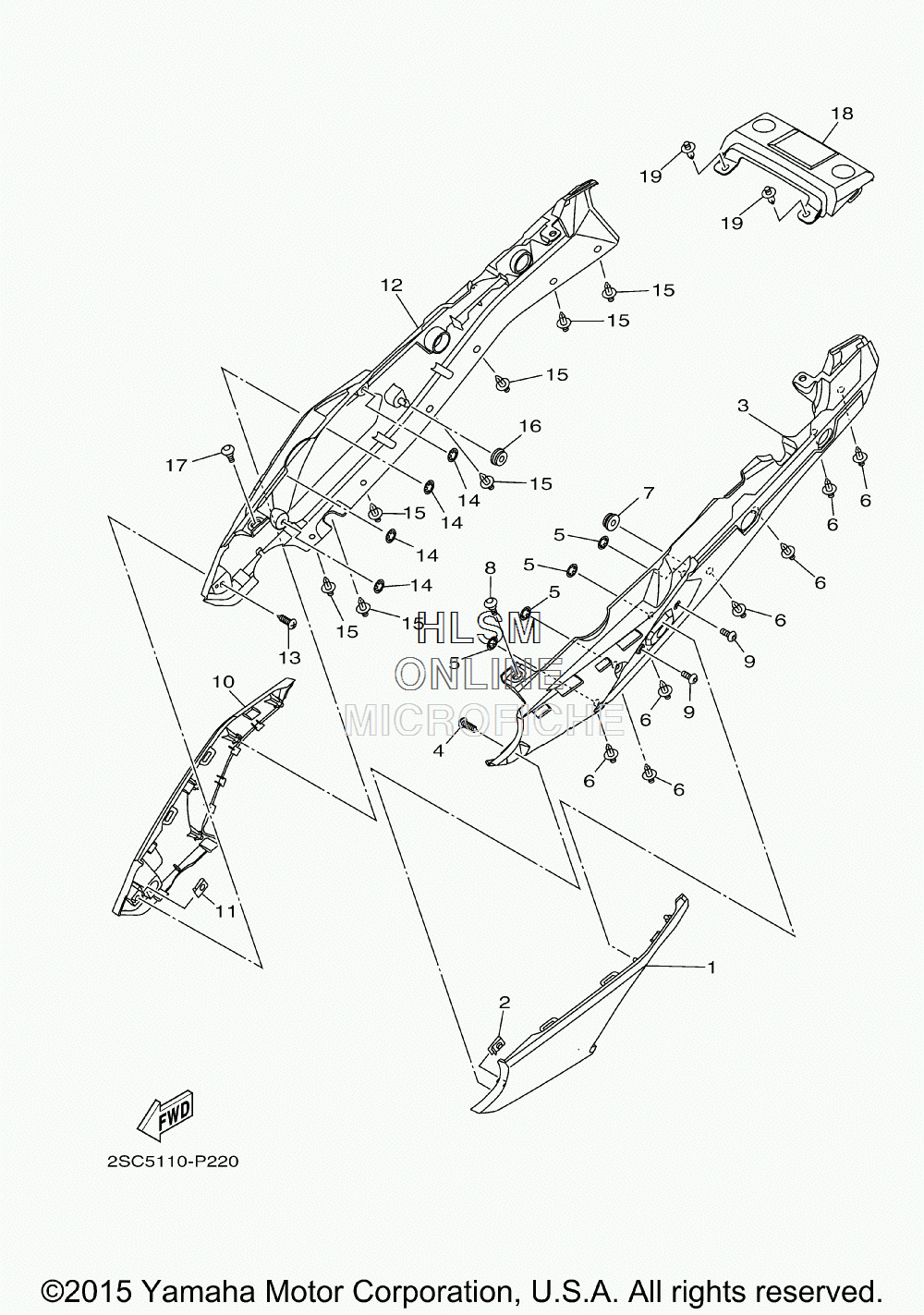

SIDE COVER для Yamaha FJ-09 - 2015 года выпуска
-
№АртикулНазвание
-
12PP-21711-00-P0 COVER, SIDE 1 FOR MNM3COVER, SIDE 1 FOR MNM3
-
12PP-21711-00-P1 COVER, SIDE 1 FOR DRMKCOVER, SIDE 1 FOR DRMK
-
290183-05042-00 NUT, SPRINGNUT, SPRING
-
32PP-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
497707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
590183-05M02-00 NUT, SPRINGNUT, SPRING
-
690269-07007-00 RIVETRIVET
-
790480-13398-00 GROMMETGROMMET
-
890111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990149-06308-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
102PP-21721-00-P0 COVER, SIDE 2 FOR MNM3COVER, SIDE 2 FOR MNM3
-
102PP-21721-00-P1 COVER, SIDE 2 FOR DRMKCOVER, SIDE 2 FOR DRMK
-
1190183-05042-00 NUT, SPRINGNUT, SPRING
-
122PP-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
1397707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1490183-05M02-00 NUT, SPRINGNUT, SPRING
-
1590269-07007-00 RIVETRIVET
-
1690480-13398-00 GROMMETGROMMET
-
1790111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
182PP-2171A-00-00 COVER, TOPCOVER, TOP
-
1990269-07007-00 RIVETRIVET
