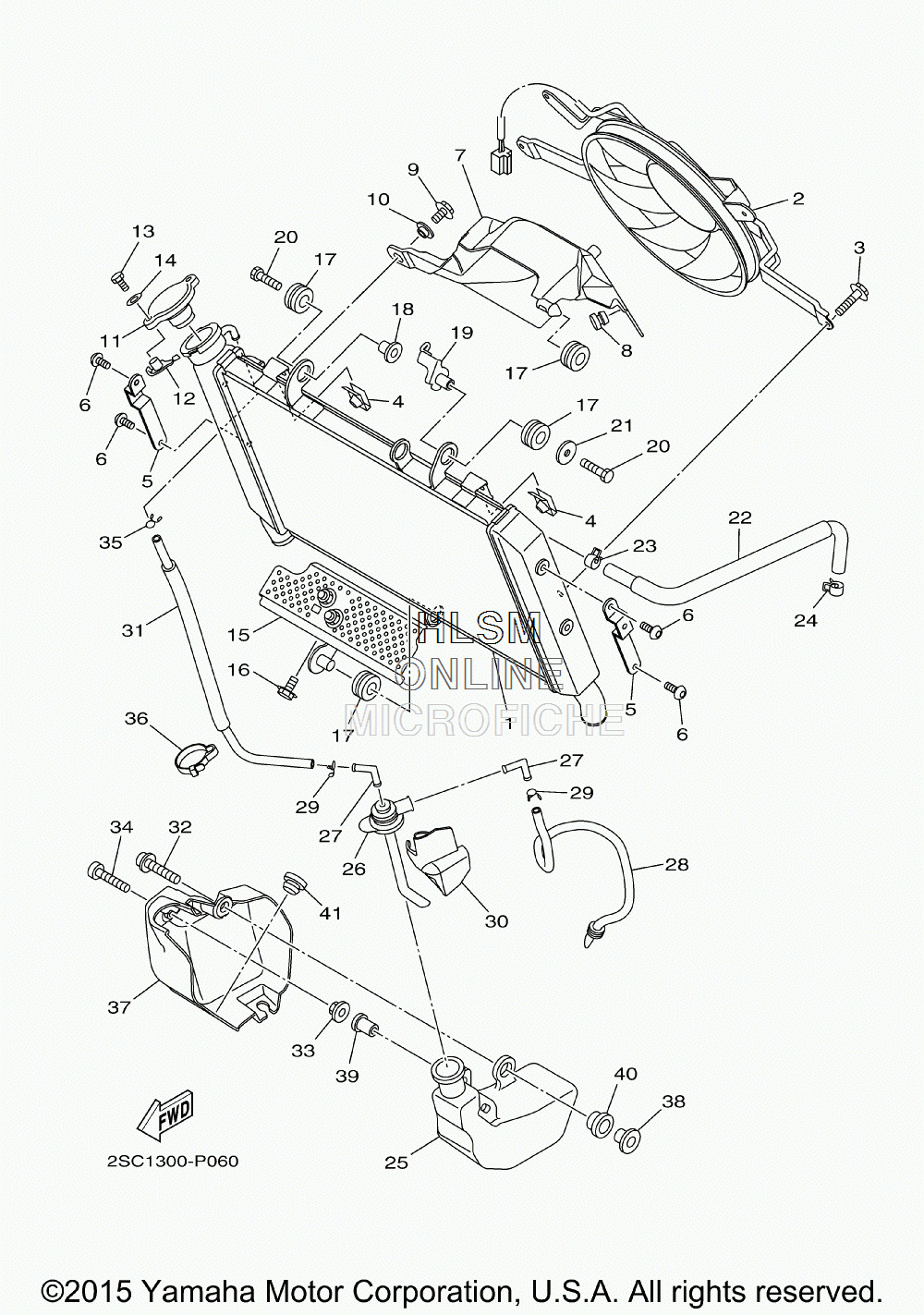

RADIATOR для Yamaha FJ-09 - 2015 года выпуска
-
№АртикулНазвание
-
12PP-12461-00-00 RADIATOR COMPRADIATOR COMP
-
21RC-12405-00-00 BLOWER ASSYBLOWER ASSY
-
33D8-12675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
41AA-12535-00-00 PLATEPLATE
-
52PP-1244E-00-00 BRACKET 1BRACKET 1
-
692012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
71RC-12467-00-00 COVER, RADIATORCOVER, RADIATOR
-
890338-07157-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
990105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-07717-00 COLLARCOLLAR
-
114FL-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
125FC-12437-00-00 STOPPERSTOPPER
-
1397007-05012-00 BOLTBOLT
-
1492907-05600-00 WASHER, PLATEWASHER, PLATE
-
151RC-12637-00-00 STAY 1STAY 1
-
1695822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1790480-15363-00 GROMMETGROMMET
-
1890387-06158-00 COLLARCOLLAR
-
191RC-26132-00-00 GUIDE, CABLE 2GUIDE, CABLE 2
-
2091312-06030-00 BOLTBOLT
-
2190201-06033-00 WASHER, PLATEWASHER, PLATE
-
221RC-1243A-00-00 HOSE 1HOSE 1
-
2390467-10039-00 CLIPCLIP
-
2490467-10039-00 CLIPCLIP
-
251RC-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
261RC-21875-00-00 CAPCAP
-
271RC-21828-00-00 ELBOWELBOW
-
281RC-21826-00-00 PIPE, BREATHERPIPE, BREATHER
-
2990467-08075-00 CLIPCLIP
-
301RC-22825-00-00 PROTECTOR 1PROTECTOR 1
-
311RC-21816-00-00 PIPE 1PIPE 1
-
3290110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
331RC-21748-00-00 COLLARCOLLAR
-
3492012-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3590467-08075-00 CLIPCLIP
-
3690464-07M40-00 CLAMPCLAMP
-
371RC-2172W-00-00 COVERCOVER
-
3890387-06285-00 COLLARCOLLAR
-
3990179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
401RC-21749-00-00 COLLARCOLLAR
-
4190480-13203-00 GROMMETGROMMET
