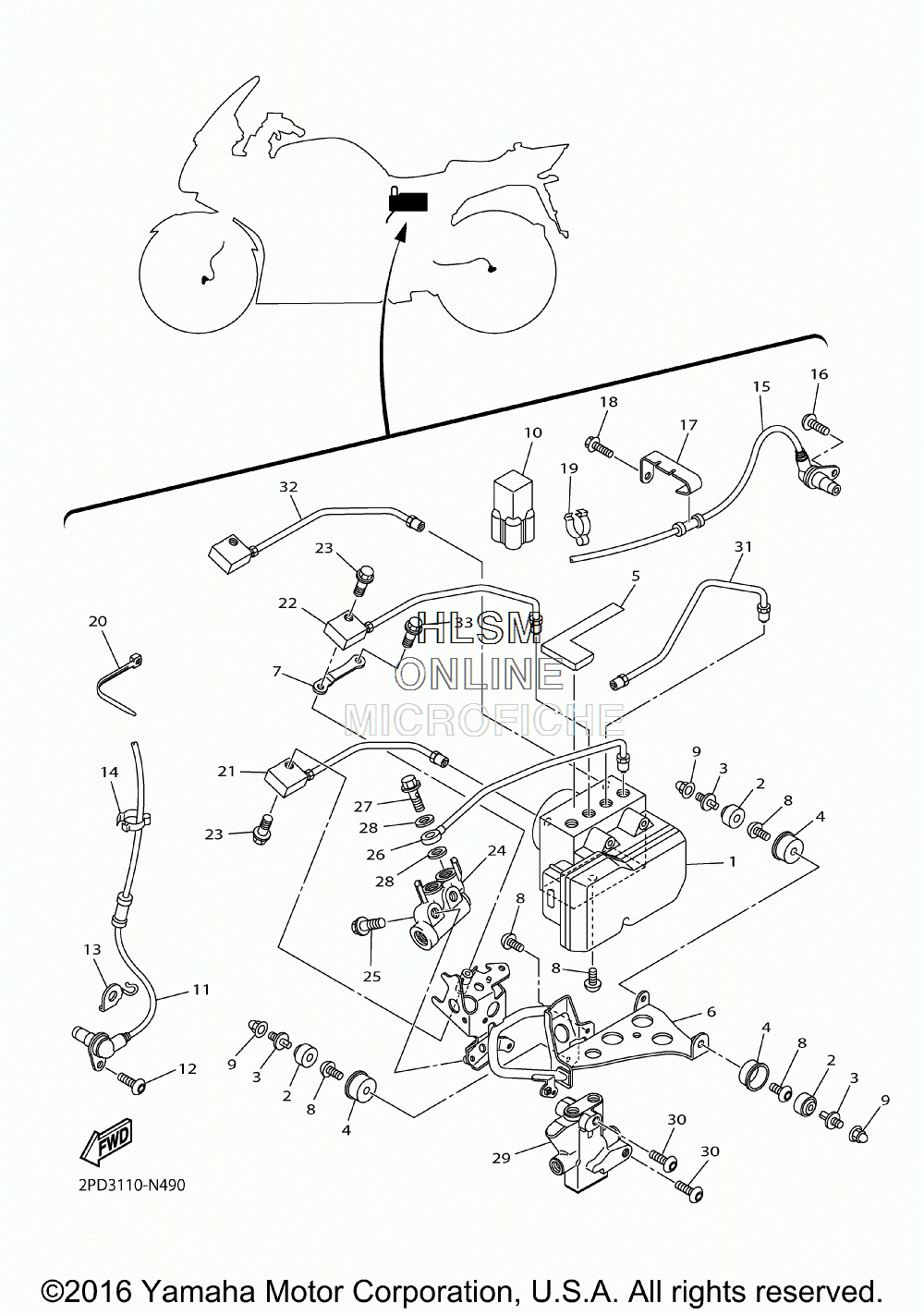

ELECTRICAL 3 для Yamaha FJR1300 ES [FJR13ESF] - 2015 года выпуска
-
№АртикулНазвание
-
11MC-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
25CG-85113-00-00 DAMPERDAMPER
-
35CG-2535E-00-00 BOLTBOLT
-
43P6-85916-00-00 CAP, DAMPERCAP, DAMPER
-
53P6-2117G-00-00 PROTECTORPROTECTOR
-
61MD-2175T-00-00 BRACKET 1BRACKET 1
-
73P6-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
892012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990176-08005-00 NUT, CROWNNUT, CROWN
-
103YA-82378-00-00 CONNECTORCONNECTOR
-
111MD-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
1292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
131MD-23317-00-00 HOLDER, CABLEHOLDER, CABLE
-
1490464-14003-00 CLAMPCLAMP
-
153P6-85980-10-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
1692012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
173P6-86159-00-00 HOLDER, WIREHOLDER, WIRE
-
1890105-05014-00 BOLT, FLANGEBOLT, FLANGE
-
1990464-12013-00 CLAMPCLAMP
-
2090465-10098-00 CLAMPCLAMP
-
213P6-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
223P6-25882-20-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
2395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
243P6-25940-00-00 METERING VALVE ASSYMETERING VALVE ASSY
-
2595802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
263P6-2588A-10-00 PIPE, BRAKE 4PIPE, BRAKE 4
-
2790401-10020-00 BOLT, UNIONBOLT, UNION
-
2890430-10005-00 GASKETGASKET
-
293P6-25884-00-00 VALVE, PROPORTIONINGVALVE, PROPORTIONING
-
3092012-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
313P6-2588B-00-00 PIPE, BRAKE 5PIPE, BRAKE 5
-
323P6-25883-20-00 PIPE, BRAKE 3PIPE, BRAKE 3
-
3395022-06025-00 BOLT, FLANGEBOLT, FLANGE
