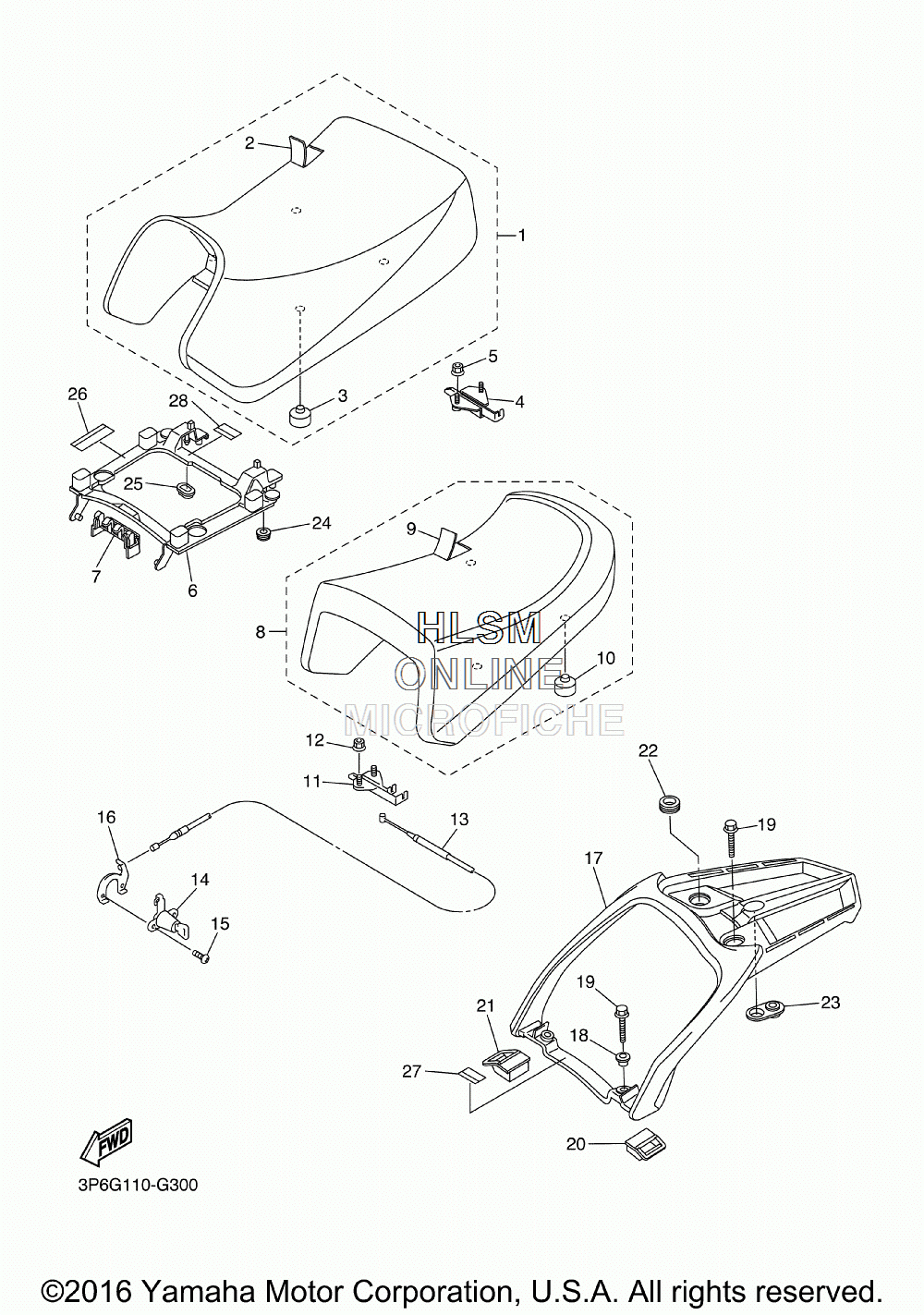

SEAT для Yamaha FJR1300 ES [FJR13ESF] - 2015 года выпуска
-
№АртикулНазвание
-
11MC-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
21MC-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35JW-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
43P6-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
595702-06500-00 NUT, FLANGENUT, FLANGE
-
63P6-24708-00-00 SEAT BRACKET ASSYSEAT BRACKET ASSY
-
73P6-24768-00-00 STOPPERSTOPPER
-
81MC-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
91MC-2470H-00-00 ......SEAT COVER COMP., 2......SEAT COVER COMP., 2
-
105JW-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
114BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1295702-06500-00 NUT, FLANGENUT, FLANGE
-
133P6-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
142TV-W2470-00-00 ROTOR SETROTOR SET
-
1590149-06308-00 SCREWSCREW
-
163P6-2117K-00-00 STAY, LOCKSTAY, LOCK
-
173P6-24773-01-P5 HANDLE, SEAT (SMX)HANDLE, SEAT (SMX)
-
1890387-09003-00 COLLARCOLLAR
-
1995022-08030-00 BOLT, FLANGEBOLT, FLANGE
-
203P6-24723-10-00 DAMPER, SEATDAMPER, SEAT
-
213P6-24724-10-00 DAMPER, SEATDAMPER, SEAT
-
2290480-28191-00 GROMMETGROMMET
-
233P6-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
2490480-13567-00 GROMMETGROMMET
-
2590480-01558-00 GROMMETGROMMET
-
263JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
273TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
284BR-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
