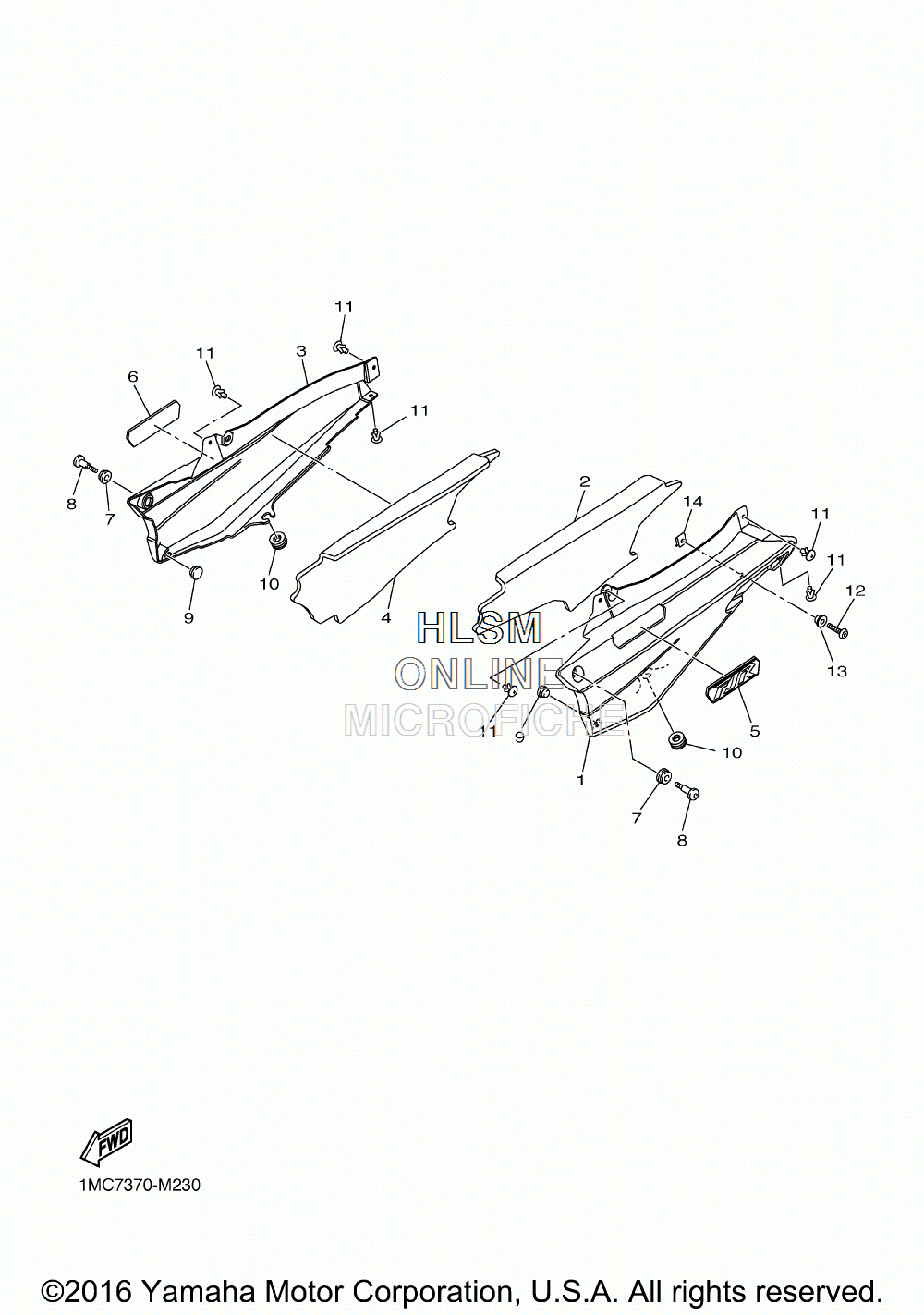

SIDE COVER для Yamaha FJR1300 ES [FJR13ESF] - 2015 года выпуска
-
№АртикулНазвание
-
13P6-21711-00-P7 COVER, SIDE 1 (DNMN)COVER, SIDE 1 (DNMN)
-
23P6-21746-00-00 DAMPERDAMPER
-
33P6-21721-00-P8 COVER, SIDE 2 (DNMN)COVER, SIDE 2 (DNMN)
-
43P6-21747-00-00 DAMPERDAMPER
-
53P6-2173B-00-00 EMBLEM 3DEMBLEM 3D
-
63P6-2173B-00-00 EMBLEM 3DEMBLEM 3D
-
790480-13398-00 GROMMETGROMMET
-
890109-06037-00 BOLTBOLT
-
990338-10132-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
1090480-12325-00 GROMMETGROMMET
-
1190269-06081-00 RIVETRIVET
-
1292012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390387-06107-00 COLLARCOLLAR
-
1490183-060A7-00 NUT, SPRINGNUT, SPRING
