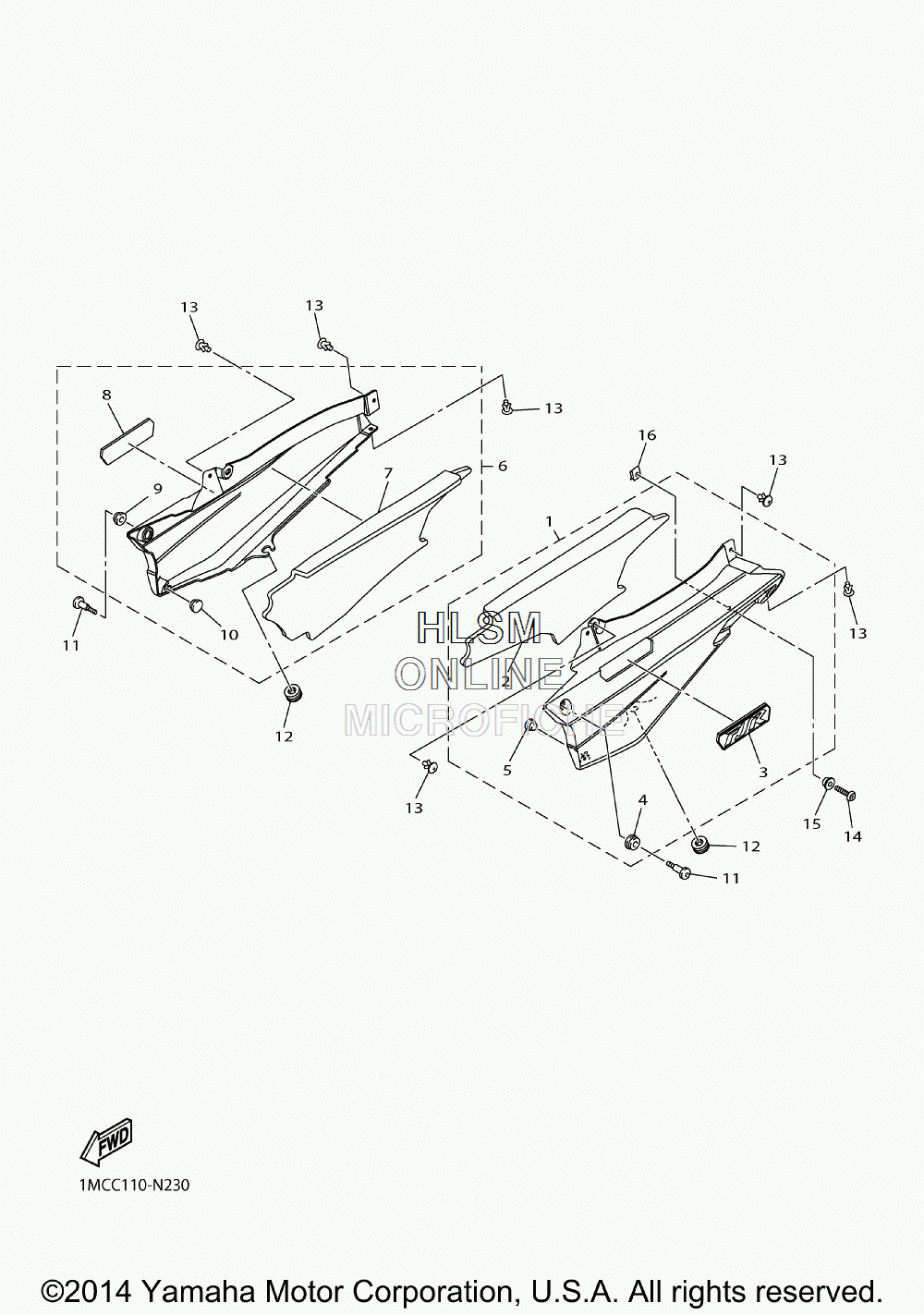

SIDE COVER для Yamaha FJR1300A - 2015 года выпуска
-
№АртикулНазвание
-
13P6-Y2171-00-P7 COVER, SIDE 1 (DNMN)COVER, SIDE 1 (DNMN)
-
23P6-21746-00-00 ...DAMPER...DAMPER
-
33P6-2173B-00-00 ...EMBLEM 3D...EMBLEM 3D
-
490480-13398-00 ...GROMMET...GROMMET
-
590338-10132-00 ...PLUG SPEC'L SHAPE...PLUG SPEC'L SHAPE
-
63P6-Y2172-00-P8 COVER, SIDE 2 (DNMN)COVER, SIDE 2 (DNMN)
-
73P6-21747-00-00 ...DAMPER...DAMPER
-
83P6-2173B-00-00 ...EMBLEM 3D...EMBLEM 3D
-
990480-13398-00 ...GROMMET...GROMMET
-
1090338-10132-00 ...PLUG SPEC'L SHAPE...PLUG SPEC'L SHAPE
-
1190109-06037-00 BOLTBOLT
-
1290480-12325-00 GROMMETGROMMET
-
1390269-06081-00 RIVETRIVET
-
1492012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1590387-06107-00 COLLARCOLLAR
-
1690183-060A7-00 NUT, SPRINGNUT, SPRING
