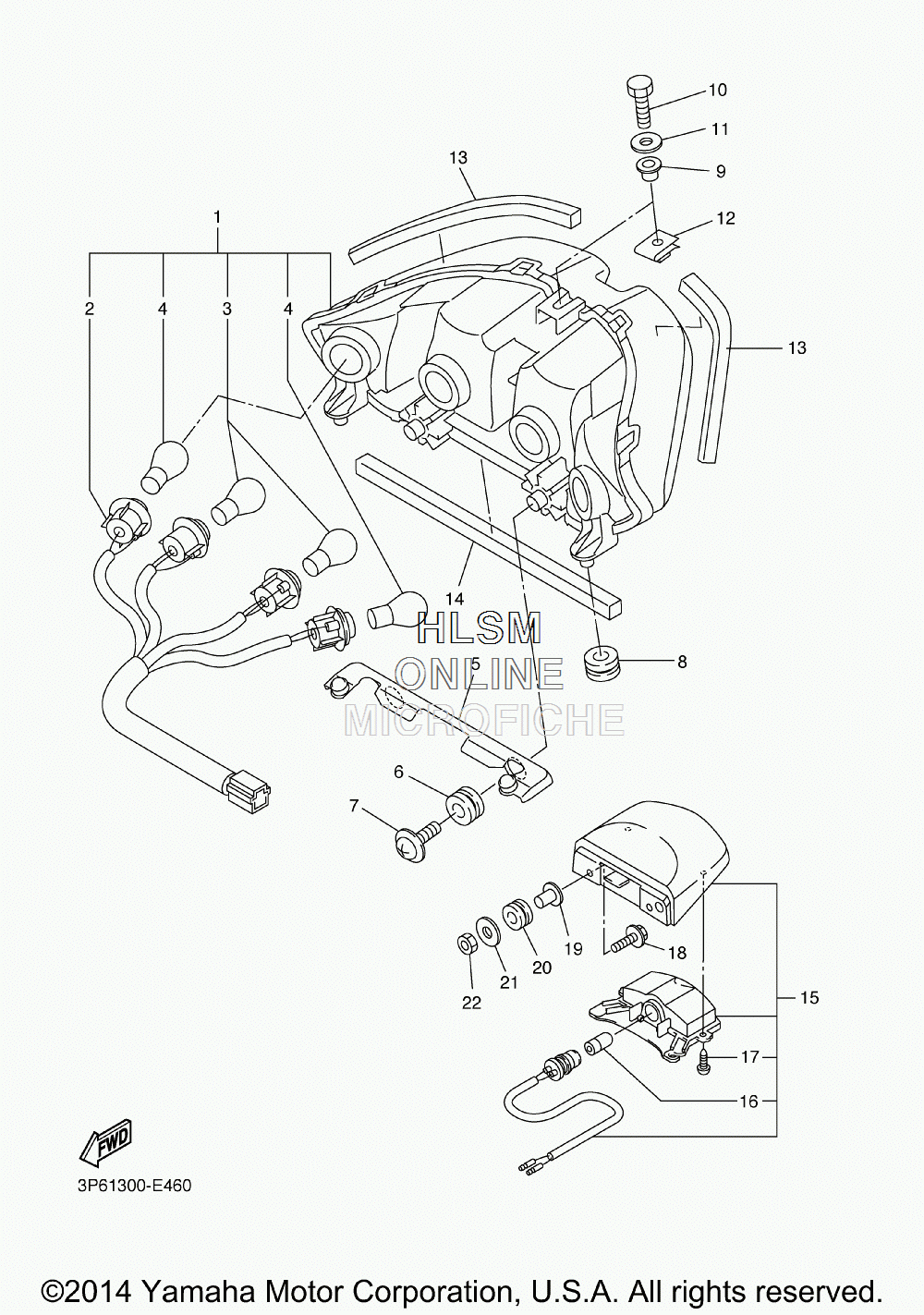

TAILLIGHT для Yamaha FJR1300A - 2015 года выпуска
-
№АртикулНазвание
-
11MC-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
23P6-84735-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
336Y-84714-40-00 ...BULB, TAILLIGHT (12V-21/5W)...BULB, TAILLIGHT (12V-21/5W)
-
43P6-83331-00-00 ...BULB, FLASHER (12V-21W)...BULB, FLASHER (12V-21W)
-
53P6-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
690480-18276-00 GROMMETGROMMET
-
790164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
84XV-83513-00-00 DAMPERDAMPER
-
990387-07391-00 COLLARCOLLAR
-
1097002-06025-00 BOLTBOLT
-
1192902-06600-00 WASHER, PLATEWASHER, PLATE
-
1290183-060A7-00 NUT, SPRINGNUT, SPRING
-
134FU-21747-00-00 DAMPERDAMPER
-
142D1-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
152D1-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
164HC-84744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
1797706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1890159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1990387-05003-00 COLLARCOLLAR
-
2090480-11008-00 GROMMETGROMMET
-
2190201-05043-00 WASHER, PLATEWASHER, PLATE
-
2295602-05100-00 NUT, UNUT, U
