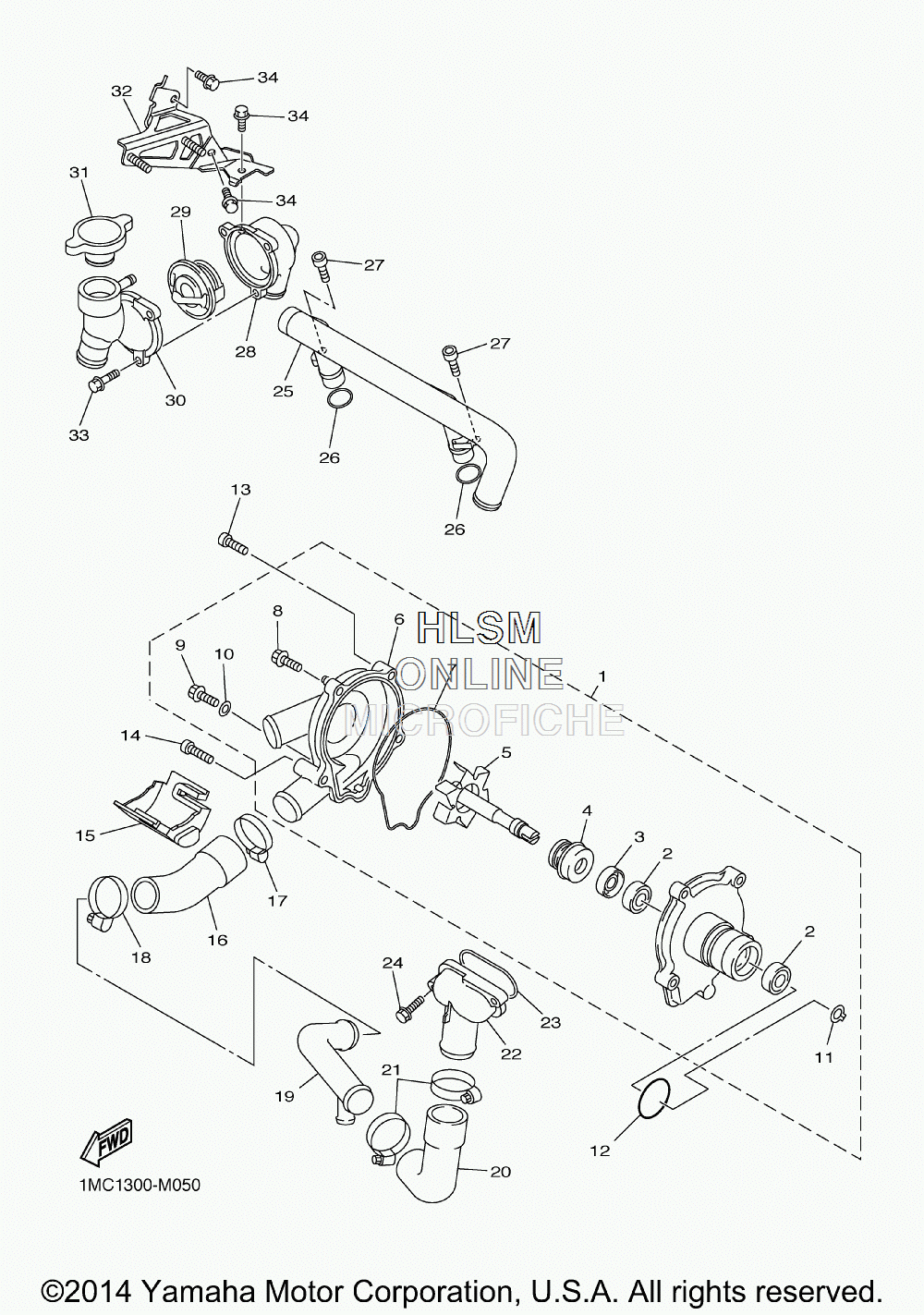

WATER PUMP для Yamaha FJR1300A - 2015 года выпуска
-
№АртикулНазвание
-
11MC-12420-01-00 WATER PUMP ASSYWATER PUMP ASSY
-
293306-00106-00 ...BEARING...BEARING
-
393102-12372-00 ...OIL SEAL...OIL SEAL
-
45VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
55JW-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
61MC-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
75JW-12439-00-00 ...O-RING...O-RING
-
890105-06065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995024-06025-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
1090430-06014-00 ...GASKET...GASKET
-
1199009-12400-00 ...CIRCLIP...CIRCLIP
-
1293210-33133-00 O-RINGO-RING
-
1390110-06336-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490110-06337-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
151MC-12437-00-00 STOPPERSTOPPER
-
165JW-12576-00-00 HOSE 1HOSE 1
-
1790450-38003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1890450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
193P6-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
205JW-12577-00-00 HOSE 2HOSE 2
-
2190450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
225JW-12469-00-00 JOINT 1JOINT 1
-
2393210-47675-00 O-RINGO-RING
-
2490105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
251MC-12481-00-00 PIPE 1PIPE 1
-
2693210-18417-00 O-RINGO-RING
-
2791312-06016-00 BOLTBOLT
-
283P6-12417-00-00 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
294FM-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
303P6-12591-00-00 SUPT, FILLER NECKSUPT, FILLER NECK
-
315JW-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
321MC-1244E-00-00 BRACKET 1BRACKET 1
-
3395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3495022-06012-00 BOLT, FLANGEBOLT, FLANGE
