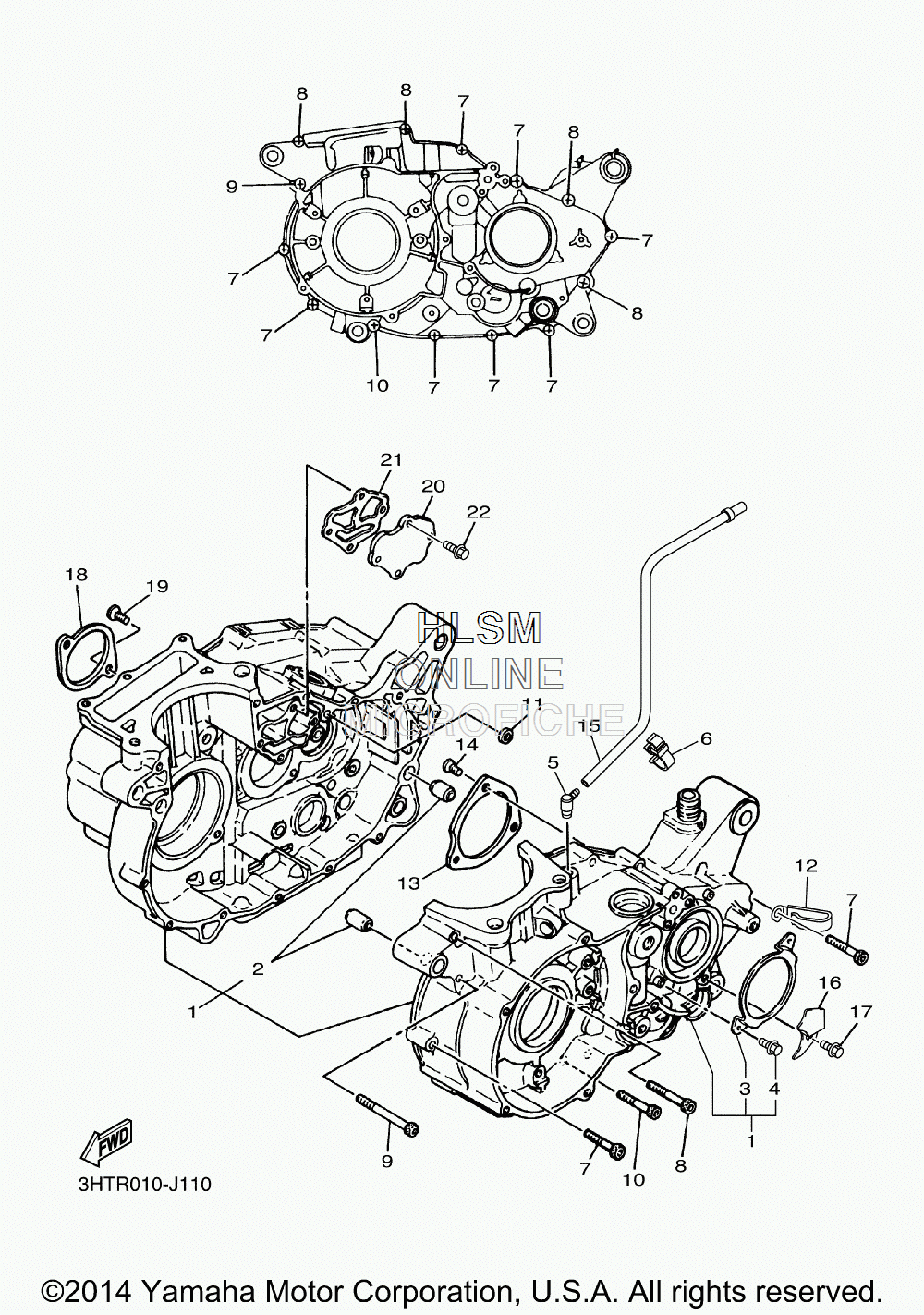

CRANKCASE для Yamaha SR400 - 2015 года выпуска
-
№АртикулНазвание
-
13HT-15100-R9-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
3583-17471-01-00 ...PLATE, COVER...PLATE, COVER
-
490105-06081-00 ...BOLT, FLANGE...BOLT, FLANGE
-
55UG-15371-00-00 BREATHERBREATHER
-
690464-18013-00 CLAMPCLAMP
-
791314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
891314-06045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
991314-06065-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1091314-06055-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190430-09121-00 GASKETGASKET
-
1290465-08277-00 CLAMPCLAMP
-
13363-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1490149-05021-00 SCREWSCREW
-
153HT-1531A-R0-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
1690465-10021-00 CLAMPCLAMP
-
1795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
18583-15383-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1990151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
20583-15426-10-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
213HT-15466-00-00 GASKET 2GASKET 2
-
2290105-06187-00 BOLT, FLANGEBOLT, FLANGE
