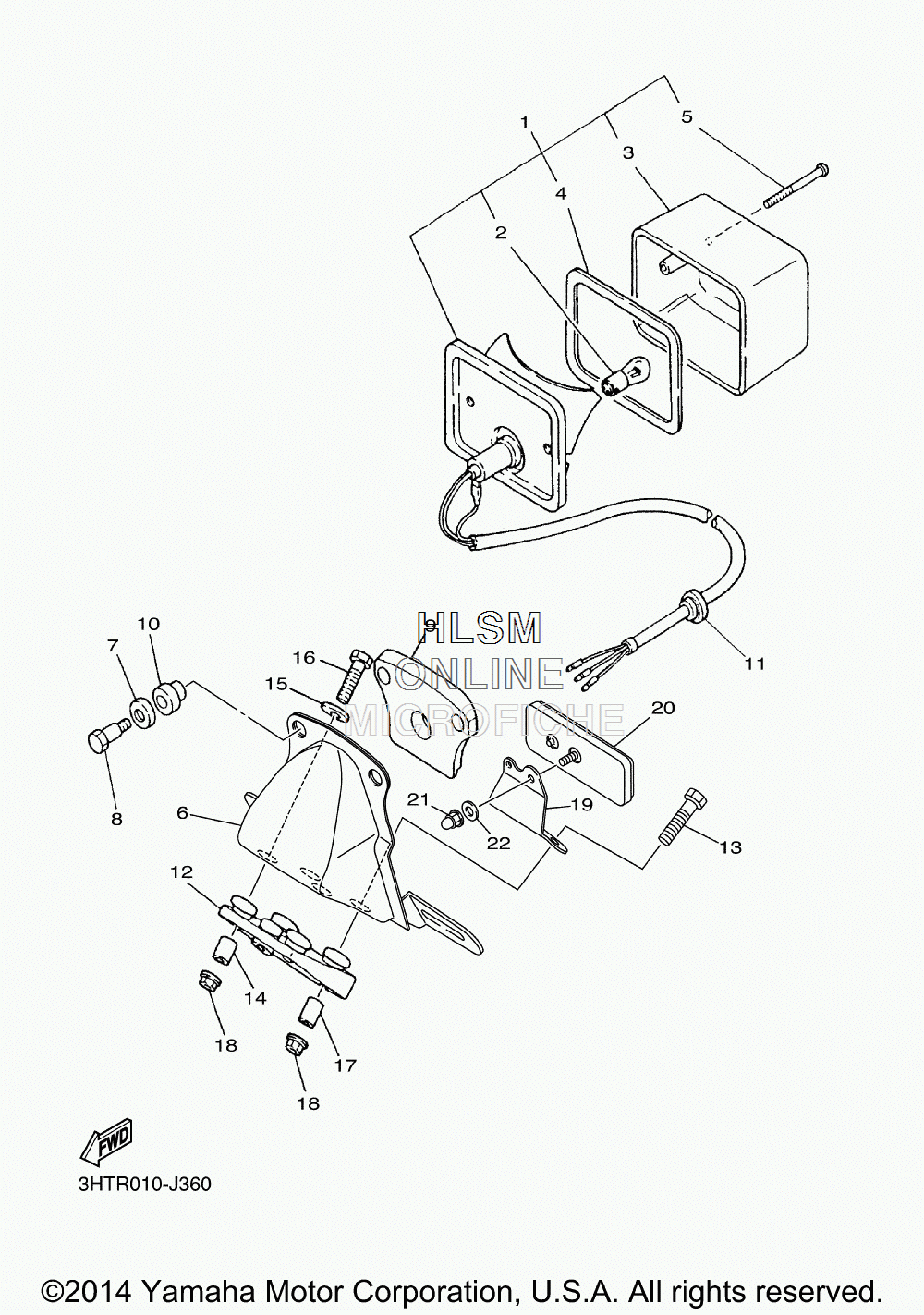

TAILLIGHT для Yamaha SR400 - 2015 года выпуска
-
№АртикулНазвание
-
12RD-84710-10-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
2256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
31M1-84521-60-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
41M1-84523-60-00 ...GASKET, LENS...GASKET, LENS
-
51M1-84524-60-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
63HT-84751-20-00 BRACKET, LICENSEBRACKET, LICENSE
-
72H7-84754-00-00 WASHER, SPECIALWASHER, SPECIAL
-
83HT-84526-00-00 SCREWSCREW
-
91M1-84512-60-00 SEAT, BASESEAT, BASE
-
101M1-84527-60-00 DAMPERDAMPER
-
1190480-12013-00 GROMMETGROMMET
-
122J2-84753-00-00 DAMPERDAMPER
-
1397007-06030-00 BOLTBOLT
-
1490387-0714B-00 COLLARCOLLAR
-
1590201-06380-00 WASHER PLAINWASHER PLAIN
-
1697007-06025-00 BOLTBOLT
-
1790387-0714A-00 COLLARCOLLAR
-
1895707-06500-00 NUT, FLANGENUT, FLANGE
-
193HT-21641-00-00 BRACKET, REFLECTORBRACKET, REFLECTOR
-
203Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2190176-05003-00 NUT, CROWNNUT, CROWN
-
2290201-05039-00 WASHER, PLATEWASHER, PLATE
