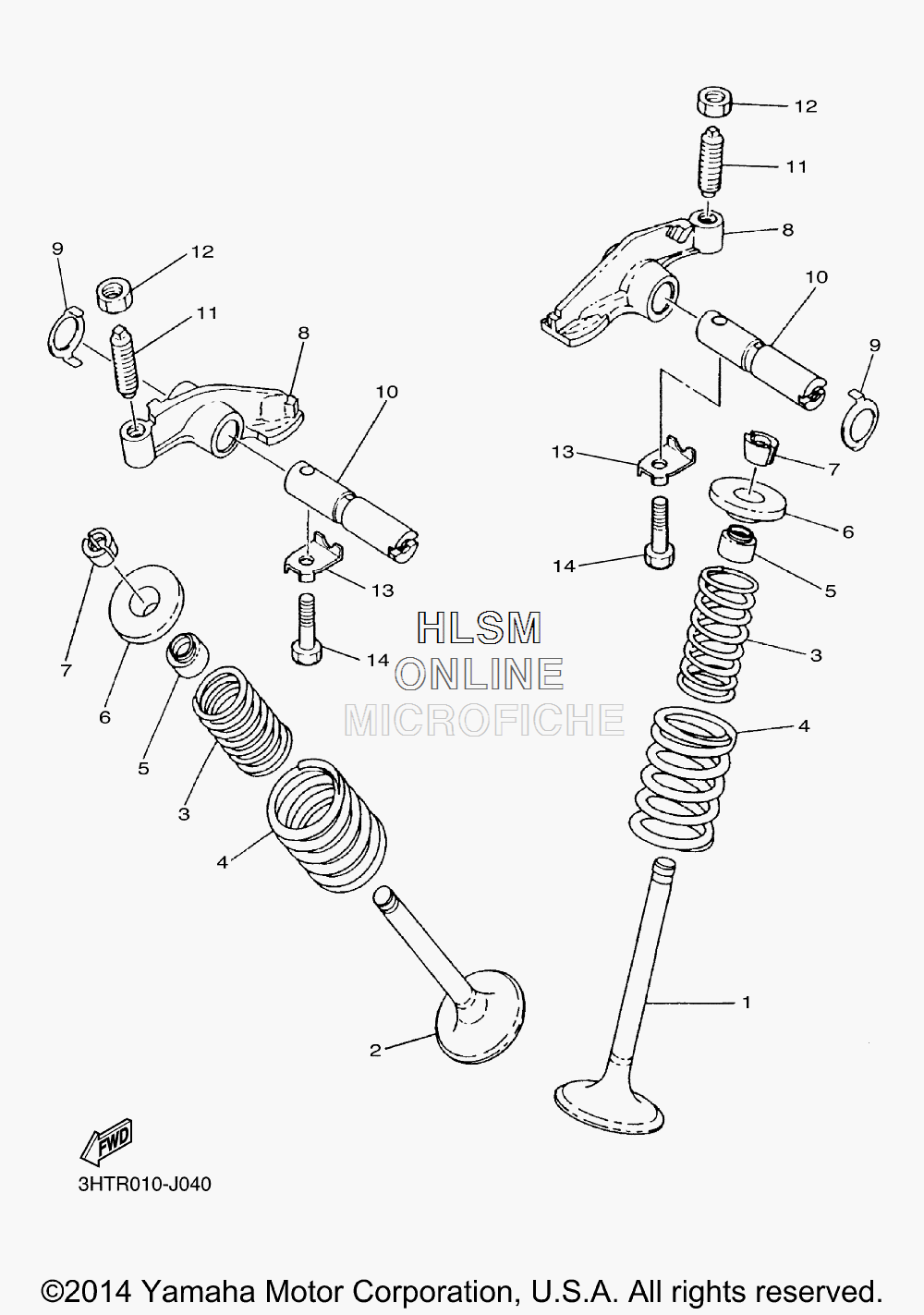

VALVE для Yamaha SR400 - 2015 года выпуска
-
№АртикулНазвание
-
12J2-12111-01-00 VALVE, INTAKEVALVE, INTAKE
-
25A8-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
390501-31454-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
490501-44455-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5341-12119-02-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
6256-12117-02-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
7341-12118-00-00 LOCK, VALVE SPRING RETAINERLOCK, VALVE SPRING RETAINER
-
83HT-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
990206-12002-00 WASHER, WAVEWASHER, WAVE
-
10583-12156-02-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
113HT-12159-R0-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1290170-08173-00 NUTNUT
-
1390215-06168-00 WASHER, LOCKWASHER, LOCK
-
1490153-06038-00 SCREW, HEXAGONSCREW, HEXAGON
