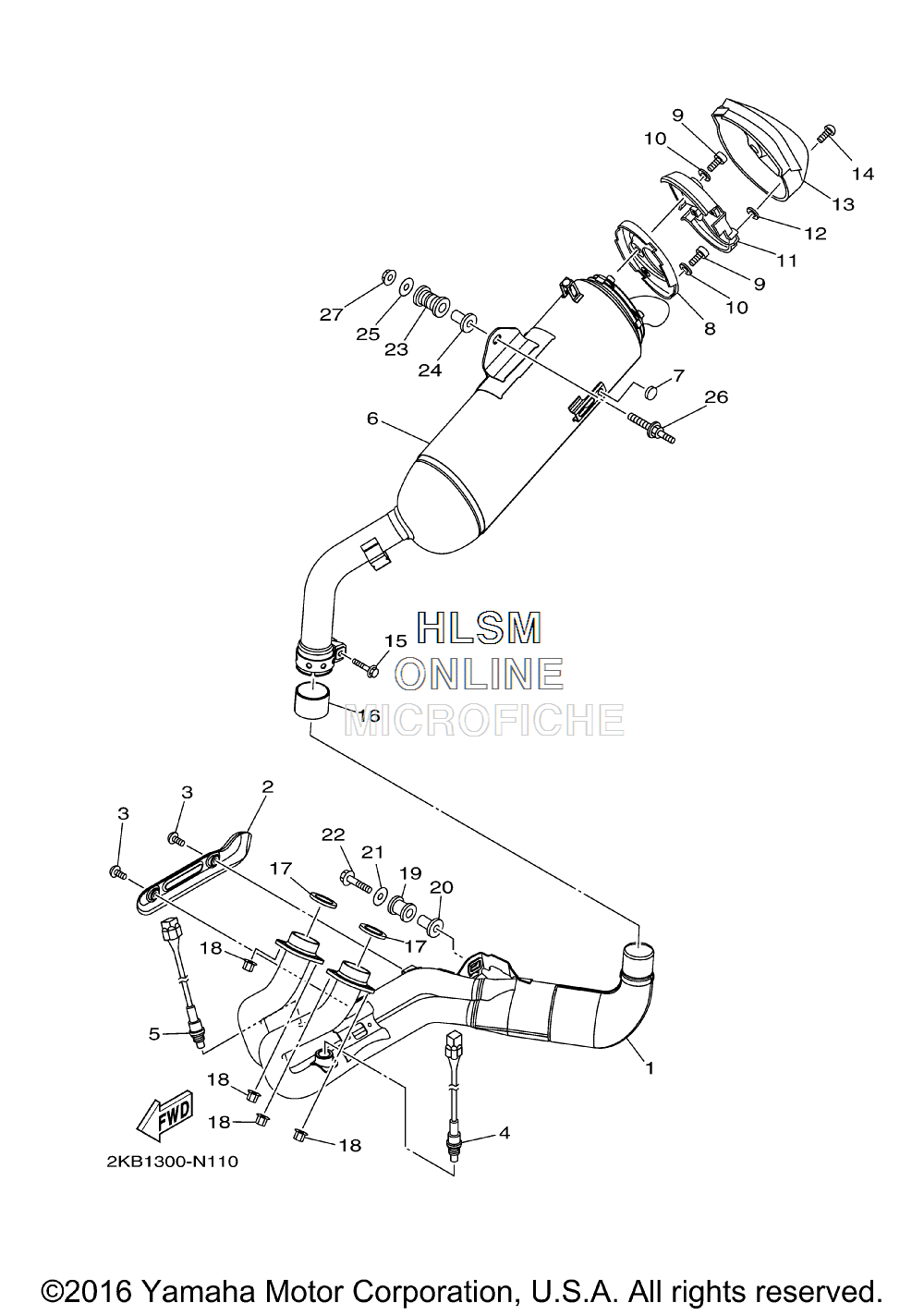

EXHAUST для Yamaha SUPER TENERE ES [XTZ12EFR] - 2015 года выпуска
-
№АртикулНазвание
-
12BS-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
223P-14628-00-00 PROTECTOR, EXHAUST PIPEPROTECTOR, EXHAUST PIPE
-
398980-06008-00 SCREW, BINDSCREW, BIND
-
42BS-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
52BS-8592A-10-00 SENSOR, OXYGENSENSOR, OXYGEN
-
623P-14703-10-00 MUFFLER COMP. 1MUFFLER COMP. 1
-
722W-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
823P-1473K-10-00 BRKT.3-1BRKT.3-1
-
991380-06010-00 BOLTBOLT
-
1092990-06200-00 .WASHER, PLAIN.WASHER, PLAIN
-
1123P-1474K-10-00 BRACKET 4-1BRACKET 4-1
-
125GM-14766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
1323P-14798-00-00 CAP, SILENCER 2CAP, SILENCER 2
-
1490110-06381-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1595814-08040-00 BOLT, FLANGEBOLT, FLANGE
-
165VY-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
174FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1890179-08410-00 NUTNUT
-
195YU-14757-00-00 DAMPER, MUFFLER 2DAMPER, MUFFLER 2
-
2090387-082W9-00 COLLARCOLLAR
-
2190201-08034-00 WASHER, PLATEWASHER, PLATE
-
2295814-08040-00 BOLT, FLANGEBOLT, FLANGE
-
2336Y-27424-01-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
2490387-10636-00 COLLARCOLLAR
-
2590201-10043-00 WASHER, PLATEWASHER, PLATE
-
2623P-14777-00-00 BOLTBOLT
-
2795704-10500-00 NUT, FLANGENUT, FLANGE
