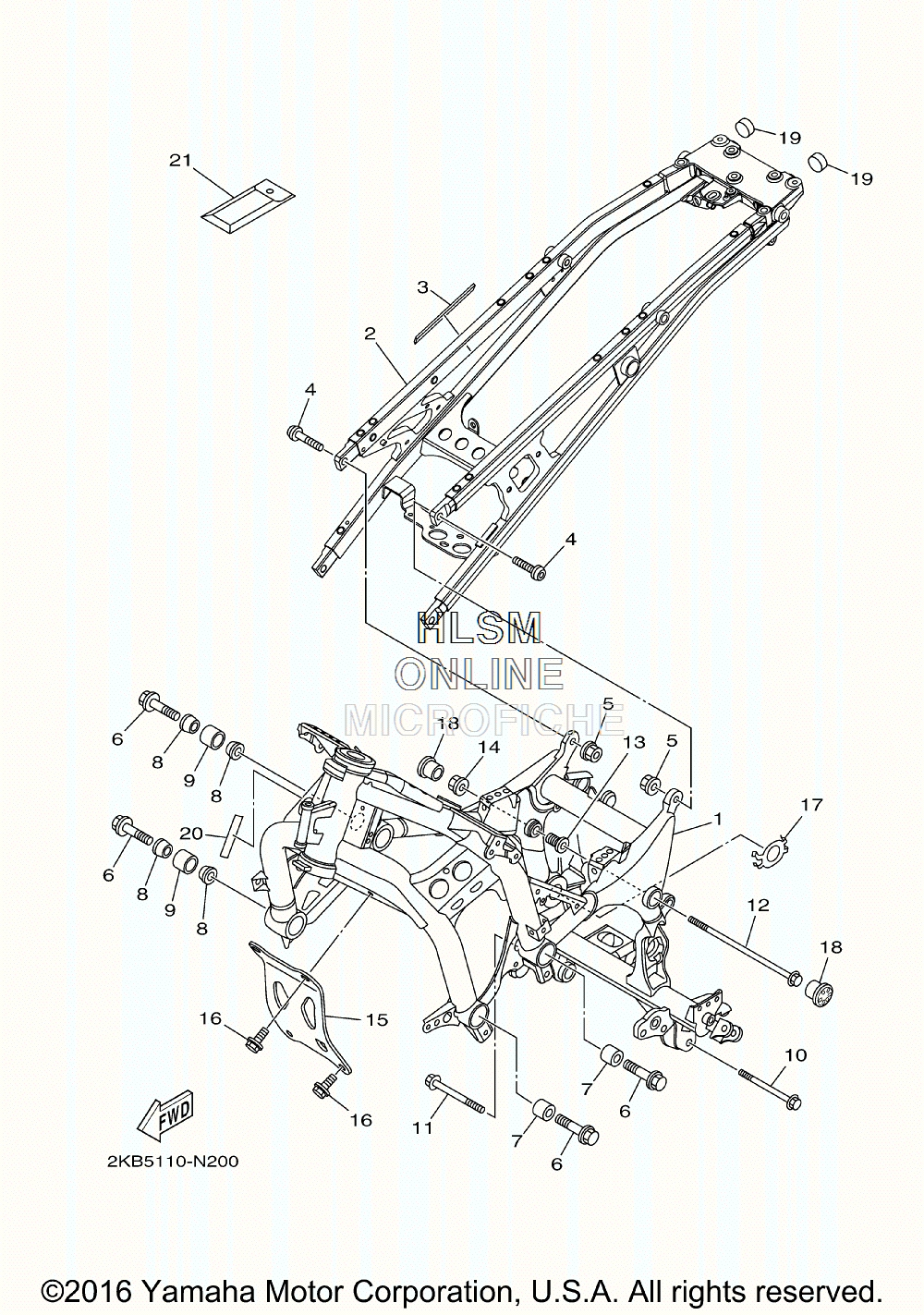

FRAME для Yamaha SUPER TENERE ES [XTZ12EFR] - 2015 года выпуска
-
№АртикулНазвание
-
123P-21110-00-00 FRAME COMP.FRAME COMP.
-
22KB-21190-10-00 REAR FRAME COMP.REAR FRAME COMP.
-
34D9-2837K-00-00 DAMPER 6DAMPER 6
-
490149-10003-00 SCREWSCREW
-
595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
690105-12077-00 BOLT, FLANGEBOLT, FLANGE
-
723P-21116-00-00 COLLARCOLLAR
-
823P-21414-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
923P-21424-00-00 BOSS, ENGINE MOUNTBOSS, ENGINE MOUNT
-
1090105-10075-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-10175-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-10380-00 BOLT, FLANGEBOLT, FLANGE
-
1323P-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
1490179-10028-00 NUTNUT
-
152BS-21318-00-00 STAY, ENGINE 4STAY, ENGINE 4
-
1695812-12025-00 BOLT, FLANGEBOLT, FLANGE
-
1723P-2191B-00-00 PLATE 1PLATE 1
-
182BS-2111A-00-00 CAP, MAIN PIPECAP, MAIN PIPE
-
193YX-2143A-00-00 CAPCAP
-
203HA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2123P-28100-00-00 TOOL KITTOOL KIT
