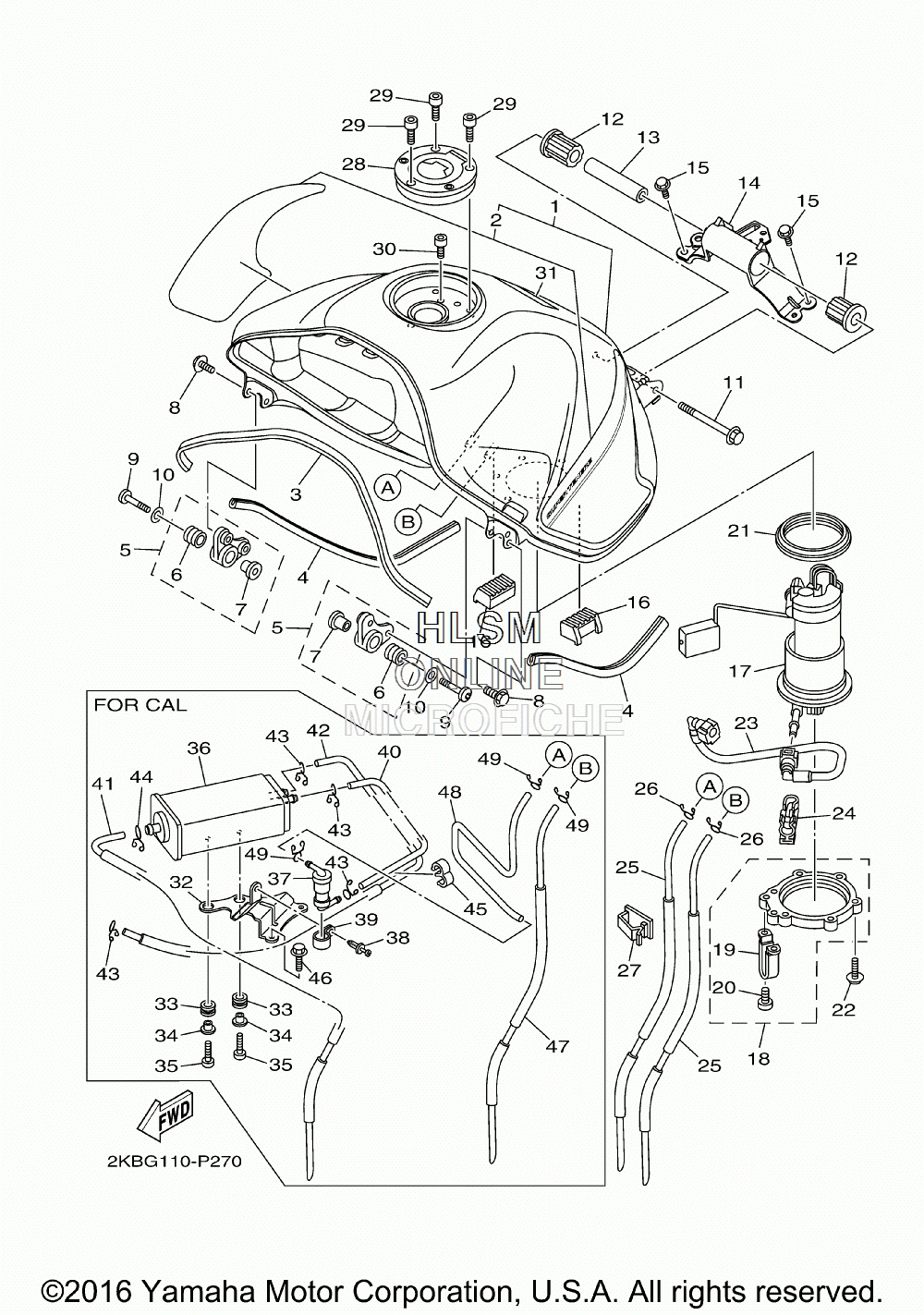

FUEL TANK для Yamaha SUPER TENERE ES [XTZ12EFR] - 2015 года выпуска
-
№АртикулНазвание
-
123P-Y2410-00-04 FUEL TANK COMP. (DRMK)FUEL TANK COMP. (DRMK)
-
223P-24240-30-00 ...GRAPHIC SET...GRAPHIC SET
-
323P-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
423P-24188-10-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
523P-24104-01-00 TANK BRACKET ASSYTANK BRACKET ASSY
-
690480-18008-00 ...GROMMET...GROMMET
-
790387-06266-00 ...COLLAR...COLLAR
-
890119-06200-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
990149-06328-00 SCREWSCREW
-
1090201-06072-00 WASHER, PLATEWASHER, PLATE
-
1195812-08110-00 BOLT, FLANGEBOLT, FLANGE
-
1223P-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1390387-12050-00 COLLARCOLLAR
-
1423P-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
1595802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1623P-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1723P-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
1823P-24105-00-00 TANK BRACKET ASSY 2TANK BRACKET ASSY 2
-
192D1-24192-00-00 ...BRACKET, FUEL TANK 2...BRACKET, FUEL TANK 2
-
2098902-05008-00 ...SCREW, BIND...SCREW, BIND
-
2119B-24486-01-00 O-RINGO-RING
-
2290110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2323P-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2490464-16005-00 CLAMPCLAMP
-
2523P-24318-00-00 PIPE, OVERFLOW (EXCEPT CALIF)PIPE, OVERFLOW (EXCEPT CALIF)
-
2690467-09006-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
2790464-13012-00 CLAMPCLAMP
-
2839P-24602-00-00 CAP ASSYCAP ASSY
-
2990110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3091312-05010-00 BOLTBOLT
-
3129P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
-
3223P-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
3390480-13018-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
3490387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
3592012-06016-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
365PX-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
372C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
3890269-05001-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
-
3990464-15014-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4023P-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
4123P-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
4223P-24316-00-00 PIPE 6 (CALIF ONLY)PIPE 6 (CALIF ONLY)
-
4390467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
4490467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
4590464-09M31-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4695802-06012-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
4723P-24318-00-00 PIPE, OVERFLOW (CALIF ONLY)PIPE, OVERFLOW (CALIF ONLY)
-
4823P-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
4990467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
