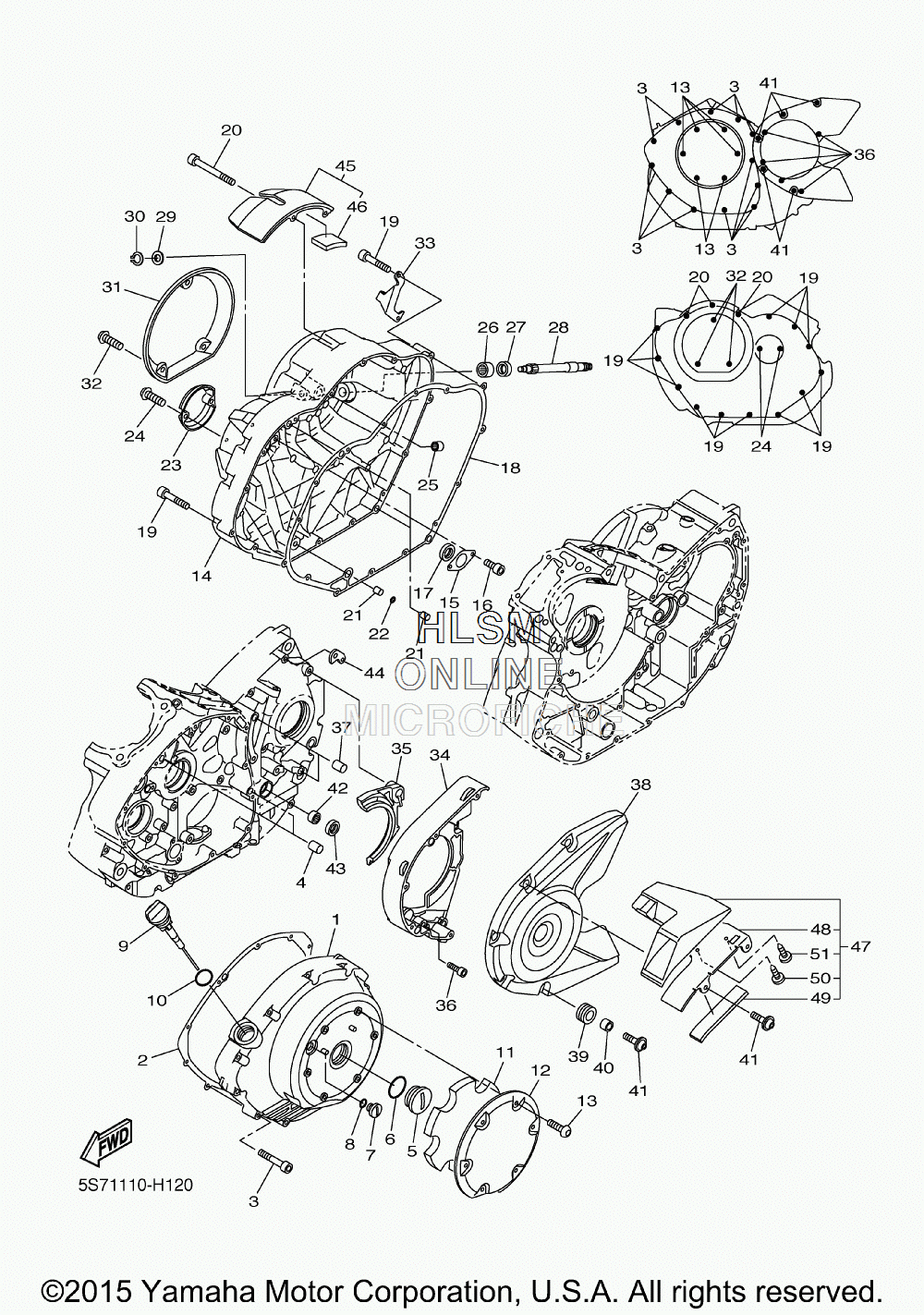

CRANKCASE COVER для Yamaha V STAR 950 - 2015 года выпуска
-
№АртикулНазвание
-
15S7-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
23D8-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
390110-06086-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
499530-08012-00 PIN, DOWELPIN, DOWEL
-
590340-36078-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-357A3-00 O-RINGO-RING
-
790340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-14369-00 O-RINGO-RING
-
95S7-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1093210-27370-00 O-RINGO-RING
-
115S7-1542A-00-00 DAMPER 1DAMPER 1
-
123D8-15492-00-00 COVERCOVER
-
1392014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
145S7-15421-01-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
153D8-15388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
1690110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1793101-14102-00 OIL SEAL S-TYPEOIL SEAL S-TYPE
-
183D8-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1990110-06086-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2090110-06334-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2199530-08012-00 PIN, DOWELPIN, DOWEL
-
2293210-07135-00 O-RINGO-RING
-
233D8-15423-01-00 COVER 2COVER 2
-
2492014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2593317-11096-00 BEARINGBEARING
-
2693315-31502-00 BEARING CYL.#15BEARING CYL.#15
-
2793102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
283D8-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
2992902-08600-00 WASHER, PLATEWASHER, PLATE
-
3099002-07600-00 CLIPCLIP
-
315S7-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
3292014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
333D8-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
343D8-1541A-01-00 STAY, CRANKCASE COVER 1STAY, CRANKCASE COVER 1
-
353D8-15337-02-00 DAMPER 4DAMPER 4
-
3691312-08035-00 BOLTBOLT
-
3799590-10114-00 PIN, DOWELPIN, DOWEL
-
385S7-15426-00-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
3990480-13022-00 GROMMETGROMMET
-
4090387-06043-00 COLLARCOLLAR
-
4190111-06130-00 BOLT, HEX.SOCKET BUTTONBOLT, HEX.SOCKET BUTTON
-
4293317-11287-00 BEARINGBEARING
-
4393102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
443D8-15544-00-00 STAY 1STAY 1
-
455S7-15499-00-00 PROTECTOR, COVERPROTECTOR, COVER
-
465S7-15789-00-00 ...DAMPER...DAMPER
-
471TP-15470-00-00 AIR DUCT ASSYAIR DUCT ASSY
-
481TP-15113-00-00 ...PLATE...PLATE
-
495S7-15316-00-00 ...DAMPER 1...DAMPER 1
-
5097702-40014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
5197702-40010-00 ...SCREW, TAPPING...SCREW, TAPPING
