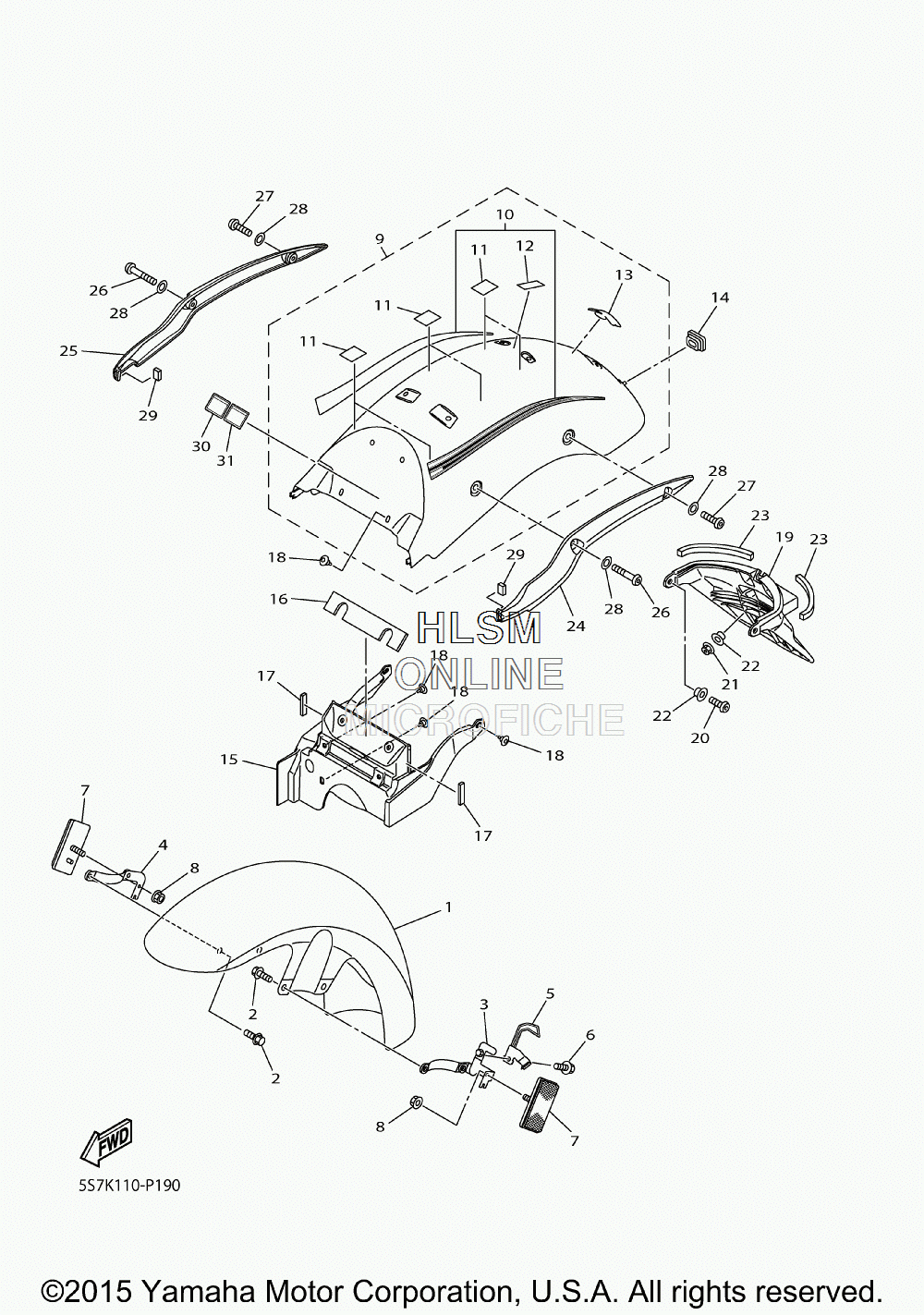

FENDER - FRONT / REAR для Yamaha V STAR 950 - 2015 года выпуска
-
№АртикулНазвание
-
15S7-21510-01-P0 FRONT FENDER COMP. (FOR SMX)FRONT FENDER COMP. (FOR SMX)
-
15S7-21510-01-PA FRONT FENDER COMP. (FOR DYRC4)FRONT FENDER COMP. (FOR DYRC4)
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
35S7-21587-00-00 STAY 1STAY 1
-
45S7-21588-00-00 STAY 2STAY 2
-
53D8-21597-00-00 HOLDER,WIRE 1HOLDER,WIRE 1
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
95S7-W2161-22-P0 REAR FENDER COMP. (FOR SMX)REAR FENDER COMP. (FOR SMX)
-
95S7-W2161-22-PA REAR FENDER COMP. (FOR DYRC4)REAR FENDER COMP. (FOR DYRC4)
-
105S7-2165A-B0-00 ......GRAPHIC SET, REAR FENDER (FOR SMX)......GRAPHIC SET, REAR FENDER (FOR SMX)
-
105S7-2165A-C0-00 ......GRAPHIC SET, REAR FENDER (FOR DYRC4)......GRAPHIC SET, REAR FENDER (FOR DYRC4)
-
115PX-21669-01-00 ...SEAL...SEAL
-
125S7-21669-00-00 ...SEAL...SEAL
-
135S7-2163G-00-00 ...EMBLEM 1...EMBLEM 1
-
1490480-13027-00 GROMMETGROMMET
-
155S7-21629-00-P0 GUARD, MUD (FOR SMX)GUARD, MUD (FOR SMX)
-
155S7-21629-00-PA GUARD, MUD (FOR DYRC4)GUARD, MUD (FOR DYRC4)
-
165S7-21638-00-00 DAMPER 1DAMPER 1
-
175S7-21639-00-00 DAMPER 2DAMPER 2
-
1890269-07077-00 RIVETRIVET
-
195S7-2162R-00-00 FENDER 2FENDER 2
-
2092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290387-07717-00 COLLARCOLLAR
-
234DN-21669-00-00 SEALSEAL
-
245S7-2164F-01-00 STAY 1STAY 1
-
255S7-2164G-01-00 STAY 2STAY 2
-
2692014-08045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2792014-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2892990-08200-00 WASHER, PLAINWASHER, PLAIN
-
293MA-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
305RU-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
3134B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
