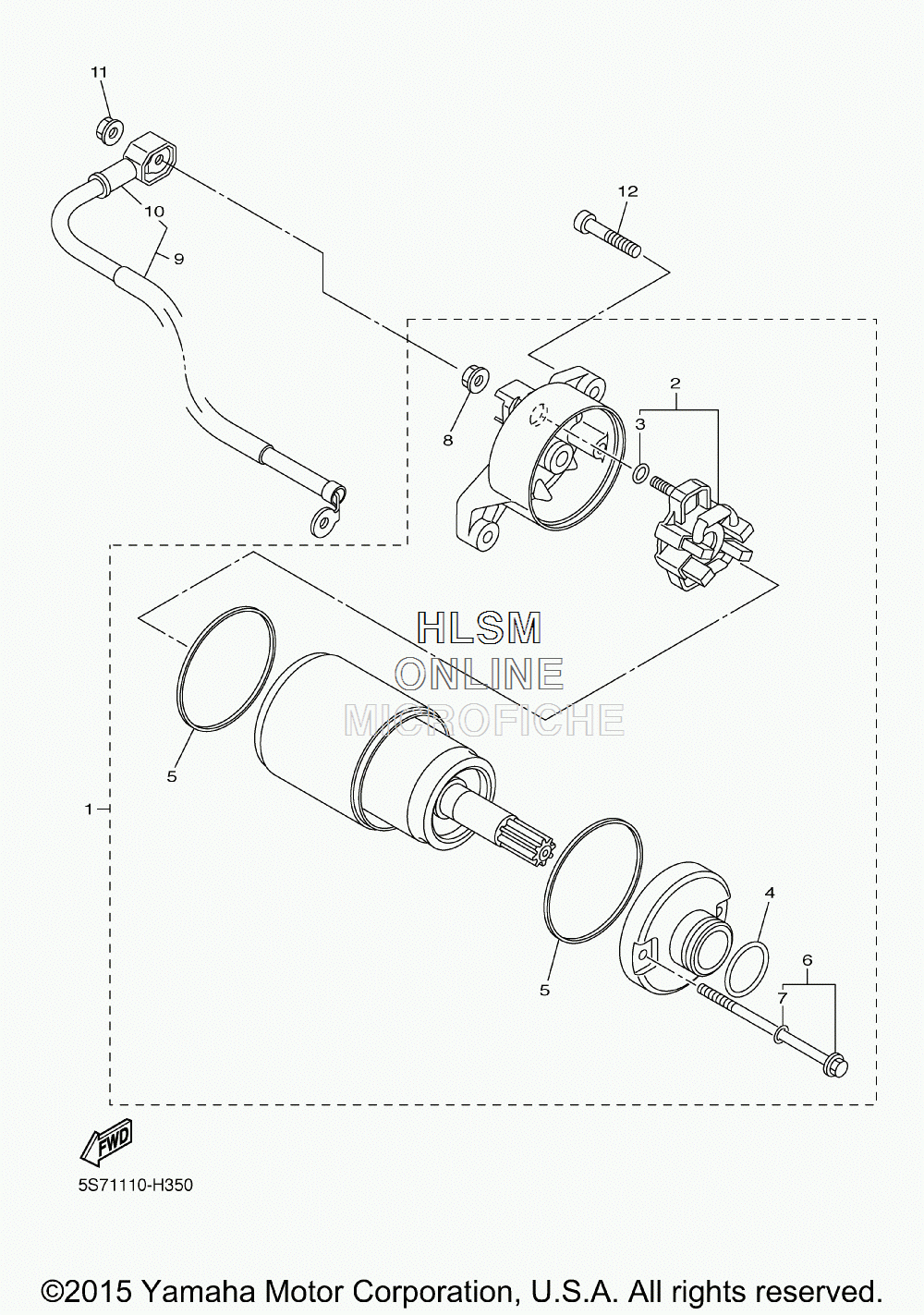

STARTING MOTOR для Yamaha V STAR 950 - 2015 года выпуска
-
№АртикулНазвание
-
15S7-81890-10-00 MOTOR ASSYMOTOR ASSY
-
24B5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
33TB-81847-00-00 ......O-RING......O-RING
-
41FK-81847-00-00 ...O-RING...O-RING
-
535C-81844-00-00 ......GASKET......GASKET
-
628P-81826-00-00 ...BOLT...BOLT
-
73TB-81847-00-00 ......O-RING......O-RING
-
84XV-8182A-00-00 ...NUT...NUT
-
95S7-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
104B5-81871-00-00 ...CAP...CAP
-
114XV-8182A-00-00 NUTNUT
-
1291314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
