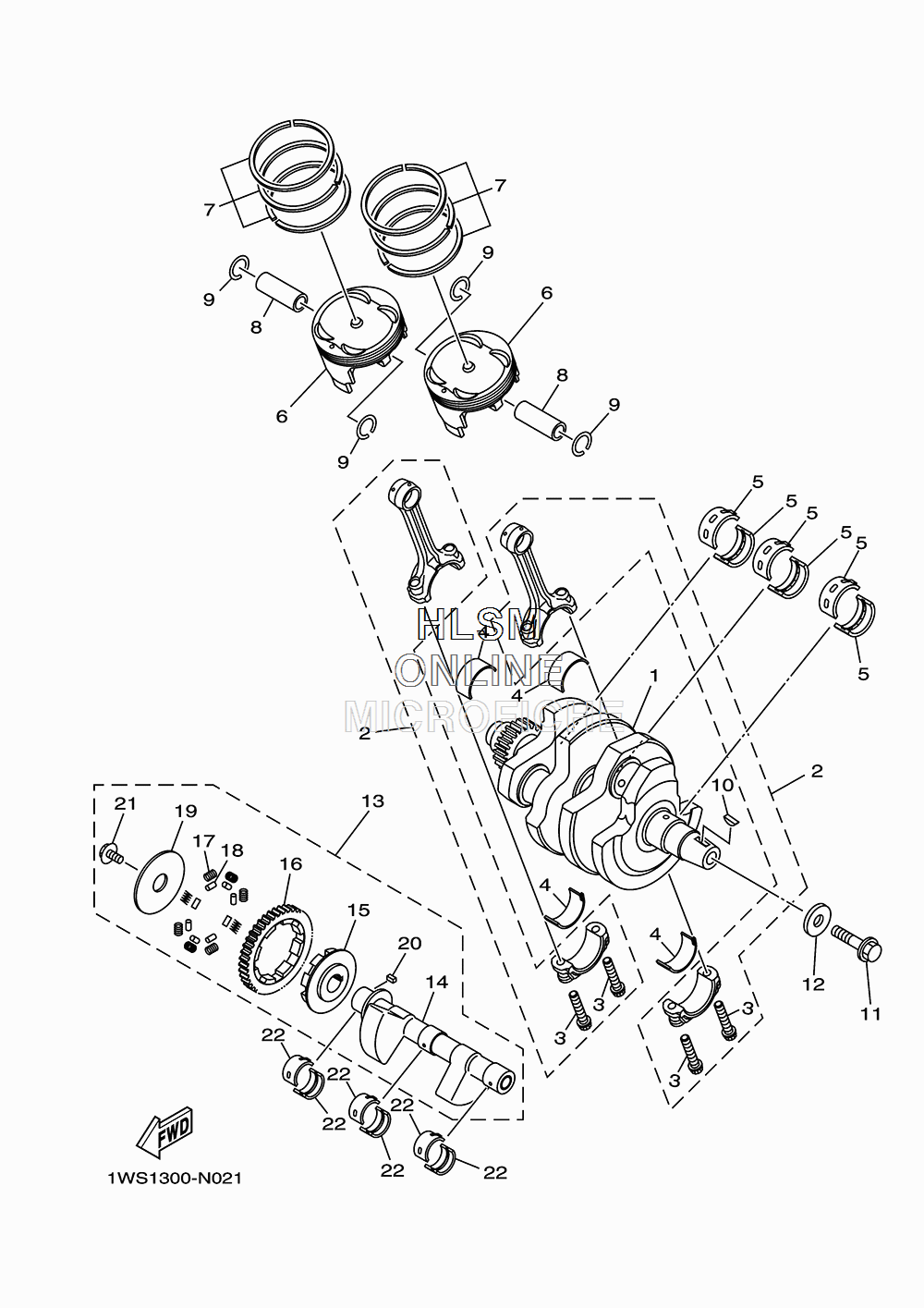

CRANKSHAFT - PISTON для Yamaha FZ-07 [FZ07GB] - 2016 года выпуска

№

Артикул

Название
1

1WS-11400-00-00 CRANKSHAFT ASSY

CRANKSHAFT ASSY

89 450 ₽
2

1WS-11650-00-00 CONNECTING ROD ASSY

CONNECTING ROD ASSY

11 960 ₽
3

1RC-11654-00-00 ...BOLT, CONNECTING ROD

...BOLT, CONNECTING ROD

400 ₽
4

1RC-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)

PLANE BEARING, CONNECTING ROD (BLUE)

1 030 ₽
4

1RC-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)

PLANE BEARING, CONNECTING ROD (GREEN)

1 030 ₽
4

1RC-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)

PLANE BEARING, CONNECTING ROD (BROWN)

1 030 ₽
4

1RC-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)

PLANE BEARING, CONNECTING ROD (BLACK)

1 030 ₽
5

3GM-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)

PLANE BEARING, CRANKSHAFT 1 (BLUE)

1 880 ₽
5

3GM-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)

PLANE BEARING, CRANKSHAFT 1 (BLACK)

2 040 ₽
5

3GM-11416-B0-00 PLANE BEARING, CRANKSHAFT 1 (PURPLE)

PLANE BEARING, CRANKSHAFT 1 (PURPLE)

1 880 ₽
5

3GM-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)

PLANE BEARING, CRANKSHAFT 1 (WHITE)

1 880 ₽
5

3GM-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)

PLANE BEARING, CRANKSHAFT 1 (BROWN)

2 040 ₽
6

1WS-11631-00-00 PISTON (STD)

PISTON (STD)

8 500 ₽
7

1WS-11603-00-00 PISTON RING SET (STD)

PISTON RING SET (STD)

2 200 ₽
8

1WS-11633-00-00 PIN, PISTON

PIN, PISTON

1 380 ₽
9

93450-19052-00 ...CIRCLIP

...CIRCLIP

190 ₽
10

90280-05029-00 KEY, WOODRUFF

KEY, WOODRUFF

1 010 ₽
11

90105-126A8-00 BOLT WASHER BASED

BOLT WASHER BASED

1 470 ₽
12

90201-12008-00 WASHER, PLATE

WASHER, PLATE

2 200 ₽
13

1WS-11500-00-00 BALANCER ASSY

BALANCER ASSY

41 100 ₽
14

1WS-11454-00-00 ...WEIGHT 1

...WEIGHT 1

23 300 ₽
15

1WS-11496-00-00 ...BOSS, BUFFER

...BOSS, BUFFER

6 450 ₽
16

1WS-11531-00-00 ...GEAR, BALANCE WEIGHT

...GEAR, BALANCE WEIGHT

9 920 ₽
17

90501-22721-00 ...SPRING, COMPRESSION

...SPRING, COMPRESSION

340 ₽
18

93605-10090-00 PIN, DOWEL

PIN, DOWEL

320 ₽
19

1WS-11533-00-00 ...PLATE, ABSORBER

...PLATE, ABSORBER

1 110 ₽
20

90282-04001-00 KEY, STRAIGHT

KEY, STRAIGHT

590 ₽
21

90105-10445-00 BOLT WASHER BASED

BOLT WASHER BASED

1 200 ₽
22

2S3-11413-00-00 METAL, BALANCE WEIGHT (BLUE)

METAL, BALANCE WEIGHT (BLUE)

920 ₽
22

2S3-11413-10-00 METAL, BALANCE WEIGHT (BLACK)

METAL, BALANCE WEIGHT (BLACK)

920 ₽
22

2S3-11413-40-00 METAL, BALANCE WEIGHT (YELLOW)

METAL, BALANCE WEIGHT (YELLOW)

920 ₽
22

2S3-11413-30-00 METAL, BALANCE WEIGHT (GREEN)

METAL, BALANCE WEIGHT (GREEN)

920 ₽
22

2S3-11413-20-00 METAL, BALANCE WEIGHT (BROWN)

METAL, BALANCE WEIGHT (BROWN)

920 ₽
