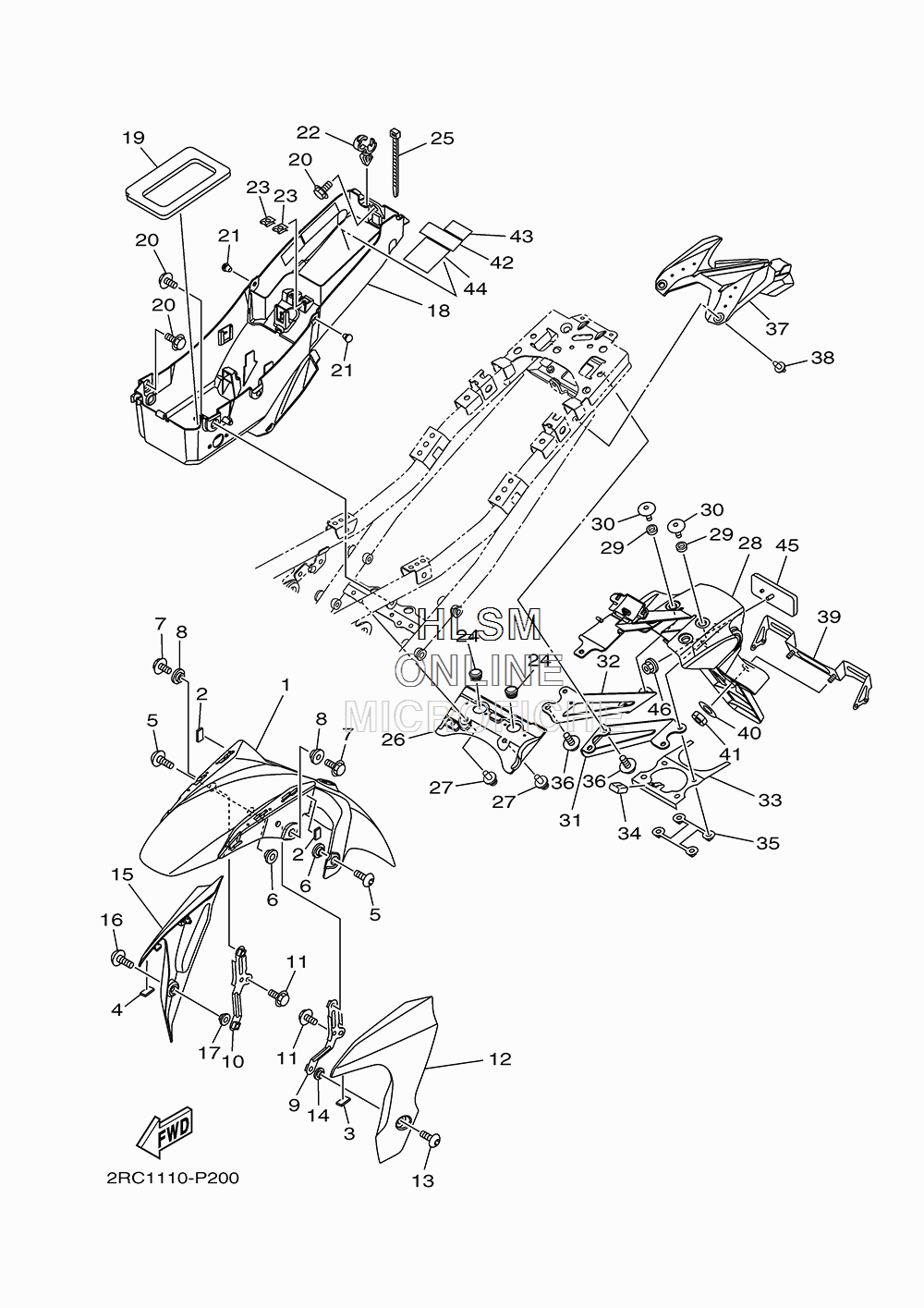

FENDER - FRONT / REAR для Yamaha FZ-07 [FZ07GB] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-21511-00-00 FENDER, FRONTFENDER, FRONT
-
290520-01002-00 DAMPER, PLATEDAMPER, PLATE
-
390520-01002-00 DAMPER, PLATEDAMPER, PLATE
-
490520-01002-00 DAMPER, PLATEDAMPER, PLATE
-
590111-06151-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
690387-08079-00 COLLARCOLLAR
-
790119-06241-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890387-06066-00 COLLARCOLLAR
-
91WS-21512-00-00 BRACKET, FENDERBRACKET, FENDER
-
101WS-21612-00-00 BRACKET, FENDERBRACKET, FENDER
-
1195022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
121WS-21513-00-P6 STAY, FENDER 1 (BLACK METALLIC X) (FOR SMX)STAY, FENDER 1 (BLACK METALLIC X) (FOR SMX)
-
1390149-06105-00 SCREWSCREW
-
1490387-06107-00 COLLARCOLLAR
-
151WS-21514-00-P6 STAY, FENDER 2 (BLACK METALLIC X) (FOR SMX)STAY, FENDER 2 (BLACK METALLIC X) (FOR SMX)
-
1690149-06105-00 SCREWSCREW
-
1790387-06107-00 COLLARCOLLAR
-
181WS-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
191WS-21639-00-00 DAMPER 2DAMPER 2
-
2090109-06202-00 BOLTBOLT
-
2190338-06018-00 PLUGPLUG
-
2290464-18002-00 CLAMPCLAMP
-
2390183-04039-00 NUT, SPRINGNUT, SPRING
-
2490480-14100-00 GROMMETGROMMET
-
2590465-13275-00 CLAMPCLAMP
-
261WS-21642-00-00 GUARD, FLAPGUARD, FLAP
-
2790269-06002-00 RIVETRIVET
-
281WS-21629-00-00 GUARD, MUDGUARD, MUD
-
2990387-06372-00 COLLARCOLLAR
-
3090111-06089-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
311WS-2164F-00-00 STAY 1STAY 1
-
321WS-2164G-00-00 STAY 2STAY 2
-
331WS-21682-00-00 STAY, PLATESTAY, PLATE
-
341WS-21746-00-00 DAMPERDAMPER
-
351WS-2161G-00-00 BRACKET 6BRACKET 6
-
3690105-06205-00 BOLT, FLANGEBOLT, FLANGE
-
371WS-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3890269-07008-00 RIVETRIVET
-
392RC-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4092902-06600-00 WASHER, PLATEWASHER, PLATE
-
4195602-06100-00 NUT, UNUT, U
-
423JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
433SA-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
453Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4695602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
