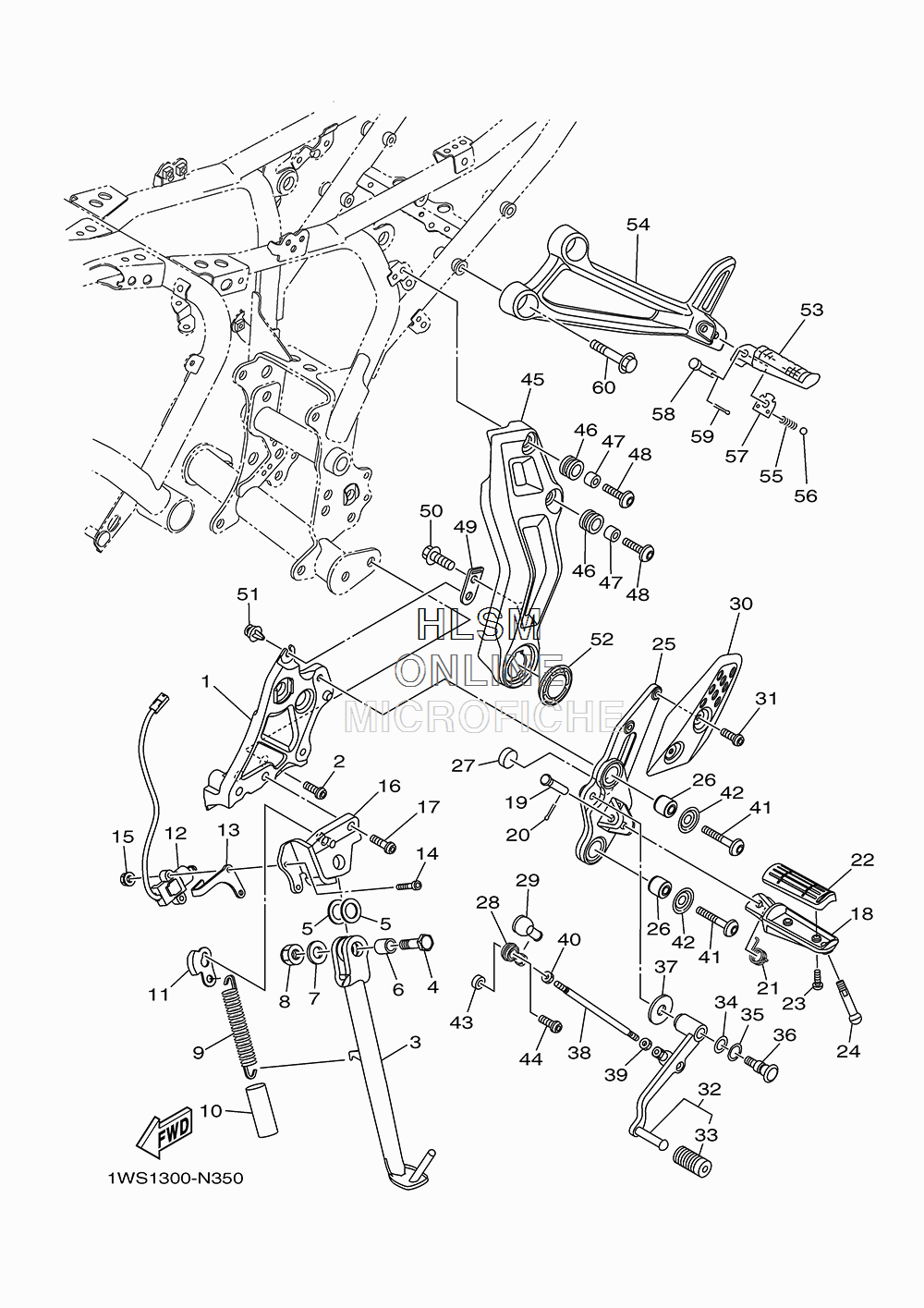

STAND W/ FOOTREST для Yamaha FZ-07 [FZ07GB] - 2016 года выпуска
-
№АртикулНазвание
-
11WS-274A3-00-00 BRACKET, ADAPTER 1BRACKET, ADAPTER 1
-
290111-10060-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
31WS-27311-00-00 STAND, SIDESTAND, SIDE
-
490101-10025-00 BOLTBOLT
-
590201-17018-00 WASHER, PLATEWASHER, PLATE
-
690387-10050-00 COLLARCOLLAR
-
790201-10035-00 WASHER, PLATEWASHER, PLATE
-
890185-10023-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990506-23018-00 SPRING, TENSIONSPRING, TENSION
-
105VX-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
115VX-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
121WS-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
131WS-2419A-00-00 HOLDERHOLDER
-
1490110-05071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
161WS-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
1790111-10058-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
181WS-27451-00-00 FOOTRESTFOOTREST
-
1991701-08040-00 PINPIN
-
2091402-25015-00 PIN, COTTERPIN, COTTER
-
2190508-18056-00 SPRING, TORSIONSPRING, TORSION
-
223YX-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2390157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2490109-086F8-00 BOLTBOLT
-
251WS-27442-00-00 BRACKET 2 (FOR SMX, MS1)BRACKET 2 (FOR SMX, MS1)
-
2636Y-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
275VX-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
285VX-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
295VX-18154-00-00 COVER, DUSTCOVER, DUST
-
301WS-27445-00-00 PLATE 1 (FOR SMX, MS1)PLATE 1 (FOR SMX, MS1)
-
3192014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
321WS-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
331WS-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
3490201-12051-00 WASHER, PLATEWASHER, PLATE
-
3590206-12074-00 WASHER, WAVEWASHER, WAVE
-
364BP-27434-01-00 BOLTBOLT
-
3790201-08053-00 WASHER, PLATEWASHER, PLATE
-
385A8-18115-00-00 ROD, SHIFTROD, SHIFT
-
3990170-06026-00 NUTNUT
-
4095314-06700-00 NUTNUT
-
4190110-08071-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4290209-08295-00 WASHER SPEC'L SHAPEWASHER SPEC'L SHAPE
-
4390387-06372-00 COLLARCOLLAR
-
4490111-06098-00 BOLT,H EX. SOCKET BUTTONBOLT,H EX. SOCKET BUTTON
-
451WS-27453-00-00 COVER 1 (FOR SMX, MS1)COVER 1 (FOR SMX, MS1)
-
4690480-14003-00 GROMMETGROMMET
-
4790387-06057-00 COLLARCOLLAR
-
4890149-06105-00 SCREWSCREW
-
491WS-27425-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
5095802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
5190269-08008-00 RIVETRIVET
-
521WS-27475-00-P0 CAP 1 (MBL2)CAP 1 (MBL2)
-
533VR-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
541WS-2741L-01-00 BRACKET 4BRACKET 4
-
5590501-12743-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5693501-04011-00 ...BALL 1/4...BALL 1/4
-
575VX-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5891702-08040-00 PIN, CLEVISPIN, CLEVIS
-
5991401-25015-00 ...PIN, COTTER...PIN, COTTER
-
6090110-08231-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
