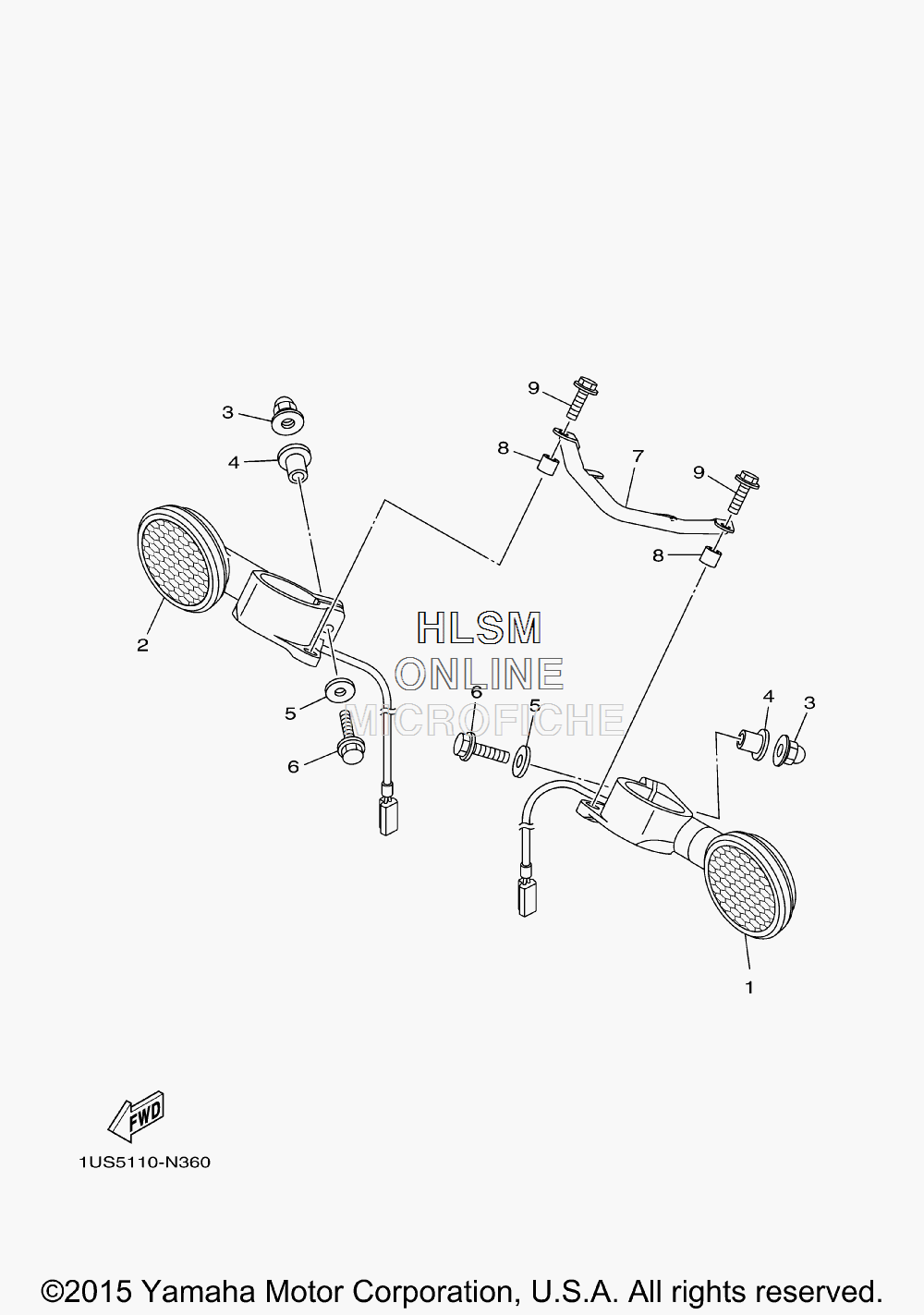

FLASHER LIGHT для Yamaha RAIDER [XV19CGR] - 2016 года выпуска
-
№АртикулНазвание
-
11US-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
21US-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
390176-06055-00 NUT, CROWNNUT, CROWN
-
490387-06076-00 COLLARCOLLAR
-
590201-06045-00 WASHER, PLATEWASHER, PLATE
-
695807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
75C7-83335-00-00 GUIDE, LEAD WIRE 1GUIDE, LEAD WIRE 1
-
890387-08085-00 COLLARCOLLAR
-
995027-08025-00 BOLT, FLANGEBOLT, FLANGE
