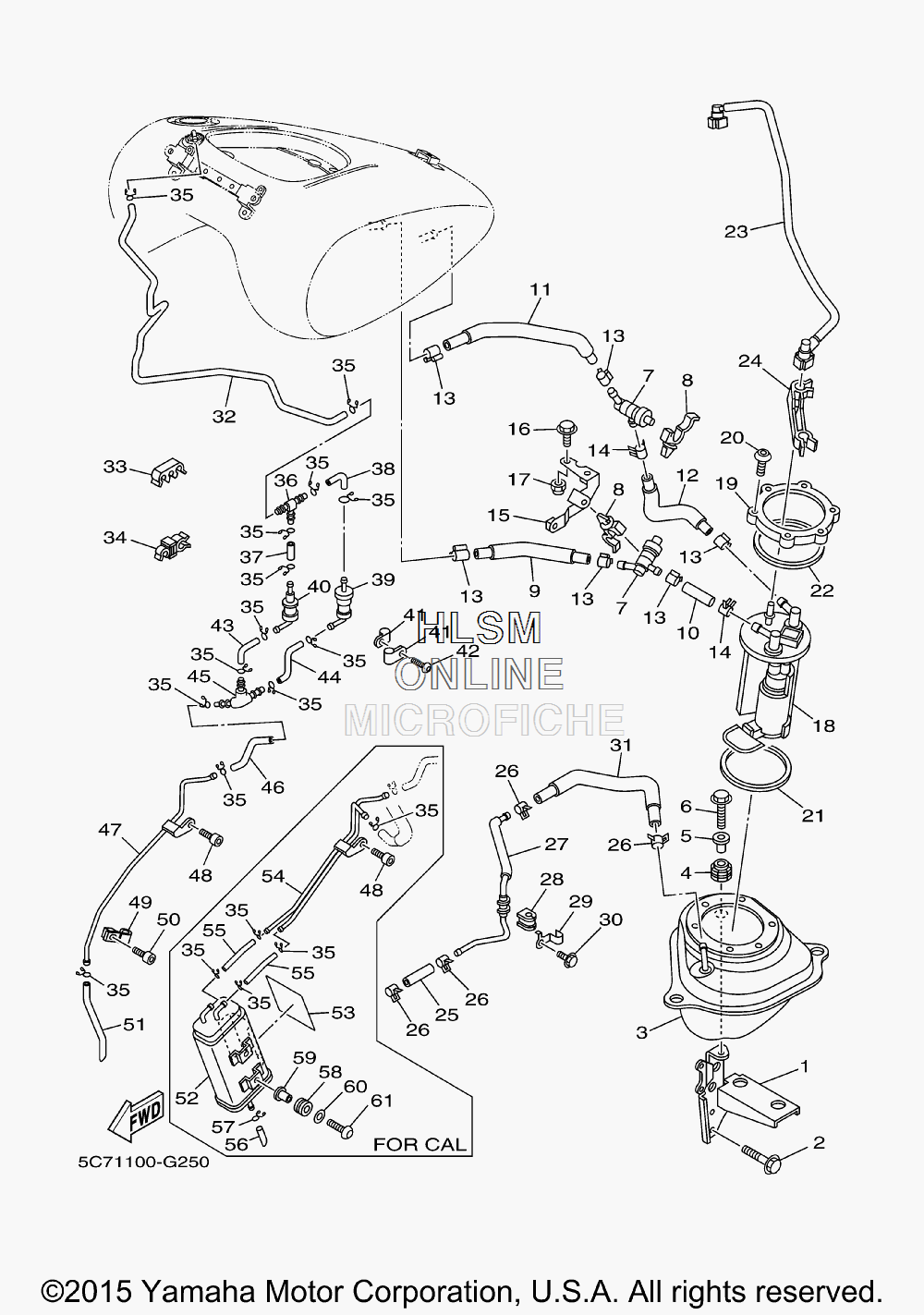

FUEL TANK 2 для Yamaha RAIDER [XV19CGR] - 2016 года выпуска
-
№АртикулНазвание
-
15C7-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
295022-08055-00 BOLT, FLANGEBOLT, FLANGE
-
31D7-24280-00-00 SUB FUEL TANKSUB FUEL TANK
-
41D7-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
590387-0700G-00 COLLARCOLLAR
-
695812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
71D7-24305-00-00 FUEL PIPE JOINT COMP. 2FUEL PIPE JOINT COMP. 2
-
890464-20010-00 CLAMPCLAMP
-
95C7-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
105C7-24312-00-00 PIPE 2PIPE 2
-
115C7-24313-00-00 PIPE 3PIPE 3
-
125C7-24314-00-00 PIPE 4PIPE 4
-
135PX-2411M-00-00 CLIPCLIP
-
1490467-16009-00 CLIPCLIP
-
151D7-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
1690119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1795307-05800-00 NUTNUT
-
181D7-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
195PX-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2090111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
215PX-24486-11-00 O-RINGO-RING
-
225PX-24145-00-00 PLATE, DAMPERPLATE, DAMPER
-
231D7-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
2490464-15004-00 CLAMPCLAMP
-
255C7-13973-00-00 PIPE, FUEL 3PIPE, FUEL 3
-
2690467-13071-00 CLIPCLIP
-
275C7-14295-00-00 PIPE, FUELPIPE, FUEL
-
285PX-14435-00-00 GROMMETGROMMET
-
295PX-14261-01-00 HOLDERHOLDER
-
3090105-06052-00 BOLT, FLANGEBOLT, FLANGE
-
315C7-13974-00-00 PIPE, FUEL 4PIPE, FUEL 4
-
325C7-24316-10-00 PIPE 6 (CALIF ONLY)PIPE 6 (CALIF ONLY)
-
325C7-24316-00-00 PIPE 6 (EXCEPT CALIF)PIPE 6 (EXCEPT CALIF)
-
3390464-11008-00 CLAMPCLAMP
-
3490464-09022-00 CLAMPCLAMP
-
3590467-09002-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3590467-09002-00 CLIP (EXCEPT CALIF)CLIP (EXCEPT CALIF)
-
3690413-06031-00 WAY 3WAY 3
-
375C7-24317-00-00 PIPE 7PIPE 7
-
385C7-24321-00-00 PIPE 10PIPE 10
-
395RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
405LV-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
4190464-15014-00 CLAMPCLAMP
-
4292012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
435C7-24322-00-00 PIPE 11PIPE 11
-
445C7-24323-00-00 PIPE 12PIPE 12
-
4590413-06002-00 WAY 3WAY 3
-
465C7-24324-00-00 PIPE 13PIPE 13
-
475C7-24325-00-00 PIPE 14 (EXCEPT CALIF)PIPE 14 (EXCEPT CALIF)
-
4891314-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
495C7-24366-00-00 CLAMP, FUEL PIPE 1 (EXCEPT CALIF)CLAMP, FUEL PIPE 1 (EXCEPT CALIF)
-
5091314-06010-00 BOLT, HEXAGON SOCKET HEAD (EXCEPT CALIF)BOLT, HEXAGON SOCKET HEAD (EXCEPT CALIF)
-
515C7-243A1-00-00 PIPE 15 (EXCEPT CALIF)PIPE 15 (EXCEPT CALIF)
-
525C7-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
535BM-21652-00-00 PROTECTOR (CALIF ONLY)PROTECTOR (CALIF ONLY)
-
545C7-243A2-00-00 PIPE 16 (CALIF ONLY)PIPE 16 (CALIF ONLY)
-
555C7-243A3-00-00 PIPE 17 (CALIF ONLY)PIPE 17 (CALIF ONLY)
-
563D8-24325-00-00 PIPE 14 (CALIF ONLY)PIPE 14 (CALIF ONLY)
-
5790467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5890480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
5990387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
6090201-06023-00 WASHER, PLATE (CALIF ONLY)WASHER, PLATE (CALIF ONLY)
-
6190111-06067-00 BOLT,HEX. SOCKET BUTTON (CALIF ONLY)BOLT,HEX. SOCKET BUTTON (CALIF ONLY)
