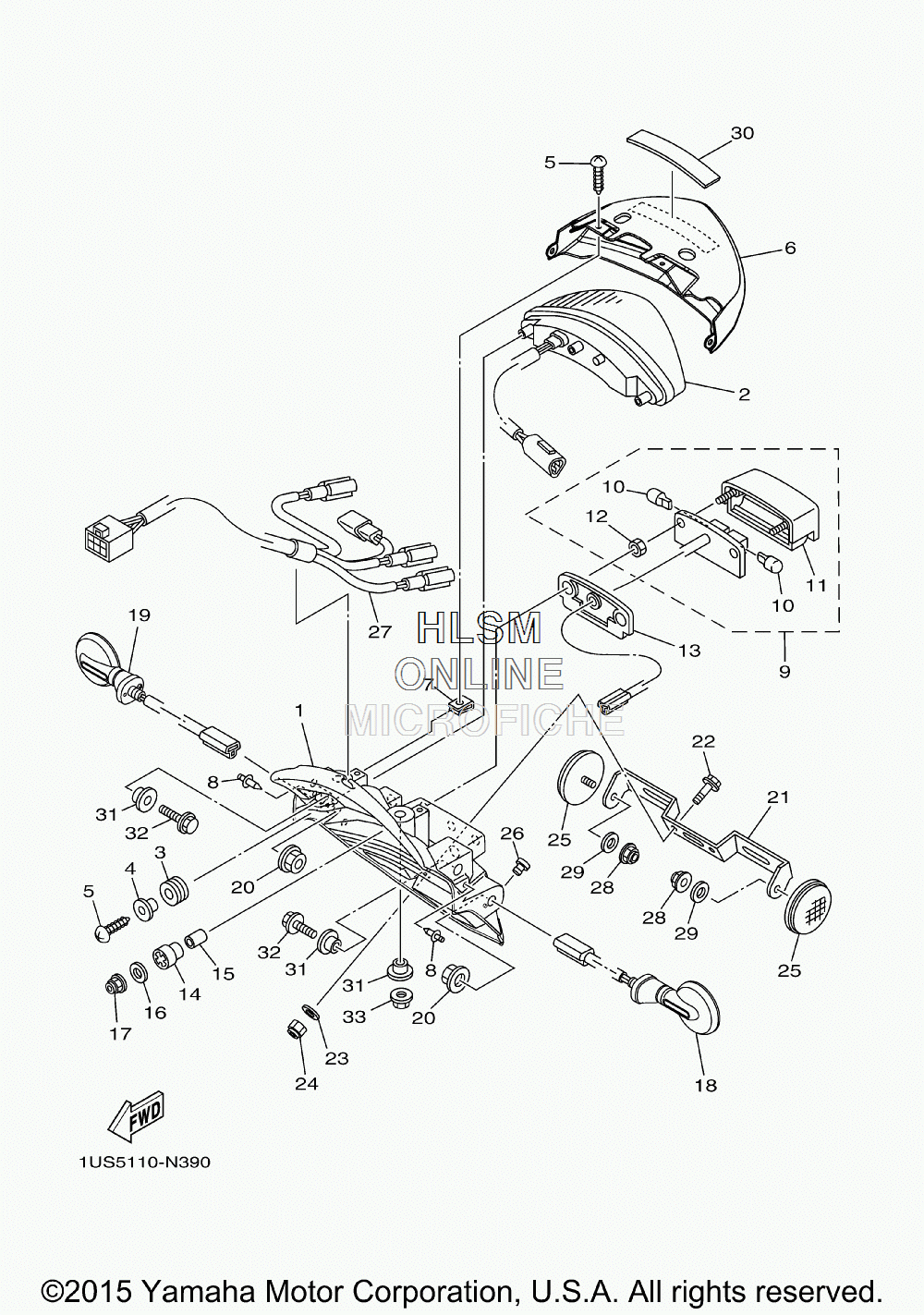

TAILLIGHT для Yamaha RAIDER [XV19CGR] - 2016 года выпуска
-
№АртикулНазвание
-
15C7-84711-00-00 BASE, TAILLIGHTBASE, TAILLIGHT
-
25C7-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
35PX-84553-00-00 DAMPERDAMPER
-
45PX-84557-00-00 COLLARCOLLAR
-
597702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
65C7-84716-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
890269-06012-00 RIVETRIVET
-
95C7-84745-00-00 LICENCE LIGHT UNIT ASSYLICENCE LIGHT UNIT ASSY
-
105PX-84744-00-00 ...BULB (12V-2CP)...BULB (12V-2CP)
-
115PX-84749-00-00 ...BODY, LICENCE LIGHT...BODY, LICENCE LIGHT
-
125PX-84748-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
135PX-84742-00-00 SEAT, BASESEAT, BASE
-
143F9-84553-00-00 DAMPERDAMPER
-
1590387-06241-00 COLLARCOLLAR
-
1690201-05025-00 WASHER, PLATEWASHER, PLATE
-
1795602-05100-00 NUT, UNUT, U
-
181US-83330-01-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
191US-83340-01-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
2095702-12500-00 NUT, FLANGENUT, FLANGE
-
215C7-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2295027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-06380-00 WASHER PLAINWASHER PLAIN
-
2495607-06100-00 NUT, UNUT, U
-
25449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
2690338-06018-00 PLUGPLUG
-
271US-84717-00-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
2895607-05200-00 NUT, U FLANGENUT, U FLANGE
-
2990201-051K1-00 WASHER, PLATEWASHER, PLATE
-
301AE-2834E-00-00 DAMPER 3DAMPER 3
-
3190387-06153-00 COLLARCOLLAR
-
3290105-06085-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
