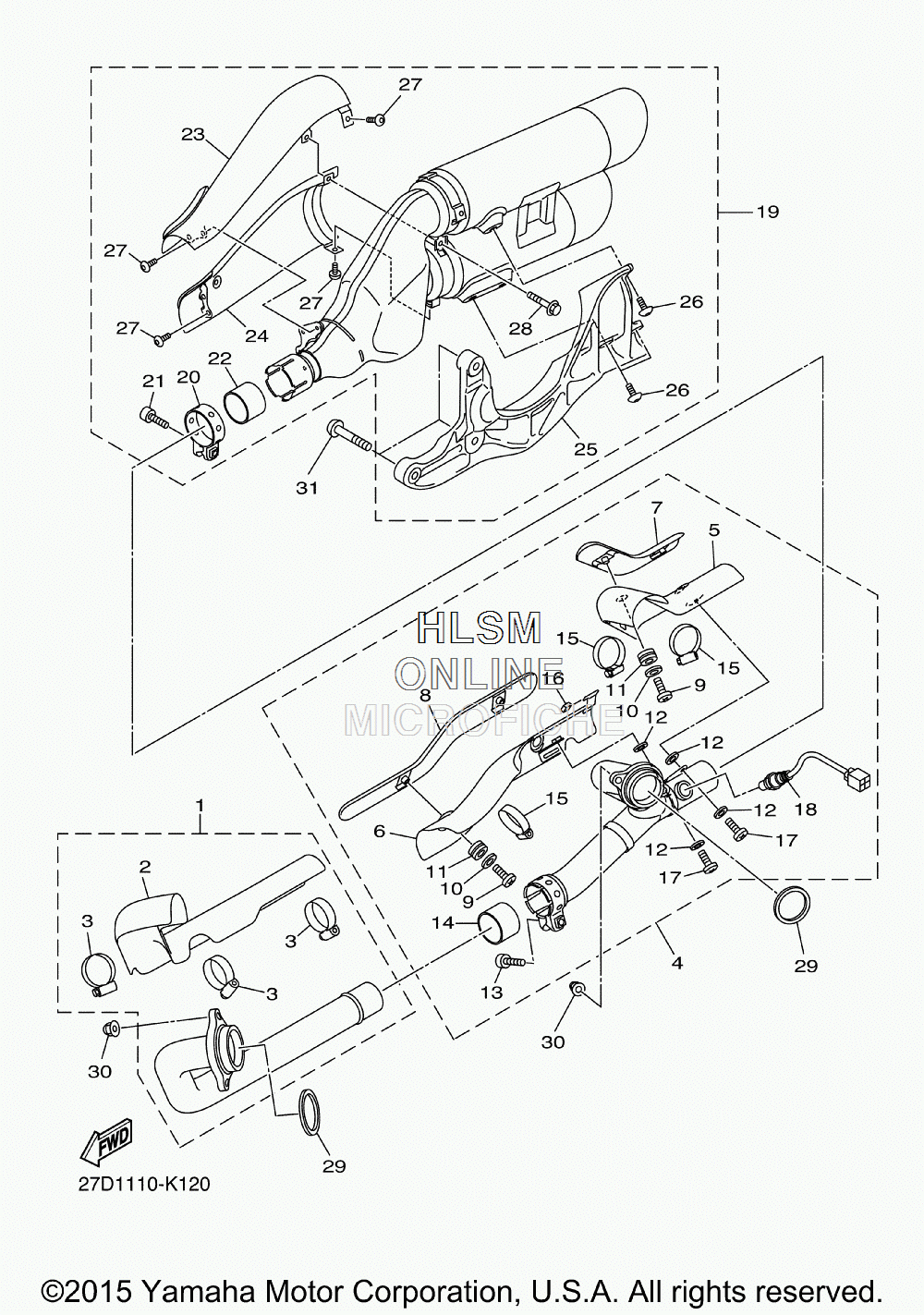

EXHAUST для Yamaha STRYKER (BLUE) [XVS13CGL] - 2016 года выпуска
-
№АртикулНазвание
-
127D-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
227D-14718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
390450-44001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
427D-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
527D-14728-00-00 ...PROTECTOR, MUFFLER 2...PROTECTOR, MUFFLER 2
-
627D-14738-00-00 ...PROTECTOR, MUFFLER 3...PROTECTOR, MUFFLER 3
-
73D8-14748-10-00 ...PROTECTOR, MUFFLER 4...PROTECTOR, MUFFLER 4
-
83D8-14628-10-00 ...PROTECTOR, EXHAUST PIPE...PROTECTOR, EXHAUST PIPE
-
998980-06012-00 ...SCREW, BIND...SCREW, BIND
-
1090201-064K6-00 ...WASHER, PLATE...WASHER, PLATE
-
1190480-17005-00 ...GROMMET...GROMMET
-
1290201-05015-00 ...WASHER, PLATE...WASHER, PLATE
-
1391314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
145PX-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
1590450-44001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
163MA-24181-00-00 ...DAMPER, LOCATING 1...DAMPER, LOCATING 1
-
1798980-06016-00 ...SCREW, BIND...SCREW, BIND
-
185D1-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
1927D-14710-01-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
203D8-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
2191314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
225VY-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
2327D-147A8-10-00 ...PROTECTOR, SILENCER 2...PROTECTOR, SILENCER 2
-
2427D-14758-10-00 ...PROTECTOR, SILENCER...PROTECTOR, SILENCER
-
2527D-14772-00-00 ...STAY, MUFFLER 2...STAY, MUFFLER 2
-
2690111-08043-00 ...BOLT, HEX. SOCKET BUTTON...BOLT, HEX. SOCKET BUTTON
-
2792014-06010-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
2895802-06035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
293EG-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
3090176-08006-00 NUT, CROWNNUT, CROWN
-
3190111-10032-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
