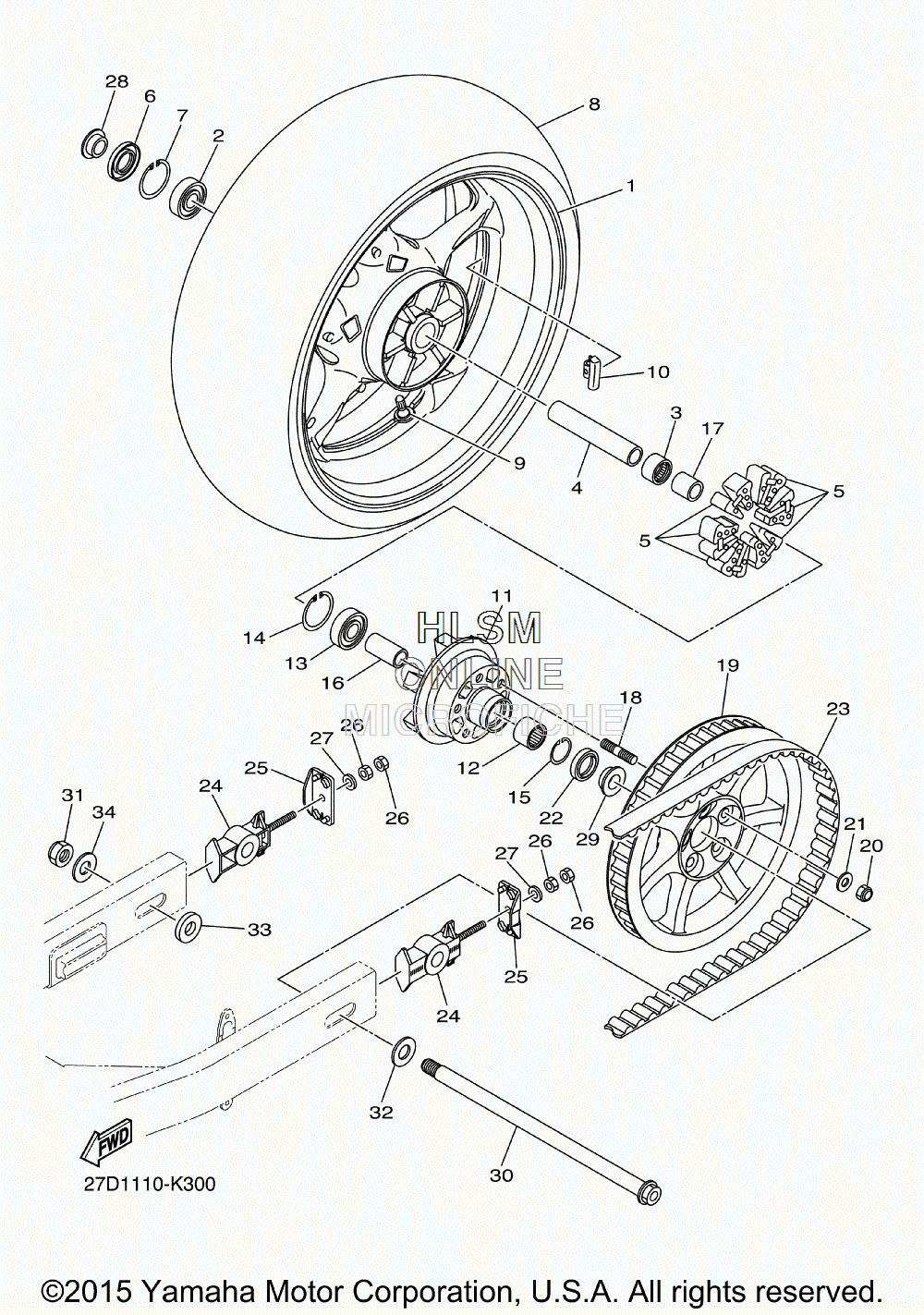

WHEEL - REAR для Yamaha STRYKER (BLUE) [XVS13CGL] - 2016 года выпуска
-
№АртикулНазвание
-
127D-25338-01-P0 CAST WHEEL, REAR (S8)CAST WHEEL, REAR (S8)
-
293306-30437-00 BEARINGBEARING
-
393320-32811-00 BEARINGBEARING
-
41D7-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
51D7-25364-00-00 DAMPERDAMPER
-
693106-28001-00 OIL SEALOIL SEAL
-
799009-52500-00 CIRCLIPCIRCLIP
-
894121-18015-00 TIRE (210/40R18M/C 73H EXEDRA) BRIDGESTONETIRE (210/40R18M/C 73H EXEDRA) BRIDGESTONE
-
993900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
105MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
105MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
105MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
1127D-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1293311-32698-00 BEARINGBEARING
-
1393306-30437-00 BEARINGBEARING
-
1499009-52500-00 CIRCLIPCIRCLIP
-
1593450-35163-00 CIRCLIPCIRCLIP
-
1627D-25376-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
171D7-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1895612-12630-00 BOLT, STUDBOLT, STUD
-
193D8-25470-01-00 SPROCKET, DRIVEN (70T)SPROCKET, DRIVEN (70T)
-
2095614-12100-00 NUT, UNUT, U
-
2190201-12045-00 WASHER, PLATEWASHER, PLATE
-
2293106-30004-00 OIL SEAL DD-TYPEOIL SEAL DD-TYPE
-
233D8-46241-00-00 V-BELTV-BELT
-
245S7-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
255S7-2539F-00-00 PLATE 1PLATE 1
-
2695304-08600-00 NUTNUT
-
2792902-08600-00 WASHER, PLATEWASHER, PLATE
-
2890387-20033-00 COLLARCOLLAR
-
2990387-202X9-00 COLLARCOLLAR
-
305S7-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3190185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-20029-00 WASHER, PLATEWASHER, PLATE
-
3327D-2583B-00-00 COLLAR, CALIPERCOLLAR, CALIPER
-
3490201-18029-00 WASHER, PLATEWASHER, PLATE
