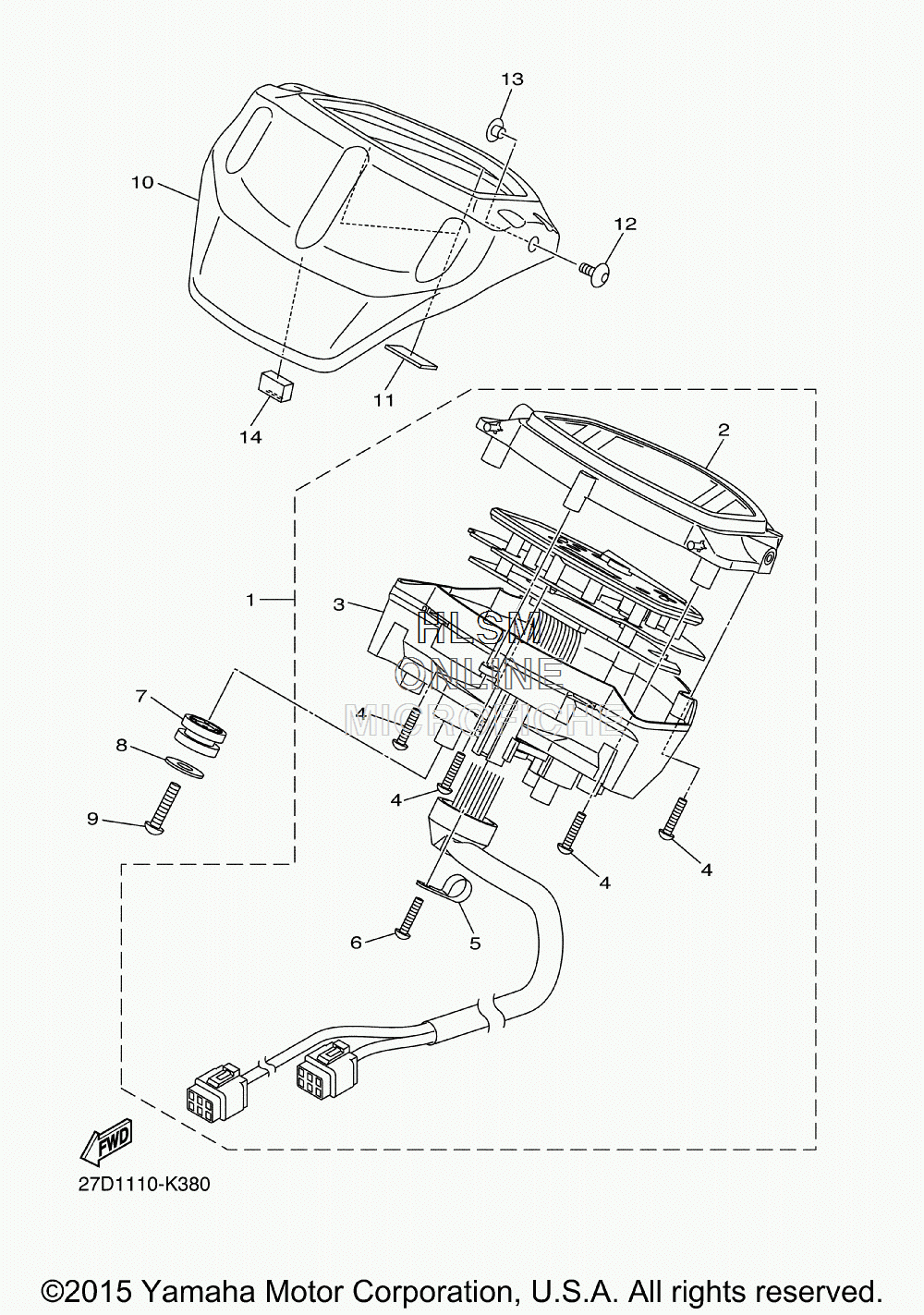

INSTRUMENT PANEL для Yamaha STRYKER (BLUE) [XVS13CGL] - 2016 года выпуска
-
№АртикулНазвание
-
127D-83500-00-00 METER ASSY (MPH)METER ASSY (MPH)
-
23D8-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
327D-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
497702-30014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
54NK-8357E-00-00 ...CLAMP...CLAMP
-
697707-40014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
74XV-83513-00-00 DAMPERDAMPER
-
890201-05029-00 WASHER, PLATEWASHER, PLATE
-
997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1027D-83559-00-00 COVER, METERCOVER, METER
-
113D8-83541-00-00 DAMPERDAMPER
-
1290110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1390387-05035-00 COLLARCOLLAR
-
143MA-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
