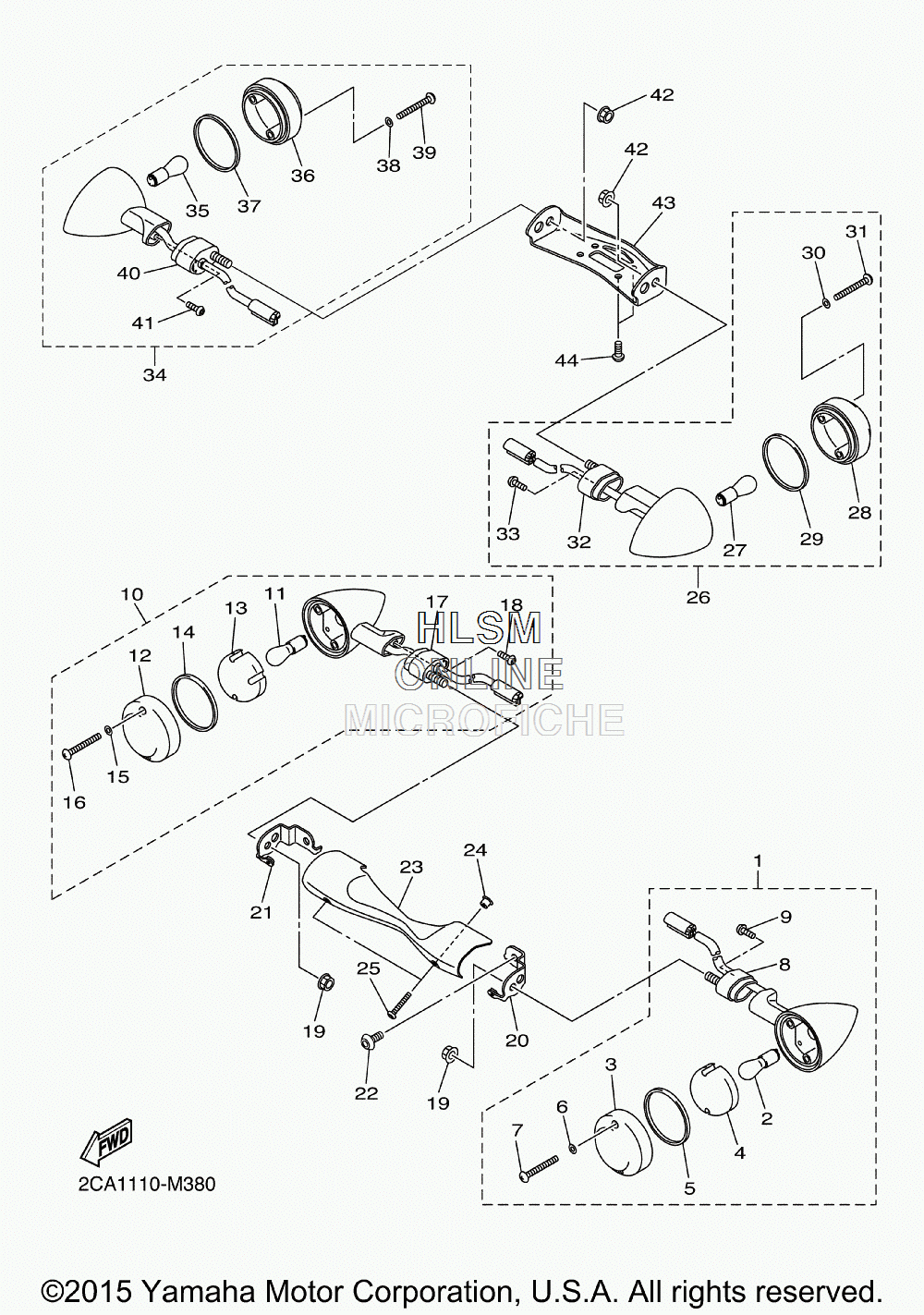

FLASHER LIGHT для Yamaha V STAR 1300 DELUXE (BLUE) [XVS13BGG] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
33D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
43D8-8333L-00-00 ...LENS, INNER 1...LENS, INNER 1
-
53D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
63D8-83348-00-00 ...WASHER...WASHER
-
797702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
83D8-83369-00-00 ...STAY, FLASHER 2...STAY, FLASHER 2
-
997702-40514-00 ...SCREW, TAPPING...SCREW, TAPPING
-
103D8-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
111A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
123D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
133D8-8333L-00-00 ...LENS, INNER 1...LENS, INNER 1
-
143D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
153D8-83348-00-00 ...WASHER...WASHER
-
1697702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
173D8-83369-00-00 ...STAY, FLASHER 2...STAY, FLASHER 2
-
1897702-40514-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1995702-10500-00 NUT, FLANGENUT, FLANGE
-
203D8-83318-20-00 STAY, FLASHER 1STAY, FLASHER 1
-
213D8-83328-10-00 STAY, FLASHER 2STAY, FLASHER 2
-
2292012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
233D8-23122-20-00 COVER, OUTER 1COVER, OUTER 1
-
2490387-06255-00 COLLARCOLLAR
-
2590111-05024-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
263D8-83330-20-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
273D8-83311-00-00 ...BULB, FLASHER (12V21W)...BULB, FLASHER (12V21W)
-
283D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
293D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
303D8-83348-00-00 ...WASHER...WASHER
-
3197702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
323D8-83369-00-00 ...STAY, FLASHER 2...STAY, FLASHER 2
-
3397702-40514-00 ...SCREW, TAPPING...SCREW, TAPPING
-
343D8-83340-20-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
353D8-83311-00-00 ...BULB, FLASHER (12V21W)...BULB, FLASHER (12V21W)
-
363D8-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
373D8-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
383D8-83348-00-00 ...WASHER...WASHER
-
3997702-40630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
403D8-83369-00-00 ...STAY, FLASHER 2...STAY, FLASHER 2
-
4197702-40514-00 ...SCREW, TAPPING...SCREW, TAPPING
-
4295702-10500-00 NUT, FLANGENUT, FLANGE
-
433D8-83368-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
4490111-06016-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
