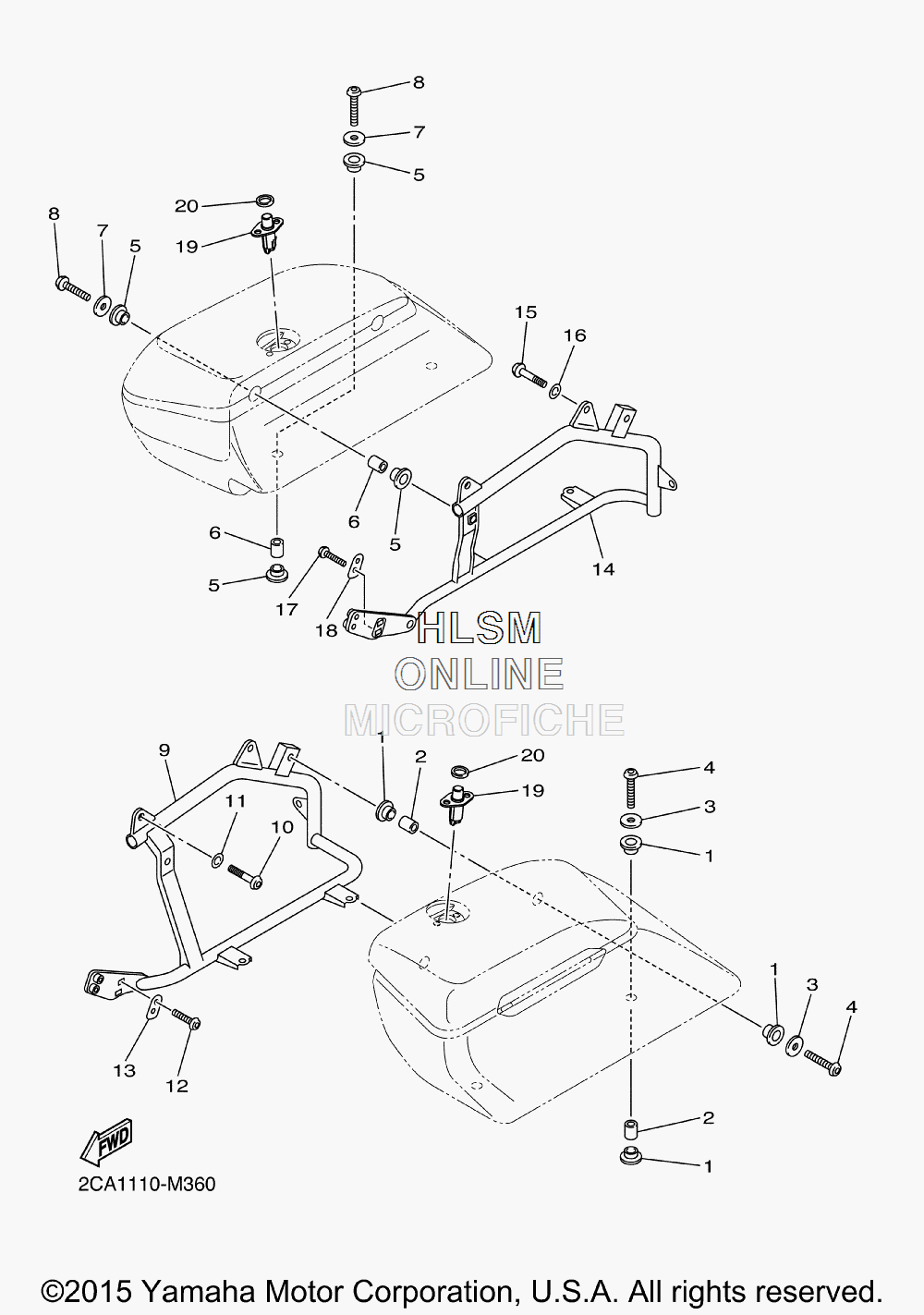

SADDLEBAGS для Yamaha V STAR 1300 DELUXE (BLUE) [XVS13BGG] - 2016 года выпуска
-
№АртикулНазвание
-
190480-20004-00 GROMMETGROMMET
-
290387-08077-00 COLLARCOLLAR
-
390201-065G8-00 WASHER, PLATEWASHER, PLATE
-
492012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590480-20004-00 GROMMETGROMMET
-
690387-08077-00 COLLARCOLLAR
-
790201-065G8-00 WASHER, PLATEWASHER, PLATE
-
892012-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
95S6-28473-01-00 FRAME, SADDLEBAG 1FRAME, SADDLEBAG 1
-
1092012-08065-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1192902-08200-00 WASHERWASHER
-
1290111-08046-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
135S6-28417-00-00 PLATEPLATE
-
145S6-28474-01-00 FRAME, SADDLEBAG 2FRAME, SADDLEBAG 2
-
1592012-08065-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1692902-08200-00 WASHERWASHER
-
1790111-08046-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
185S6-28417-00-00 PLATEPLATE
-
195S6-28408-00-00 LOCK ASSY. 1LOCK ASSY. 1
-
205S6-28428-00-00 SEAL 1SEAL 1
