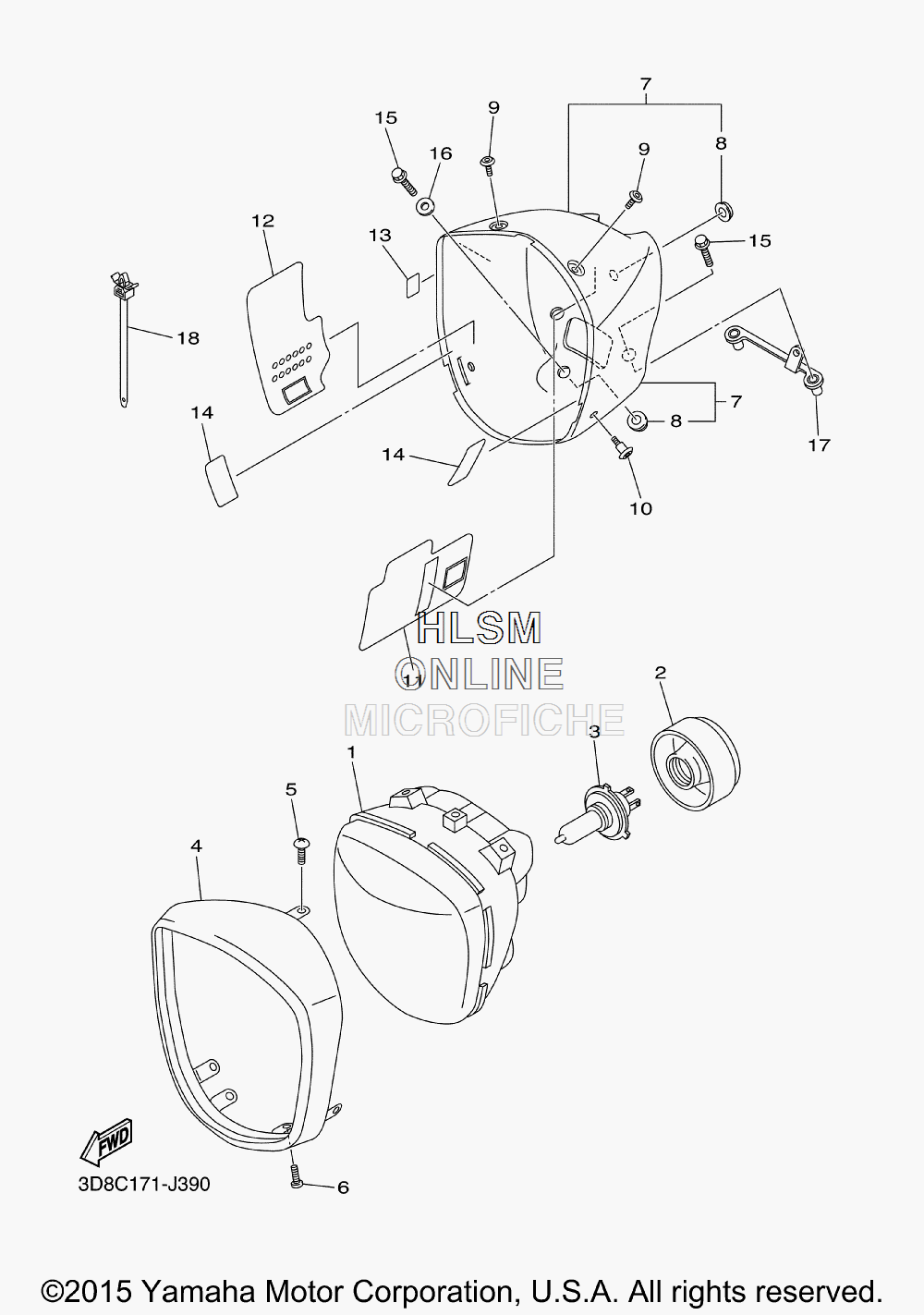

HEADLIGHT для Yamaha V STAR 1300 DELUXE (BLUE) [XVS13BGG] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-84320-00-00 LENS ASSYLENS ASSY
-
25JW-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
32F9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
43D8-84315-10-33 RIM, HEADLIGHT (YB)RIM, HEADLIGHT (YB)
-
598502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
697702-40612-00 SCREW, TAPPINGSCREW, TAPPING
-
73D8-84330-20-33 BODY ASSY (YB)BODY ASSY (YB)
-
842X-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
990111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090111-05020-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
113D8-8411T-00-00 HOLDER, 1HOLDER, 1
-
123D8-8411U-00-00 HOLDER, 2HOLDER, 2
-
133MA-27491-00-00 PROTECTORPROTECTOR
-
143D8-21575-00-00 SEAL 1SEAL 1
-
1595022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1690387-06175-00 COLLARCOLLAR
-
173D8-84387-00-00 HOLDERHOLDER
-
1890464-14006-00 CLAMPCLAMP
