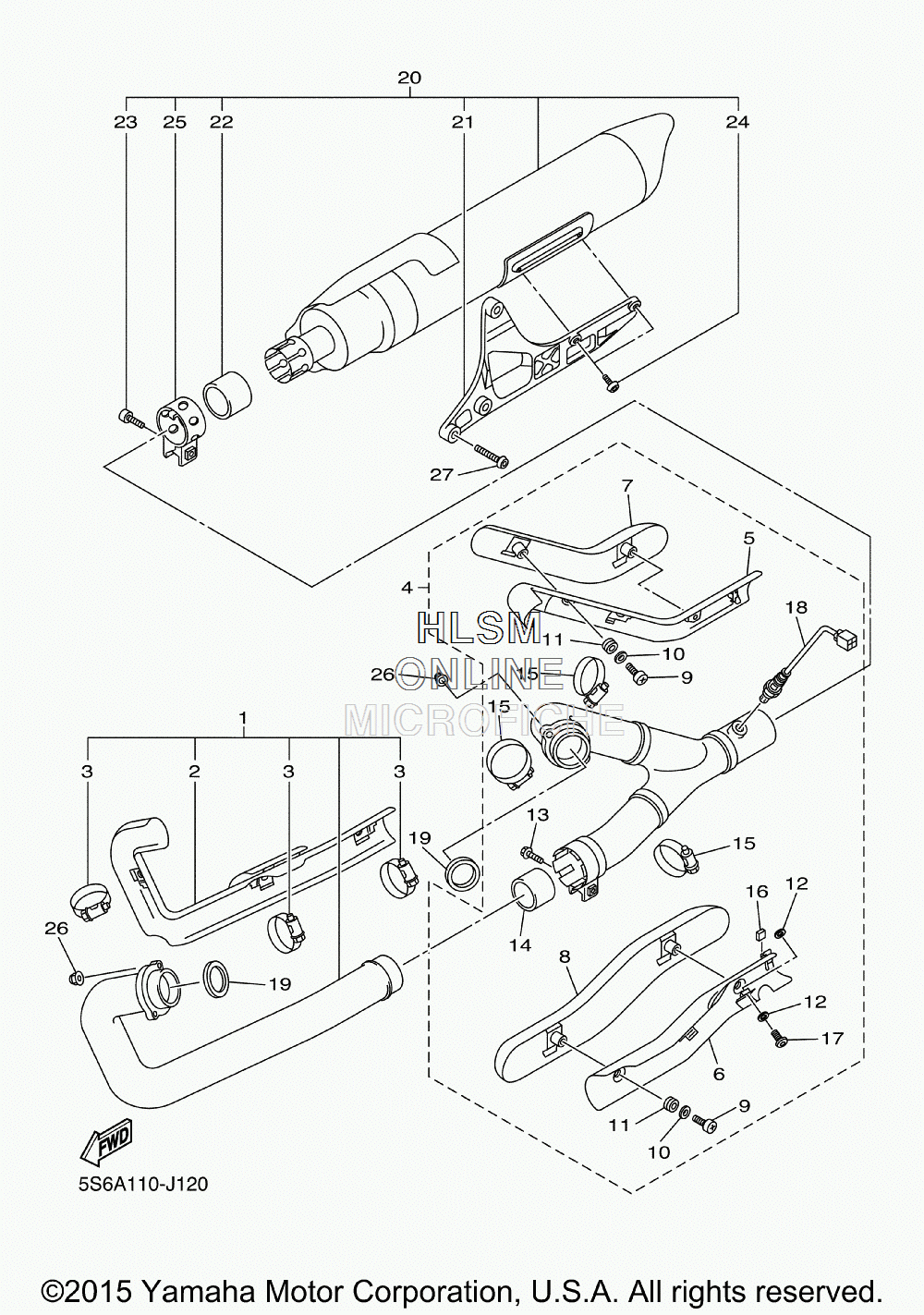

EXHAUST для Yamaha V STAR 1300 DELUXE (WHITE) [XVS13CTFG] - 2016 года выпуска

№

Артикул

Название
1

3D8-14610-20-00 EXHAUST PIPE ASSY 1

EXHAUST PIPE ASSY 1

53 230 ₽
2

3D8-14718-10-00 ...PROTECTOR, MUFFLER 1

...PROTECTOR, MUFFLER 1

47 560 ₽
3

90450-44001-00 ...HOSE CLAMP ASSY

...HOSE CLAMP ASSY

1 880 ₽
4

3D8-14620-20-00 EXHAUST PIPE ASSY 2

EXHAUST PIPE ASSY 2

119 220 ₽
5

3D8-14728-10-00 ...PROTECTOR, MUFFLER 2

...PROTECTOR, MUFFLER 2

41 890 ₽
6

3D8-14738-10-00 ...PROTECTOR, MUFFLER 3

...PROTECTOR, MUFFLER 3

35 430 ₽
7

3D8-14748-10-00 ...PROTECTOR, MUFFLER 4

...PROTECTOR, MUFFLER 4

23 300 ₽
8

3D8-14628-10-00 ...PROTECTOR, EXHAUST PIPE

...PROTECTOR, EXHAUST PIPE

25 190 ₽
9

98980-06012-00 ...SCREW, BIND

...SCREW, BIND

320 ₽
10

90201-064K6-00 ...WASHER, PLATE

...WASHER, PLATE

380 ₽
11

90480-17005-00 ...GROMMET

...GROMMET

840 ₽
12

90201-05015-00 ...WASHER, PLATE

...WASHER, PLATE

470 ₽
13

91314-08035-00 ...BOLT, HEXAGON SOCKET HEAD

...BOLT, HEXAGON SOCKET HEAD

350 ₽
14

5PX-14755-00-00 ...GASKET, SILENCER

...GASKET, SILENCER

2 200 ₽
15

90450-44001-00 ...HOSE CLAMP ASSY

...HOSE CLAMP ASSY

1 880 ₽
16

3MA-24181-00-00 ...DAMPER, LOCATING 1

...DAMPER, LOCATING 1

540 ₽
17

98980-06016-00 ...SCREW, BIND

...SCREW, BIND

340 ₽
18

5D1-8592A-00-00 ...SENSOR, OXYGEN

...SENSOR, OXYGEN

29 920 ₽
19

3EG-14613-00-00 GASKET, EXHAUST PIPE

GASKET, EXHAUST PIPE

890 ₽
20

3D8-14710-20-00 MUFFLER ASSY 1

MUFFLER ASSY 1

0 ₽
21

3D8-14772-00-00 ...STAY, MUFFLER 2

...STAY, MUFFLER 2

25 190 ₽
22

5VY-14714-00-00 ...GASKET, MUFFLER

...GASKET, MUFFLER

1 880 ₽
23

91314-08035-00 ...BOLT, HEXAGON SOCKET HEAD

...BOLT, HEXAGON SOCKET HEAD

350 ₽
24

90111-10006-00 ...BOLT, HEX. SOCKET BUTTON

...BOLT, HEX. SOCKET BUTTON

500 ₽
25

3D8-14715-00-00 ...BAND, MUFFLER

...BAND, MUFFLER

4 400 ₽
26

90176-08006-00 NUT, CROWN

NUT, CROWN

320 ₽
27

90111-10032-00 BOLT, HEX. SOCKET BUTTON

BOLT, HEX. SOCKET BUTTON

810 ₽
