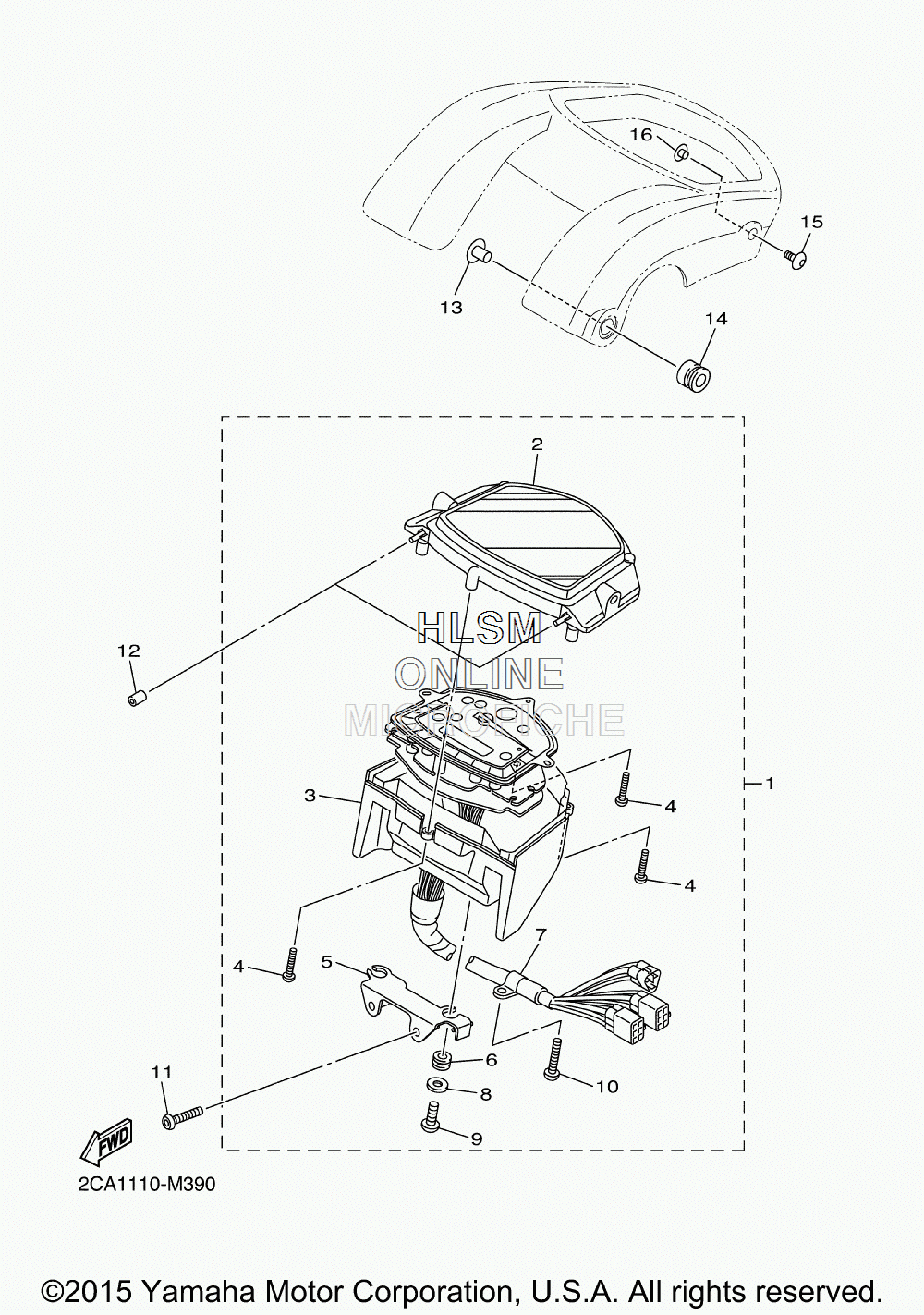

INSTRUMENT PANEL для Yamaha V STAR 1300 DELUXE (WHITE) [XVS13CTFG] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-83500-02-00 METER ASSY (MPH)METER ASSY (MPH)
-
23D8-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
33D8-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
497702-30014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
53D8-83519-00-00 ...BRACKET, METER...BRACKET, METER
-
64XV-83513-00-00 ...DAMPER...DAMPER
-
74HC-83595-00-00 ...CLAMP...CLAMP
-
853Y-83524-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
997702-50016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1097707-40014-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1192012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290445-05004-00 HOSEHOSE
-
1390387-06162-00 COLLARCOLLAR
-
1490480-13020-00 GROMMETGROMMET
-
1590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690387-05035-00 COLLARCOLLAR
