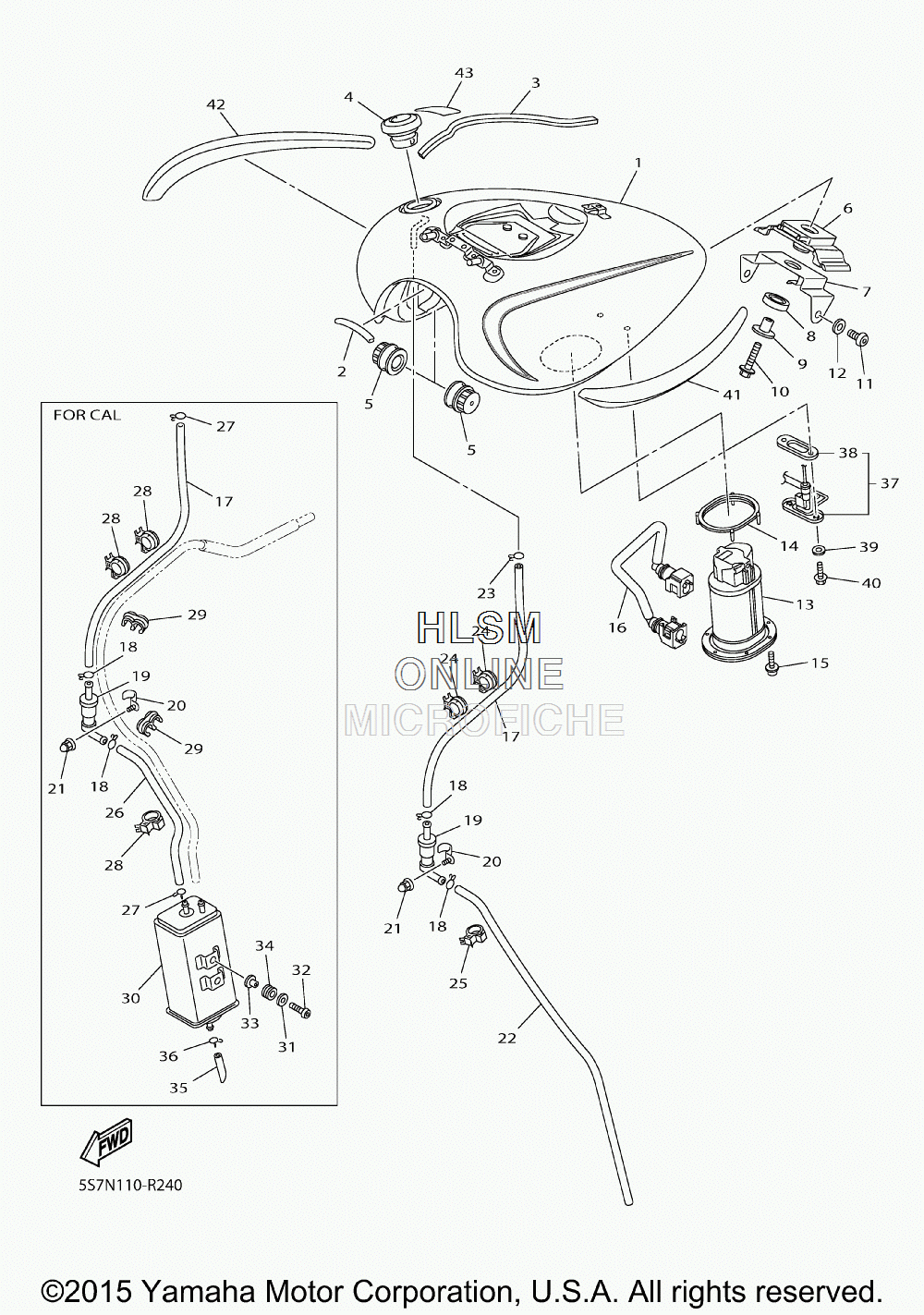

FUEL TANK для Yamaha V STAR 950 [XVS95GL] - 2016 года выпуска
-
№АртикулНазвание
-
15S7-Y2410-00-W7 FUEL TANK COMP. (FOR S3)FUEL TANK COMP. (FOR S3)
-
15S7-Y2410-T0-01 FUEL TANK COMP. (FOR BMC)FUEL TANK COMP. (FOR BMC)
-
24BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
35S7-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
44NK-24602-20-00 CAP ASSYCAP ASSY
-
55S7-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
65S7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
75S7-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
84TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
990387-06177-00 COLLARCOLLAR
-
1095812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1192012-08014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1290201-08M01-00 WASHER, PLATEWASHER, PLATE
-
135S7-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
145VN-24486-00-00 O-RINGO-RING
-
1590110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165S7-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
175S7-24313-00-00 PIPE 3PIPE 3
-
1890467-09103-00 CLIPCLIP
-
195RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
205S7-24136-00-00 CLAMP 2CLAMP 2
-
2190176-05004-00 NUT, CROWNNUT, CROWN
-
2290445-115K4-00 HOSE (L450)HOSE (L450)
-
2390467-09103-00 CLIPCLIP
-
2490464-20191-00 CLAMPCLAMP
-
2590464-10190-00 CLAMPCLAMP
-
265S7-2486A-00-00 PIPE 1 (CALIF ONLY)PIPE 1 (CALIF ONLY)
-
2790467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
2890464-20191-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
2990464-10M57-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
305PX-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
3190201-06023-00 WASHER, PLATE (CALIF ONLY)WASHER, PLATE (CALIF ONLY)
-
3290111-06067-00 BOLT,HEX. SOCKET BUTTON (CALIF ONLY)BOLT,HEX. SOCKET BUTTON (CALIF ONLY)
-
3390387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
3490480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
353D8-24325-00-00 PIPE 14 (CALIF ONLY)PIPE 14 (CALIF ONLY)
-
3690467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
375S7-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
383D8-85753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
-
3990202-05193-00 WASHER, PLATEWASHER, PLATE
-
4095812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
415S7-2416C-00-00 EMBLEM 3D SETEMBLEM 3D SET
-
425S7-2417C-00-00 EMBLEM 3D SETEMBLEM 3D SET
-
431TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
