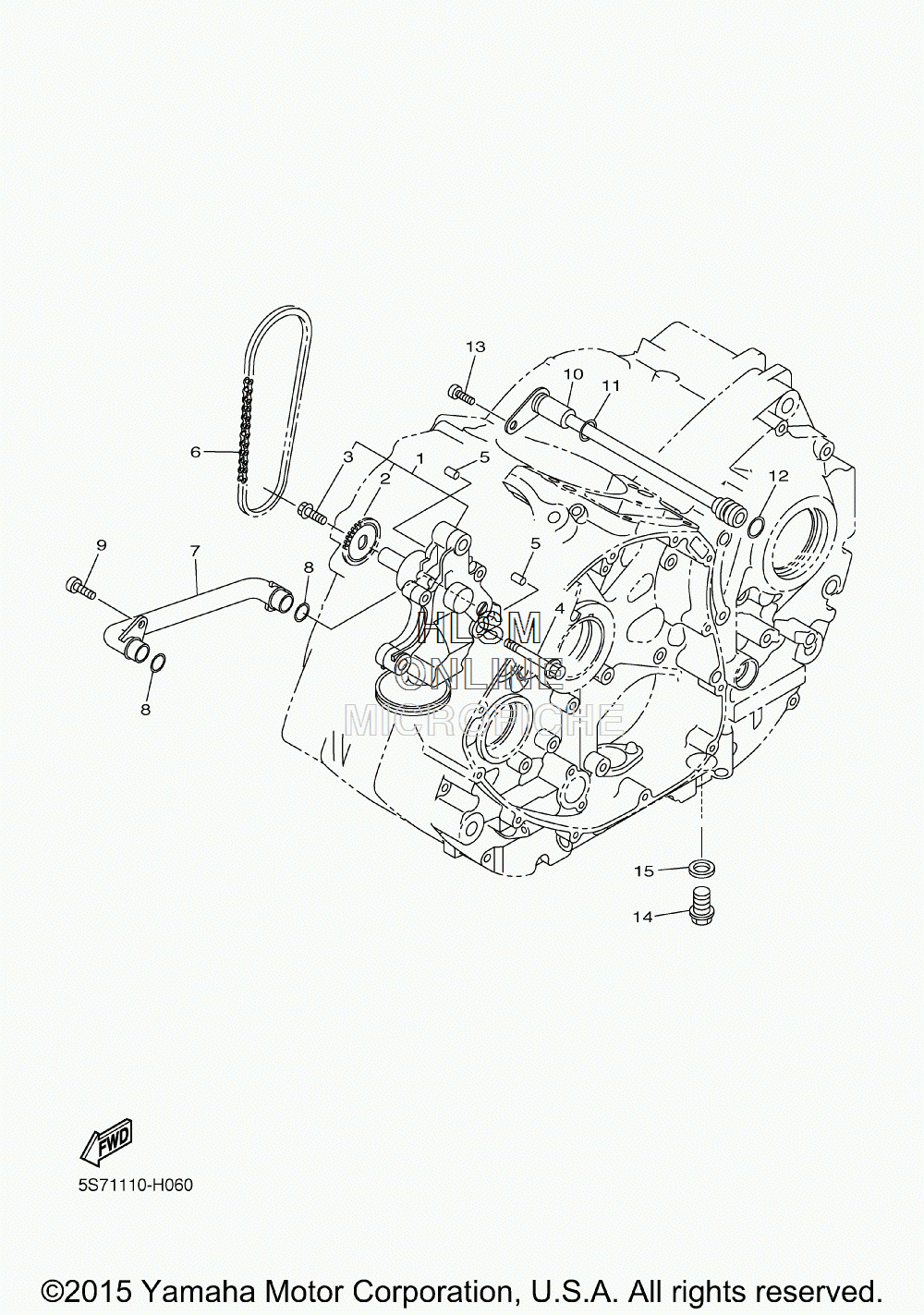

OIL PUMP для Yamaha V STAR 950 [XVS95GL] - 2016 года выпуска
-
№АртикулНазвание
-
15S7-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
23D8-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
390105-06066-00 ...BOLT, FLANGE...BOLT, FLANGE
-
495812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
599530-08012-00 PIN, DOWELPIN, DOWEL
-
694580-25062-00 CHAIN (DID25 62L)CHAIN (DID25 62L)
-
73D8-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
893210-14003-00 O-RINGO-RING
-
990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
105S7-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
1193210-09165-00 O-RINGO-RING
-
1293210-06564-00 O-RINGO-RING
-
1390110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
15214-11198-01-00 GASKETGASKET
