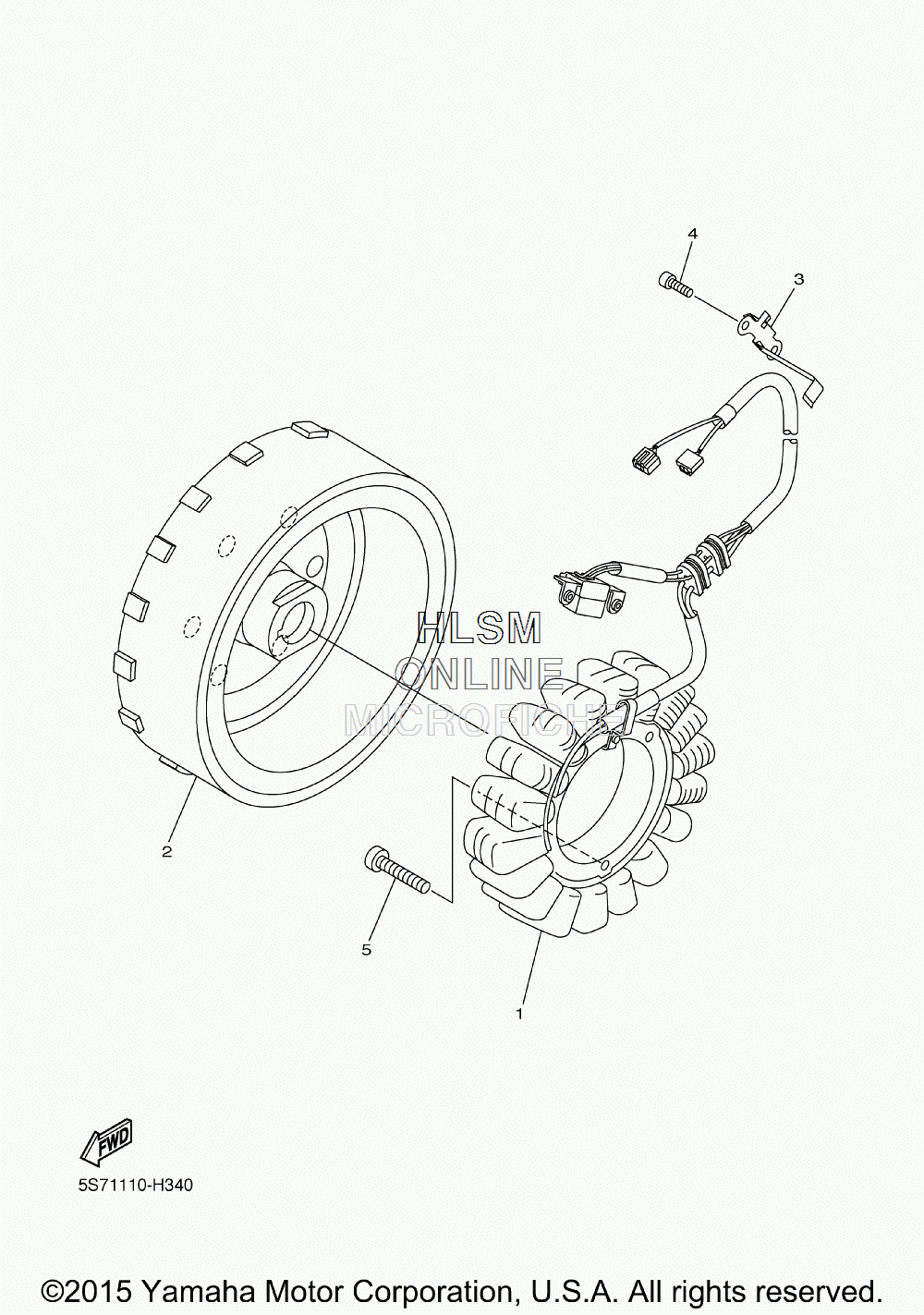

GENERATOR для Yamaha V STAR 950 [XVS95GL] - 2016 года выпуска
-
№АртикулНазвание
-
15S7-81410-00-00 STATOR ASSYSTATOR ASSY
-
25S7-81450-10-00 ROTOR ASSYROTOR ASSY
-
35S7-15484-00-00 CLAMP 2CLAMP 2
-
490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590110-06177-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
