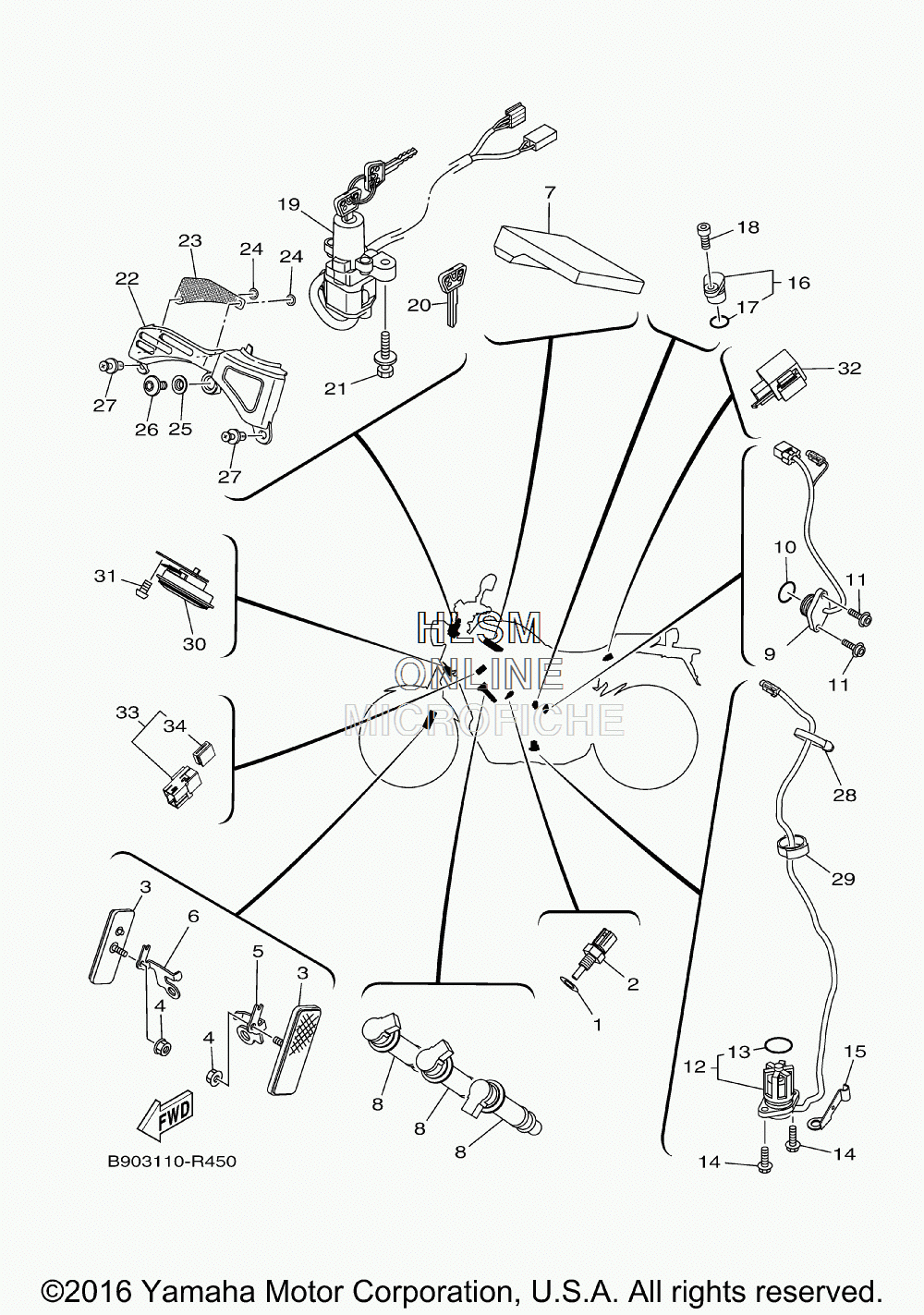

ELECTRICAL 2 для Yamaha XSR900GS [XSR900GS] - 2016 года выпуска
-
№АртикулНазвание
-
190430-10004-00 GASKETGASKET
-
24P9-83591-00-00 THERMO UNITTHERMO UNIT
-
311H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
495702-05500-00 NUT, FLANGENUT, FLANGE
-
51RC-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
61RC-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
7B90-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
81RC-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
91RC-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1093210-21001-00 O-RINGO-RING
-
1190110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
125S7-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
135VY-8A8E0-00-00 ...O-RING...O-RING
-
1495022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1590465-08053-00 CLAMPCLAMP
-
163P6-15399-00-00 PLUG, BLINDPLUG, BLIND
-
1793210-15566-00 ...O-RING...O-RING
-
1890110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
191RC-82501-30-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
204BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
2190109-08195-00 BOLTBOLT
-
22B90-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
23B90-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
2490183-05M02-00 NUT, SPRINGNUT, SPRING
-
2590387-09020-00 COLLARCOLLAR
-
2690111-06090-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2790269-06018-00 RIVETRIVET
-
2890464-13073-00 CLAMPCLAMP
-
2990464-16001-00 CLAMPCLAMP
-
30B90-83371-00-00 HORNHORN
-
3192017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
324C8-83350-10-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
331ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
345JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
