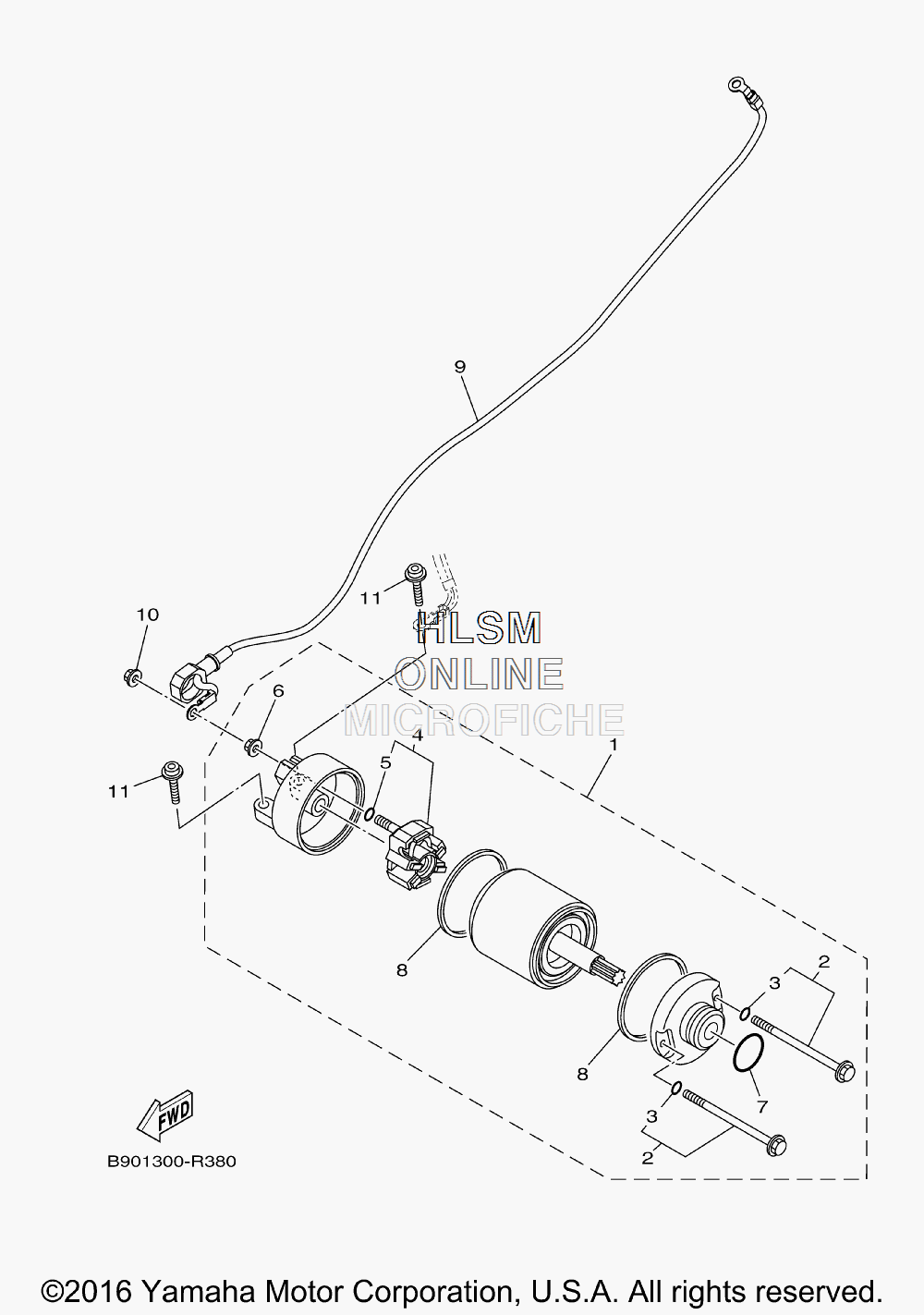

STARTING MOTOR для Yamaha XSR900GS [XSR900GS] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-81890-00-00 MOTOR ASSYMOTOR ASSY
-
228P-81826-00-00 ...BOLT...BOLT
-
33TB-81847-00-00 ......O-RING......O-RING
-
44B5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
53TB-81847-00-00 ......O-RING......O-RING
-
64XV-8182A-00-00 ...NUT...NUT
-
71FK-81847-00-00 ...O-RING...O-RING
-
811H-81844-00-00 ...GASKET...GASKET
-
91RC-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
104XV-8182A-00-00 NUTNUT
-
1190110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
