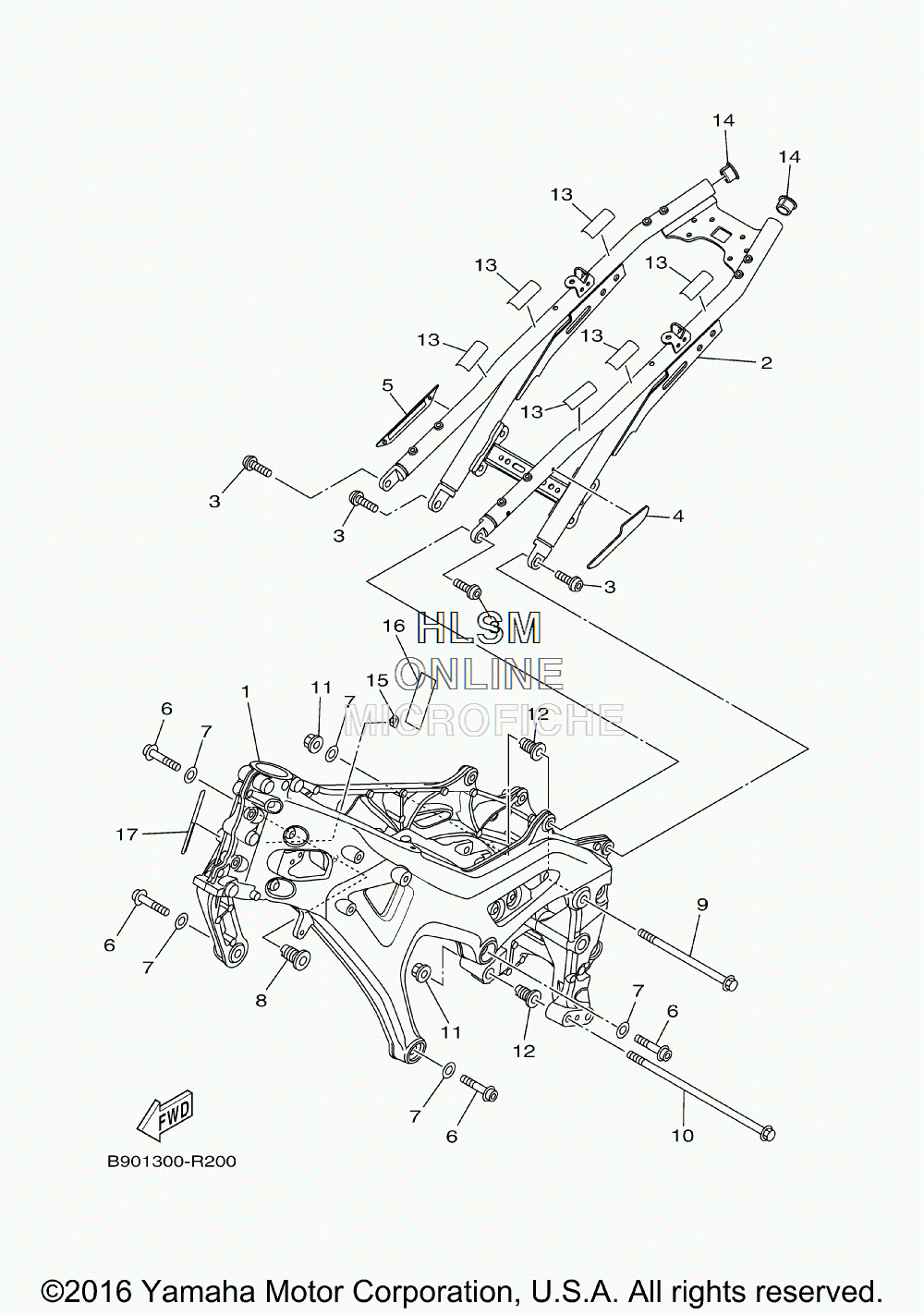

FRAME для Yamaha XSR900GS [XSR900GS] - 2016 года выпуска
-
№АртикулНазвание
-
11RC-21110-40-00 FRAME COMP.FRAME COMP.
-
2B90-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
390149-10059-00 SCREWSCREW
-
41RC-2117X-00-00 COVER 9COVER 9
-
51RC-2117Y-00-00 COVER 10COVER 10
-
690110-10043-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790201-10075-00 WASHER, PLATEWASHER, PLATE
-
81RC-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
990105-10391-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-10437-00 BOLT, FLANGEBOLT, FLANGE
-
1190179-10024-00 NUTNUT
-
124C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
135VN-21268-00-00 SEALSEAL
-
1490338-23172-00 PLUGPLUG
-
155VX-21289-00-00 PLUG, BLINDPLUG, BLIND
-
1634D-82176-00-00 DAMPERDAMPER
-
171RC-2117G-00-00 PROTECTORPROTECTOR
