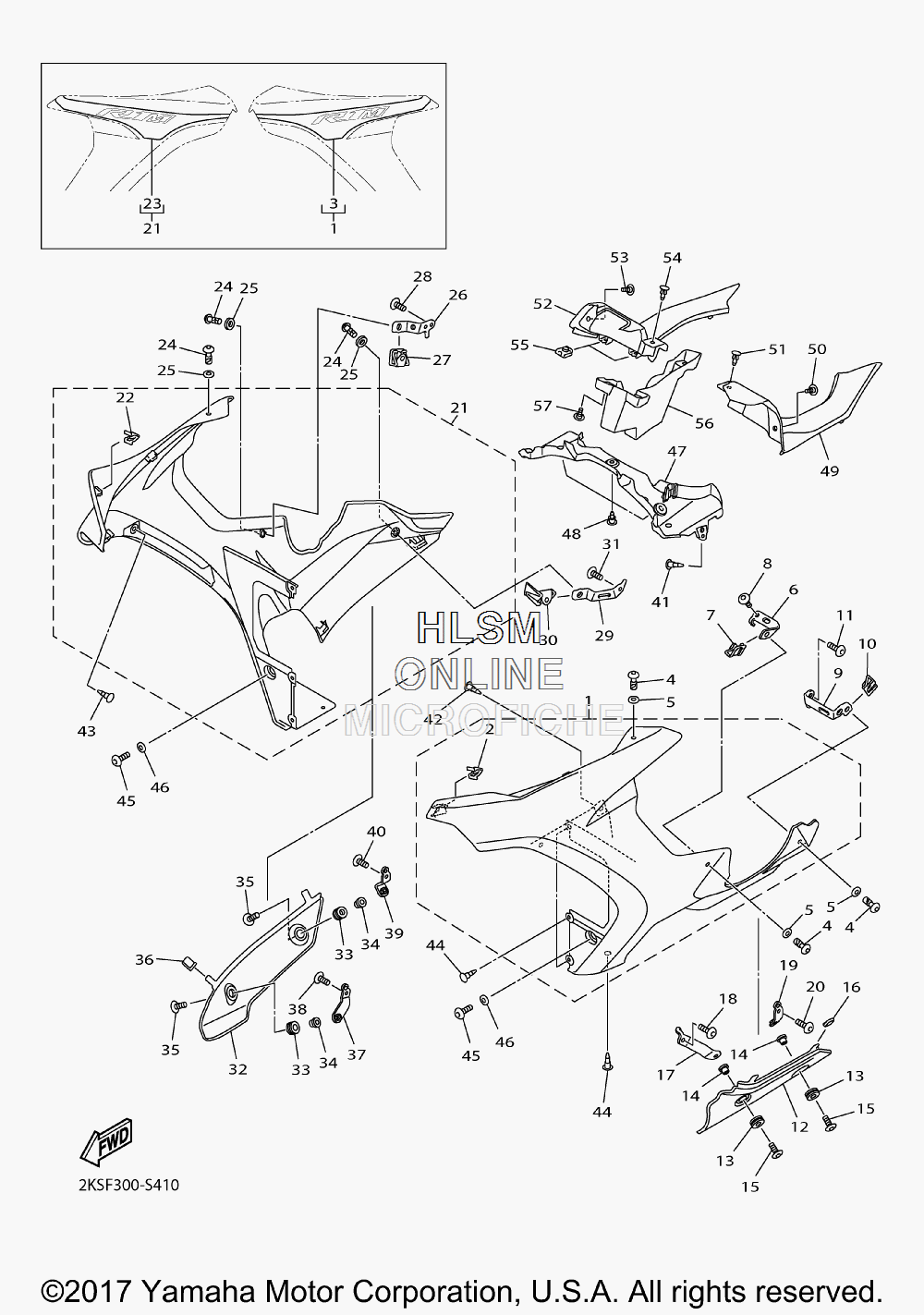

COWLING 2 для Yamaha YZFR1 M - 2017 года выпуска
-
№АртикулНазвание
-
12KS-Y283U-20-1X PANEL ASSEMBLY 1 (BWM2 - WHITE METALLIC)PANEL ASSEMBLY 1 (BWM2 - WHITE METALLIC)
-
290468-040A0-00 ...CLIP...CLIP
-
32KS-28391-10-00 ...GRAPHIC 1...GRAPHIC 1
-
42CR-28386-00-00 HEADHEAD
-
58HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
62CR-2833K-00-00 BRACKET 13BRACKET 13
-
72CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
890111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
92CR-2833L-00-00 BRACKET 14BRACKET 14
-
102CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1190111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
122CR-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
1390480-14477-00 GROMMETGROMMET
-
1490387-06307-00 COLLARCOLLAR
-
1590111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
165PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
172CR-2833R-00-00 BRACKET, 17BRACKET, 17
-
1890111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
192CR-2833T-00-00 BRACKET,18BRACKET,18
-
2090111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
212KS-Y283V-20-1X PANEL ASSEMBLY 2 (BWM2 - WHITE METALLIC)PANEL ASSEMBLY 2 (BWM2 - WHITE METALLIC)
-
2290468-040A0-00 ...CLIP...CLIP
-
232KS-28392-10-00 ...GRAPHIC 2...GRAPHIC 2
-
242CR-28386-00-00 HEADHEAD
-
258HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
262CR-2833M-00-00 BRACKET 15BRACKET 15
-
272CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
2890111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
292CR-2833N-00-00 BRACKET 16BRACKET 16
-
302CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3190111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
322CR-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
3390480-14477-00 GROMMETGROMMET
-
3490387-06307-00 COLLARCOLLAR
-
3590111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
365PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
372CR-2833U-00-00 BRACKET, 19BRACKET, 19
-
3890111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
392CR-2833V-00-00 BRACKET, 20BRACKET, 20
-
4090111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4190269-07077-00 RIVETRIVET
-
4290269-06008-00 RIVETRIVET
-
4390269-07077-00 RIVETRIVET
-
4490269-06008-00 RIVETRIVET
-
4590149-06302-00 SCREWSCREW
-
4690387-06312-00 COLLARCOLLAR
-
472CR-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
4890269-06008-00 RIVETRIVET
-
492CR-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
5090111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5190269-06008-00 RIVETRIVET
-
522KS-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
5390111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5490269-06008-00 RIVETRIVET
-
5590183-05076-00 NUT, SPRINGNUT, SPRING
-
562CR-2838K-00-00 BOX 1BOX 1
-
5790111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
