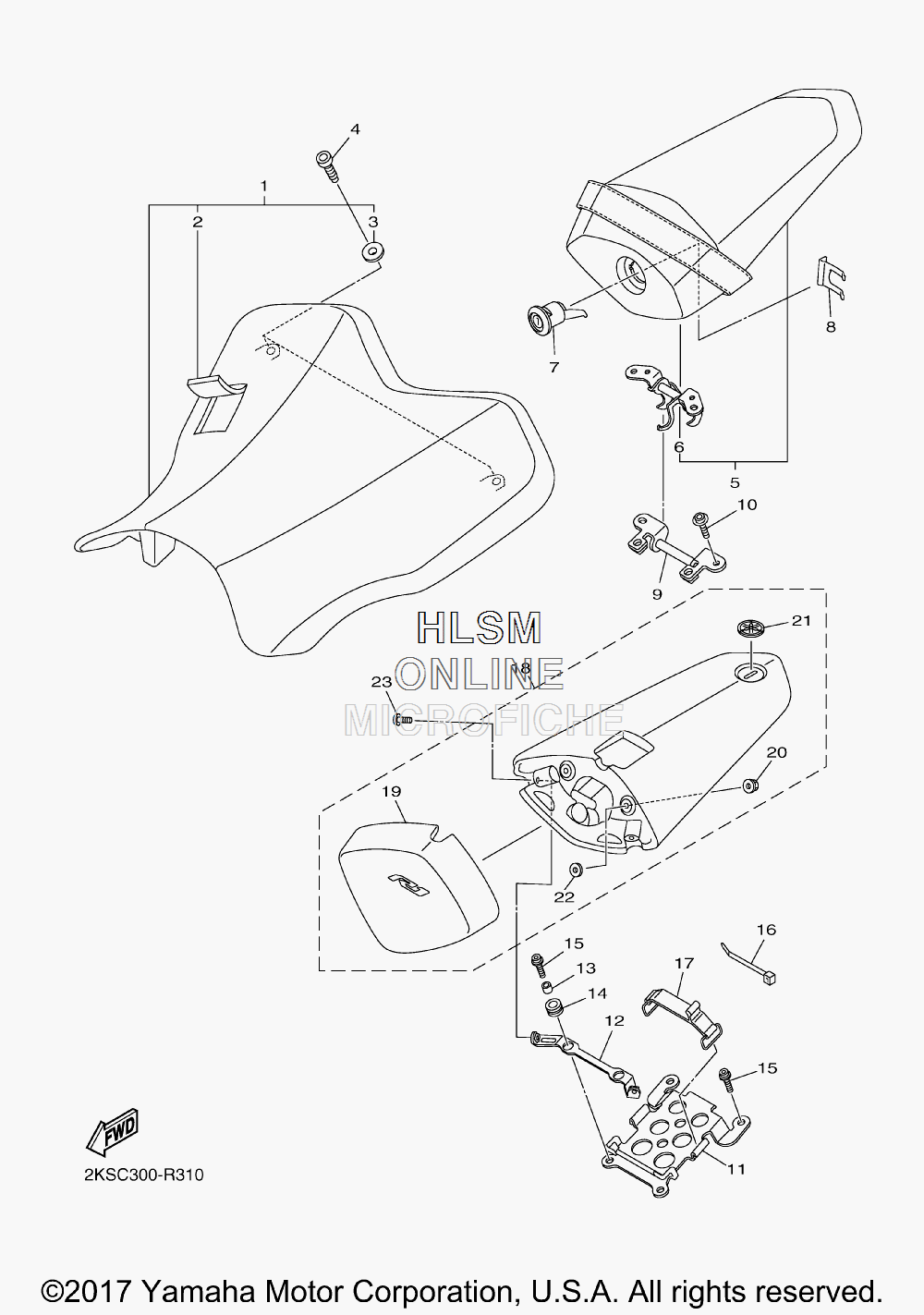

SEAT для Yamaha YZFR1 M - 2017 года выпуска
-
№АртикулНазвание
-
12CR-24710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
22CR-24711-00-00 ...COVER, SINGLE SEAT...COVER, SINGLE SEAT
-
390387-06066-00 ...COLLAR...COLLAR
-
490110-06258-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
52CR-24750-00-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
62CR-2478R-00-00 ...SEAT LOCK COMP....SEAT LOCK COMP.
-
72CR-W2470-00-00 ROTOR SETROTOR SET
-
85VY-2176V-00-00 SPRING, LOCK 2SPRING, LOCK 2
-
92CR-2478X-00-00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1090110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
112KS-2475U-00-00 BRACKET, TAIL COVERBRACKET, TAIL COVER
-
122KS-2475V-00-00 BRACKET, TAIL COVER 2BRACKET, TAIL COVER 2
-
1390387-06023-00 COLLARCOLLAR
-
1490480-12237-00 GROMMETGROMMET
-
1590110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
161UA-82591-00-00 BANDBAND
-
1755K-2811G-00-00 BANDBAND
-
182KS-2477A-00-00 SEAT COVER ASSYSEAT COVER ASSY
-
192KS-24753-00-00 ...CUSHION...CUSHION
-
2095602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
218GC-2836B-02-00 ...TUNING FORK MARK...TUNING FORK MARK
-
2290201-063A5-00 ...WASHER, PLATE...WASHER, PLATE
-
2390149-06250-00 SCREWSCREW
