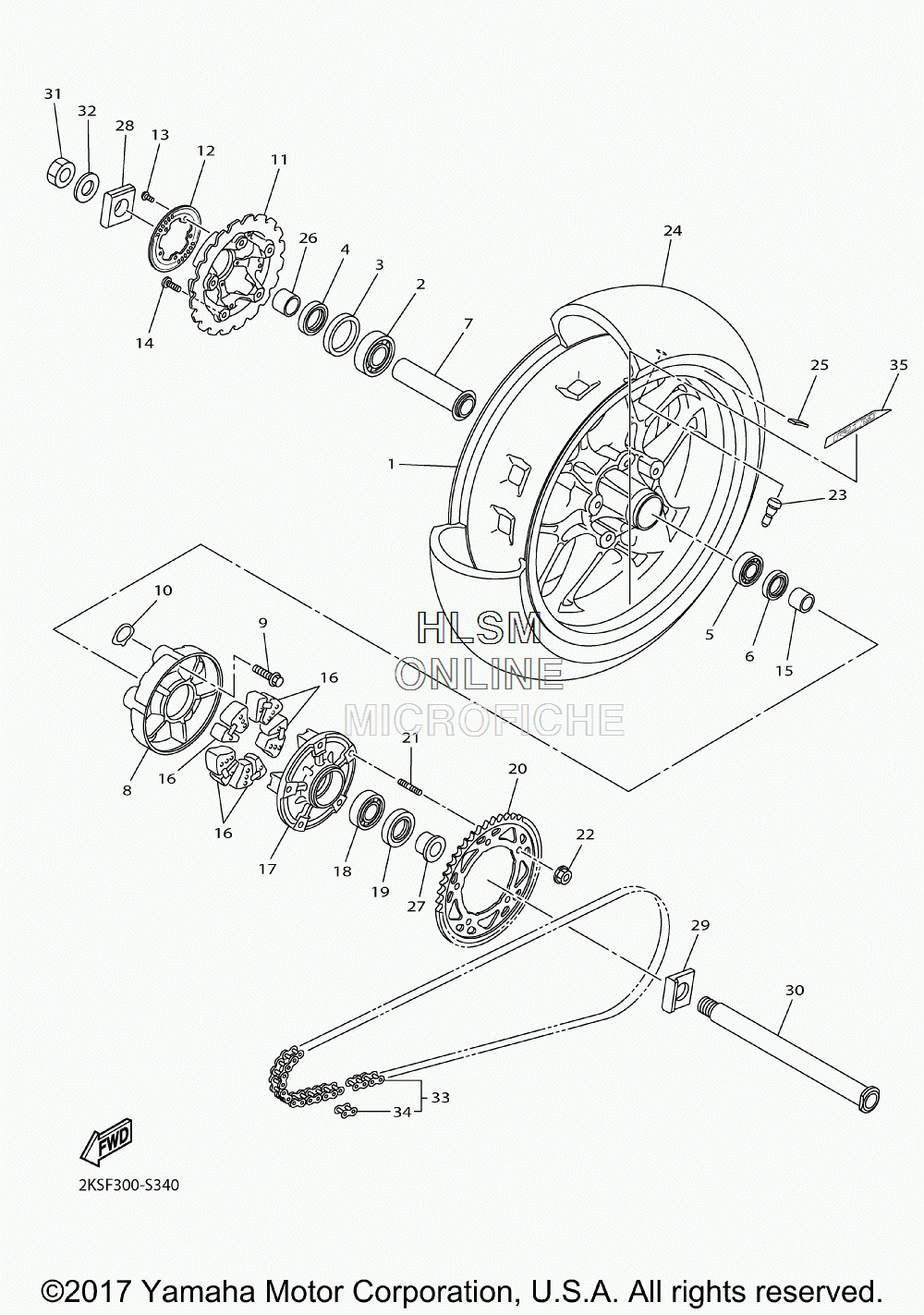

WHEEL - REAR для Yamaha YZFR1 M - 2017 года выпуска
-
№АртикулНазвание
-
12CR-25338-00-P0 CAST WHEEL, REAR (DPBM15 - BLUE METALLIC)CAST WHEEL, REAR (DPBM15 - BLUE METALLIC)
-
293306-27802-00 BEARINGBEARING
-
32CR-2538E-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
493106-40001-00 OIL SEALOIL SEAL
-
593306-07806-00 BEARINGBEARING
-
693106-35042-00 OIL SEALOIL SEAL
-
72CR-253W0-00-00 SPACER ASSYSPACER ASSY
-
82CR-2531F-00-00 HUB 2HUB 2
-
990105-10450-00 BOLT, FLANGEBOLT, FLANGE
-
102CR-25319-00-00 SEAL, HUB DUSTSEAL, HUB DUST
-
112CR-2581A-00-00 PLATE, DISKPLATE, DISK
-
121SD-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
1390149-05029-00 SCREWSCREW
-
1490111-08085-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1590387-28022-00 COLLARCOLLAR
-
162CR-25364-00-00 DAMPERDAMPER
-
172CR-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1893306-20531-00 BEARINGBEARING
-
1993106-40013-00 OIL SEALOIL SEAL
-
202CR-25441-00-00 SPROCKET, DRIVEN (41T)SPROCKET, DRIVEN (41T)
-
2190116-10048-00 BOLT, STUDBOLT, STUD
-
2290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2393900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
2494120-17011-00 TIRE (200/55 ZR17 M/C 78W) (BRIDGESTONE)TIRE (200/55 ZR17 M/C 78W) (BRIDGESTONE)
-
252CR-25398-00-00 BALANCER, WHEEL (5G) (UN)BALANCER, WHEEL (5G) (UN)
-
2690387-28023-00 COLLARCOLLAR
-
2790387-28024-00 COLLARCOLLAR
-
285VY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
295VY-25389-01-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
302CR-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
3190185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3290201-25020-00 WASHER, PLATEWASHER, PLATE
-
3394582-40114-00 CHAIN (DID 525VZ-114LL)CHAIN (DID 525VZ-114LL)
-
3494682-40031-00 ...JOINT, CHAIN (DID525VZ ZJ)...JOINT, CHAIN (DID525VZ ZJ)
-
352KS-251G3-00-00 EMBLEMEMBLEM
