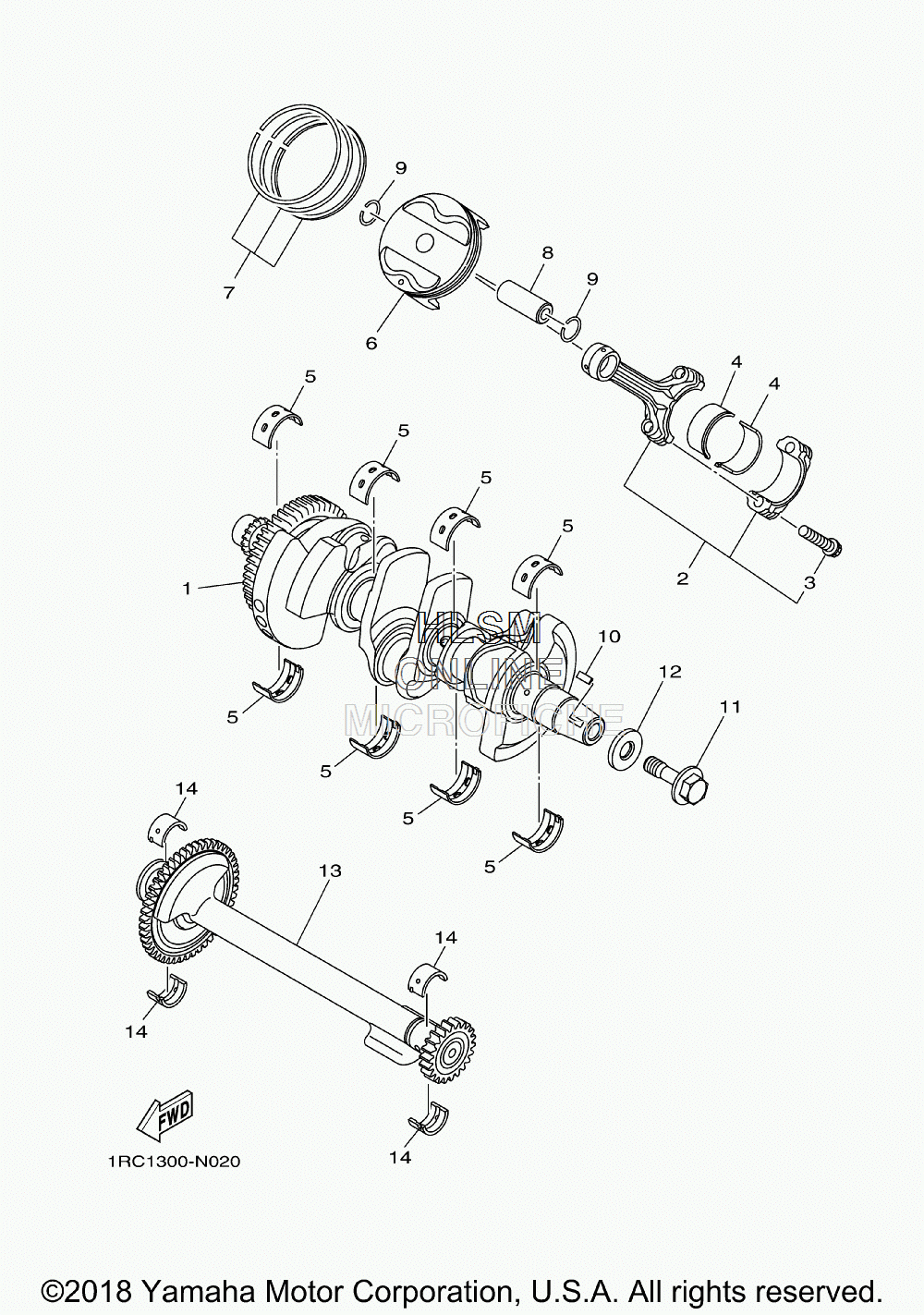

CRANKSHAFT - PISTON для Yamaha MT09 - 2018 года выпуска
-
№АртикулНазвание
-
11RC-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
21RC-11650-01-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
31RC-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
41RC-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
41RC-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
41RC-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
41RC-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
55VY-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
55VY-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
55VY-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
55VY-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
55VY-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
61RC-11631-00-00 PISTON (STD)PISTON (STD)
-
71RC-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
839P-11633-00-00 PIN, PISTONPIN, PISTON
-
993450-18157-00 CIRCLIPCIRCLIP
-
1090280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
1190105-126A8-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-12008-00 WASHER, PLATEWASHER, PLATE
-
131RC-11500-00-00 BALANCER ASSYBALANCER ASSY
-
142S3-11413-00-00 METAL, BALANCE WEIGHT (BLUE)METAL, BALANCE WEIGHT (BLUE)
-
142S3-11413-10-00 METAL, BALANCE WEIGHT (BLACK)METAL, BALANCE WEIGHT (BLACK)
-
142S3-11413-20-00 METAL, BALANCE WEIGHT (BROWN)METAL, BALANCE WEIGHT (BROWN)
-
142S3-11413-30-00 METAL, BALANCE WEIGHT (GREEN)METAL, BALANCE WEIGHT (GREEN)
-
142S3-11413-40-00 METAL, BALANCE WEIGHT (YELLOW)METAL, BALANCE WEIGHT (YELLOW)
