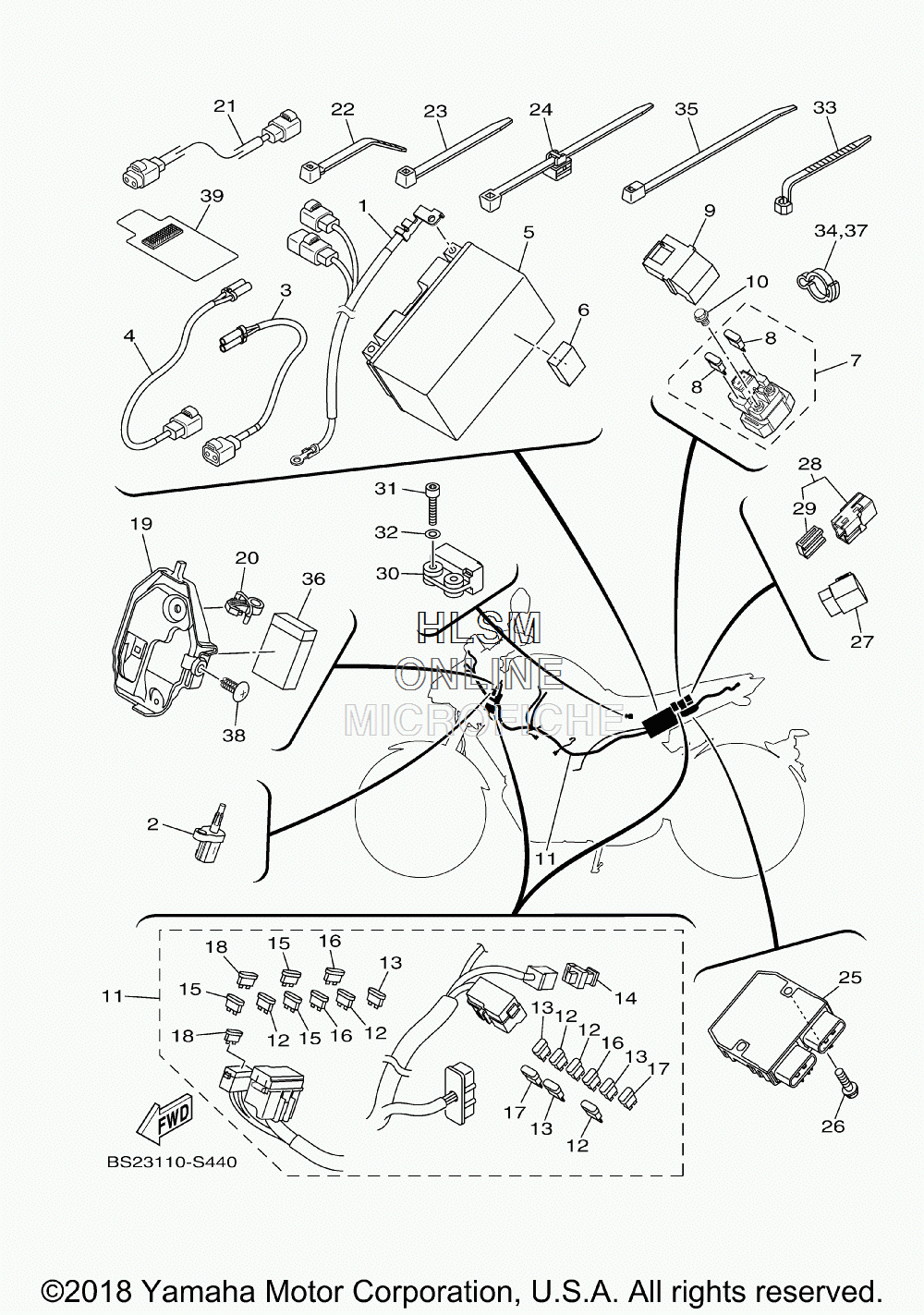

ELECTRICAL для Yamaha MT09 - 2018 года выпуска
-
№АртикулНазвание
-
1BS2-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
25YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
31RC-82309-01-00 WIRE, SUB LEADWIRE, SUB LEAD
-
41RC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
55VY-82100-00-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
64D3-8252R-00-00 DAMPERDAMPER
-
71RC-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
842X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
95SL-82119-30-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1095022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
11BS2-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
125JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
135JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
145JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
155JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
165JJ-82151-80-00 ...FUSE (2A-BL)...FUSE (2A-BL)
-
175JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
185JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
191RC-82599-00-00 COVER, CONNECTERCOVER, CONNECTER
-
2090464-15157-00 CLAMPCLAMP
-
21BS2-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
2290465-10098-00 CLAMPCLAMP
-
2390464-16061-00 CLAMPCLAMP
-
2490464-45007-00 CLAMPCLAMP
-
251D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2695022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
275VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
281ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
295JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
305PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3191312-04020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3290201-04030-00 WASHER, PLATEWASHER, PLATE
-
3390464-13073-00 CLAMPCLAMP
-
3490464-14010-00 CLAMPCLAMP
-
3590464-20022-00 CLAMPCLAMP
-
361RC-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
3790464-16001-00 CLAMP (EXCEPT CALIF)CLAMP (EXCEPT CALIF)
-
3790464-14010-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
3890269-07015-00 RIVETRIVET
-
392D1-82589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
