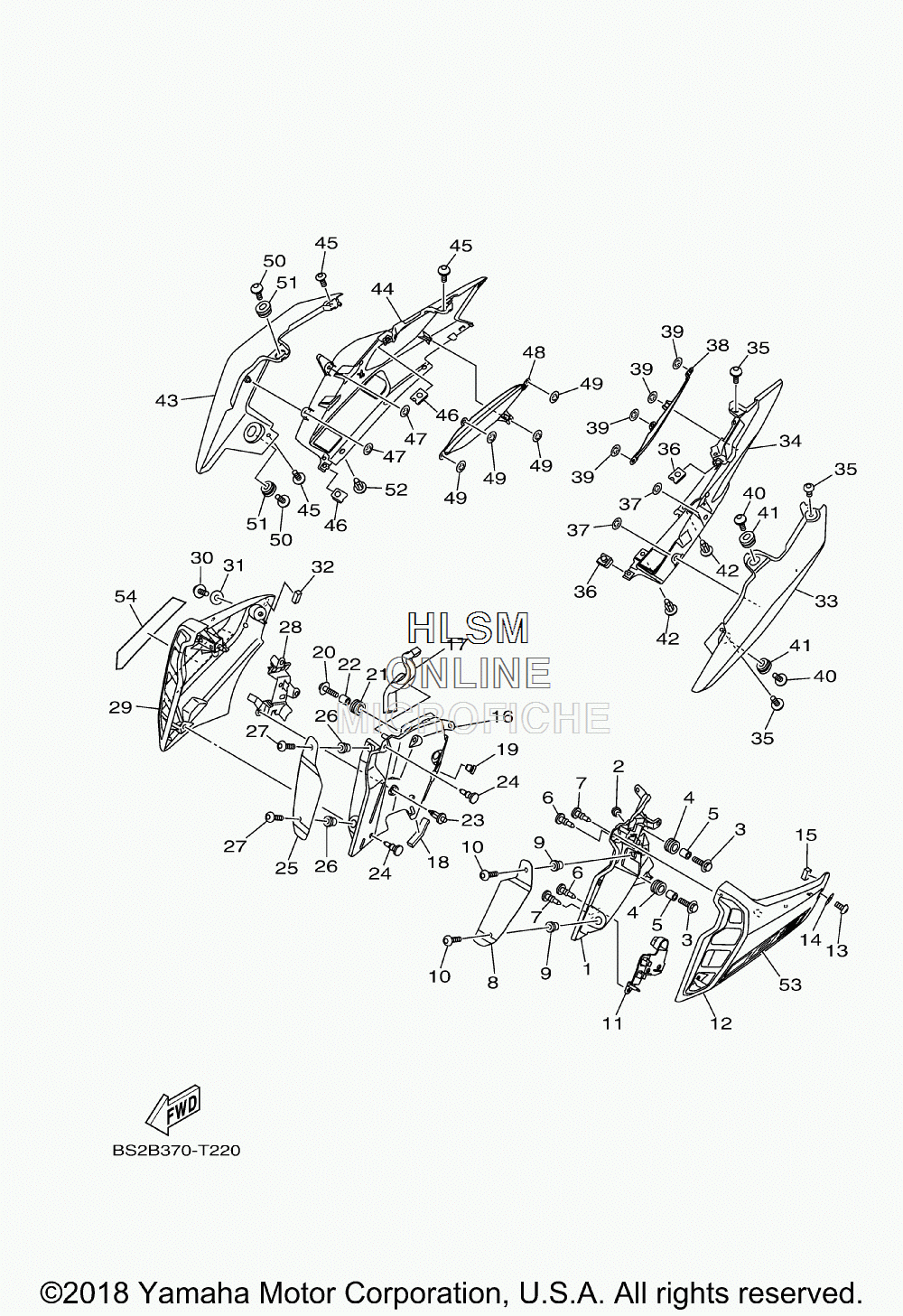

SIDE COVER для Yamaha MT09 - 2018 года выпуска
-
№АртикулНазвание
-
1BS2-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
290338-06018-00 PLUGPLUG
-
390119-06267-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490480-14003-00 GROMMETGROMMET
-
590387-06057-00 COLLARCOLLAR
-
690269-06008-00 RIVETRIVET
-
790269-06001-00 RIVETRIVET
-
8BS2-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
990179-06520-00 NUTNUT
-
1090111-06146-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
11BS2-8336T-00-00 HOLDER 1HOLDER 1
-
12BS2-2137W-00-P0 SCOOP, AIR 1 (MBL2 - MAT BLACK)SCOOP, AIR 1 (MBL2 - MAT BLACK)
-
1390111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490202-05180-00 WASHER, PLATEWASHER, PLATE
-
151RC-21747-00-00 DAMPERDAMPER
-
16BS2-2174E-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
1790520-10022-00 DAMPER, PLATEDAMPER, PLATE
-
1890520-10003-00 DAMPER, PLATEDAMPER, PLATE
-
1990338-06018-00 PLUGPLUG
-
2090119-06267-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190480-14003-00 GROMMETGROMMET
-
2290387-06057-00 COLLARCOLLAR
-
2390269-06008-00 RIVETRIVET
-
2490269-06001-00 RIVETRIVET
-
25BS2-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
2690179-06520-00 NUTNUT
-
2790111-06146-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
28BS2-8336U-00-00 HOLDERHOLDER
-
29BS2-2137X-00-P0 SCOOP, AIR 2 (MBL2 - MAT BLACK)SCOOP, AIR 2 (MBL2 - MAT BLACK)
-
3090111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05180-00 WASHER, PLATEWASHER, PLATE
-
321RC-21747-00-00 DAMPERDAMPER
-
33BS2-21711-00-P6 COVER, SIDE 1 (VRC1 - VIVID RED)COVER, SIDE 1 (VRC1 - VIVID RED)
-
33BS2-21711-00-P2 COVER, SIDE 1 (MBL2 - MAT BLACK FOR MNM3 - GRAY)COVER, SIDE 1 (MBL2 - MAT BLACK FOR MNM3 - GRAY)
-
33BS2-21711-00-P0 COVER, SIDE 1 (MDNM6 - MAT DARK GRAY)COVER, SIDE 1 (MDNM6 - MAT DARK GRAY)
-
34BS2-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
3590111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3690183-05076-00 NUT, SPRINGNUT, SPRING
-
3790183-05M02-00 NUT, SPRINGNUT, SPRING
-
38BS2-2171Y-00-00 GRILLE, SIDE COVER 1GRILLE, SIDE COVER 1
-
3990183-05M02-00 NUT, SPRINGNUT, SPRING
-
4090109-06037-00 BOLTBOLT
-
4190480-01559-00 GROMMETGROMMET
-
4290269-07007-00 RIVETRIVET
-
43BS2-21721-00-P6 COVER, SIDE 2 (VRC1 - VIVID RED)COVER, SIDE 2 (VRC1 - VIVID RED)
-
43BS2-21721-00-P2 COVER, SIDE 2 (MBL2 - MAT BLACK FOR MNM3 - GRAY)COVER, SIDE 2 (MBL2 - MAT BLACK FOR MNM3 - GRAY)
-
43BS2-21721-00-P0 COVER, SIDE 2 (MDNM6 - MAT DARK GRAY)COVER, SIDE 2 (MDNM6 - MAT DARK GRAY)
-
44BS2-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
4590111-05002-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4690183-05076-00 NUT, SPRINGNUT, SPRING
-
4790183-05M02-00 NUT, SPRINGNUT, SPRING
-
48BS2-2172Y-00-00 GRILLE, SIDE COVER 2GRILLE, SIDE COVER 2
-
4990183-05M02-00 NUT, SPRINGNUT, SPRING
-
5090109-06037-00 BOLTBOLT
-
5190480-01559-00 GROMMETGROMMET
-
5290269-07007-00 RIVETRIVET
-
53BS2-2173E-50-00 GRAPHIC 1 (MNM3 - MAT GRAY)GRAPHIC 1 (MNM3 - MAT GRAY)
-
53BS2-2173E-00-00 GRAPHIC 1 (MDNM6 - MAT DARK GRAY)GRAPHIC 1 (MDNM6 - MAT DARK GRAY)
-
53BS2-2173E-60-00 GRAPHIC 1 (VRC1 - VIVID RED)GRAPHIC 1 (VRC1 - VIVID RED)
-
54BS2-2173F-00-00 GRAPHIC 2 (MDNM6 - MAT DARK GRAY)GRAPHIC 2 (MDNM6 - MAT DARK GRAY)
-
54BS2-2173F-60-00 GRAPHIC 2 (VRC1 - VIVID RED)GRAPHIC 2 (VRC1 - VIVID RED)
-
54BS2-2173F-50-00 GRAPHIC 2 (MNM3 - MAT GRAY)GRAPHIC 2 (MNM3 - MAT GRAY)
